Brilliantopto Co., Limited >> Outdoor P10 LED Programmable Display

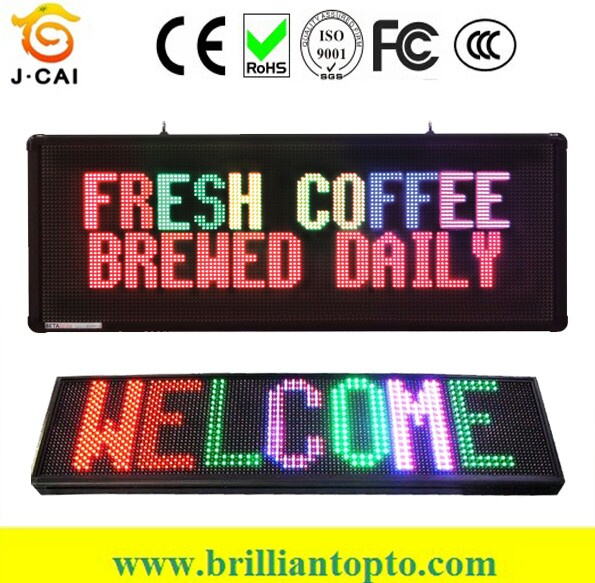

Outdoor P10 LED Programmable Display

Outdoor P10 LED Programmable Display
Price: US $ 222-239/Piece
Trade Terms: FOB,EXW
Min Order: 1piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: P10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Chip Spec: DIP346
Control Mode: Synchronous Control
Scan Mode: 1/4 Contant Current
Life Span: 100, 000h
LED Chip: Epistar
Module Size: 320*160mm
Brightness: More Than 2500CDS/Sqm
View Distance: 10-150m
View Angle: V110 Degree, H90 Degree
Working Temperature: -20°c±50°c
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Display Function: Text Display
Average Power Consumption: 220W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Shopping Guide
Certification: ISO9001:2008
Pixel Configuration: 1r

Product Description

√ Own Factory  == √ FOB Competitive Price (customer only need pay for the truck fee, the rest our company share) == √Good news (our company price will be adjusted price in every 1 or 2 months ) == √Quality Control == √Short Delivery Time == √Own Technology

Product info
1. P3\P4\P5\P6...indoor full color led display;
2. P10/P12/P12.5/P16/P20/P25...outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
                                            Brilliant Optoelectronic Technology Co., Ltd

Add: Inside Shenzhoutong, Jiangnan Hi-tech Industrial Park, Nanhuan Road, Licheng District,
QuanzhouCity, China
                                   Contact Person: mary
                                                            EXW Price
Indoor

Itemsize(mm)Pixel Density
(dots/m2)
Resolution
(dots)
Brightness
(cd/m2)
Scan
Mode
Unit Price
 (USD/PC)
P10320*1601000032*16≥10008S11.09
P7.62244*2441722232*32≥120016S16.21
P6192*1922777732*32≥140016S13.31
P5320*1604000064*32≥150016S25.42
P4256*1286250064*32≥200016S25.45
P3192*9611111164*32≥220016S27.13
P2.5160*8016000064*32≥220016S36.76
P1.9200*150277008104*78≥220026S473.2
Outdoor Full Color

P6 SMD192*1922777732*32≥60008S43
P6 DIP192*1922777732*32≥6500~70004S56.5
P8 SMD256*1281562532*16≥80004S25.3
P8 DIP256*1281562532*16≥65004S21
P10 DIP320*1601000032*16≥60004S19
P10 DIP160*1601000032*167000~75004S11.2
P16256*256390616*16≥6800Static21.16
Outdoor Dual Color & Single Color

P10 1R320*1601000032*16≥28004S6
P10 1W320*1601000032*16≥90004S7.16
P10 1G320*1601000032*16≥87004S7.16
P10 1Y320*1601000032*16≥25004S7.16
P10 1B320*1601000032*16≥26004S7.16
P10 1R1G320*1601000032*16≥4500~50004S12.5
Note:
1. Indoor Unit price/Pcs including the magnet+data cable+power cable
2. Outdoor Full color Unit price/Pcs including the Screw+waterproof ring+power cable+data cable
3. Spare parts: R/G/B LED lamp and driving IC


HD Control card info
                                                             Price list of HD Card

Item

Type

Price(usd)

                   Control range

ConnectorFunction
single colordual colorseven colorfull
color

Full color
Asynchronous
HD-C176.6


384*128 512*192   640*641 ea 50pin1. Asynchronous Full Color,support single/dual color ,gray0-65536 adjust;
2. Support voice input, U disk can Unlimited expansion
HD-C3115


384*256  512*192 640*128
PlayerA601211


800*6002 ea 50pinSynchronous and asynchronous control card systems
A602253


1280*768
Receiving CardHD-R50026.5


128*256
USB HD-A40K101024*48512*48

3 ea hub12
1.communicate way: USB
2.Support turn off by schedual
3.8pcs separate partition,200 program
4.Support frame,time,temperature, timekeeping,caption,background animation,WordArt,cross display and so on

HD-A40S
5.85384*32192*32


1ea hub08
2 ea hub12

HD-A40
7.5768*32/1024*16384*32/768*16


1ea hub08
2 ea hub12

HD-Q40
11.67512*64/1024*32/1536*16256*64/512*32/768*16336*32/672*16

2 ea hub08
4 ea hub12

HD-U40
16.672048*40/1280*64/640*1282048*16/640*64/320*1281664*16/832*32/416*64

4 ea hub08
8 ea hub12

Serial interface+USB
HD-A41101024*32512*32/1024*16


1 ea hub08
2 ea hub12

1.communicate way: USB+Serial port
2.Support turn off by schedual
3.5pcs separate partition,200 program
4.Support frame,time,temperature, timekeeping,caption,background animation,WordArt,cross display and so on
5.supoort many language
6.support second time exploitation

HD-Q41
14.17768*64/1024*48/1536*32384*64/512*48/1536*165112*32/1024*16

2 ea hub08
4 ea hub12

HD-U41
201280*128/1696*96/2048*64640*128/1280*64/2048*32848*64/1689*32/2048*16

4 ea hub08
8 ea hub12

HD-X40
25640*256/1280*128/2048*64320*256/640*128/2048*32424*128/2048*16
1 ea 50pin
HD-X41301024*256/2048*128/3072*64512*256/1024*128/2048*64672*128/1344*64
HD-X43401024*512/2048*256/4096*128512*512/1024*256/4096*64672*256/2048*80
ineternet+USBHD-E4015.85640*64/832*48/1280*32320*64/640*32/1280-161360*32/2048*16

2 ea hub08
4 ea hub12 (take 2 ea hub75)

1.communicate way: Internet+USB
2.Support turn off by schedual
3.8pcs separate partition,200 program
4.Support frame,time,temperature, timekeeping,caption,background animation,WordArt,cross display and so on
5.support Local area network cluster management

HD-E41
23.35768*128/1024*96384*128/512*96/1536*321360*64/2048*32

4 ea hub08
8 ea hub12

HD-E42
31.671024*256/2048*128512*256/1024*128672*128/2048*32
1 ea 50pin
HD-E4343.351024*512/4096*128512*512/4096*64672*256/2048*80
2 ea 50pin
EH-E5353.352048*512/4096*2561024*512/2048*2561344*256/2720*128
2 ea 50pin
WIFI ControlHD-W4040640*256 1280*128 1696*96 2048*64320*256 416*48 640*32 1280*16848*32 1696*16
2 ea hub08 4eahub12
(take 1 ea hub75)
1.communicate way: WIFI+U disk(support display seven color); 2. support WIFI control
HD-W4248.33640*256 1280*128 1696*96 2048*64320*256 640*128 1280*64 2048*32424*128 848*64 1698*32 2048*16
1 ea 50pin


Our service

1). Price: we have the best competitive High Cost-effective of Price/ features.

2). Automatic: From selecting LED chip, led encapsulation, PCB soldering, LED module, are operated by Automatic machine, improve showing effect of led screen.

3). Quality: From material to product finished, from design to produce, all steps are controlled by our workshop, that's the guarantee of the reliability.
Especially we have the strictly 24 hours old ageing test to ensure the quality of the products.

4). Service: Warranty is up to 2 years, Service time is 24hours x 7 days.


 A great news

 This month we adjusted the price for full color module,
it is lower than before. Then it is maybe necessary for you to know.
Let me know which item you are intereted in,
 I can offer it and we can first have a trial order for you to check our quality.
 i will send the indoor and outdoor full color modules price to you.
 We can talk futher, I also will send the our company info
 such as price adjusted and develop the new produts to you in the future.

Thanks for your time,welcome to contact us for more informations.
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.

In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.

Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.

Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.

Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
