Prod Model: |
P10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
DOT Pitch: |
10mm |
Module Dimension: |
160*160mm |
Module Resolution: |
16*16 |
DOT Density: |
10000 |
Brightness: |
7500CD |
LED Specification: |
1r1g1b |
Pixel Configuration: |
DIP346 |
Driving IC: |
Jxi5020 |
Scan Mode: |
1/4scanning |
LED Lamp Brand: |
Epistar |
Display Type: |
LED Video Display |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Application: |
Advertising |
Pixel Configuration: |
1R, 1G, 1B |
Pixel Pitch: |
10mm |
Display Function: |
Video Display |
Scanning Mode: |
1/4 Scan |
Certification: |
ISO9001,IP65,FCC |
Pixel Density: |
10000 dot / m² |
Average Power Consumption: |
350W / m² |
Product Description
Outdoor Full Color LED Display (P10 advertising LED Display Screen)/LED sign/LED wall

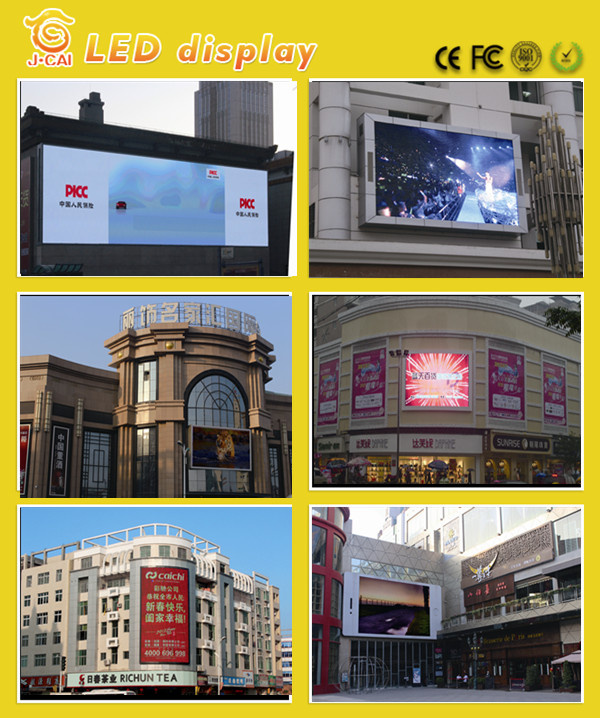

1. Full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising led display, outdoor led display, indoor led display)
2. P10 Outdoor LED display Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 120degree / elevation angle 90degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
3. Description: LED Display /led display screen/LED sign/LED video wall
1). Model No.: P8mm, P10m, P12mm, P13.33mm, P16mm, P20mm(DIP LED)
2). Display Color: 256*256*256
3). LED Chips: Epistar, Opto, Silan, Taiwan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Chenglian Power Supply, fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
7). Guarantee: 2 year with parts
Ability(Brilliantopto Led Display)
Integration of industrial chain
Advanced Technology
Large-scale, standardized Production
Custom Design
Cost Control
Qualification
8 years design and manufacture full color display experience
Classic projects all over the world that would be time-tested
Certification(Brilliantopto Led Display)
FCC certification
CE certification
ROHS certification
ISO9001 certification
IP65 certification
3C certification
Market
Advertising Media
Stadium
Scenery
Pixel Pitch |
10mm |
Module Size(W×H) |
160mm*160mm |
Module Resolution(W×H) |
16*16dots |
Pixel Density |
10,000 (dots/ m2) |
Lamp Origin |
Epistar |
Pixel Configuration |
1R1G1B |
Led Specification |
DIP346 |
Gray Level/ Color |
65536 lever /16.7M |
Brightness |
≥7,000cd/m2 |
Best view angle |
Horizon: 120° Vertical : 90° |
Control method |
Synchronous |
Scanning method |
1/4 constant current |
Power consumption |
Average: 540w/m2 Max : 800w/m2 |
Best viewing distance |
8~150m |
Lifespan |
≥100,000 H |
MTBF |
≥10,000H |
Frame frequency |
≥60HZ |
Refresh frequency |
≥300HZ |
System Working Temperature |
–20°C ~ 50°C |
System Working Humidity |
10 ~ 95%RH |
Power |
5V/40A |
Module weight |
830g/pcs |
Brightness control lever |
0 ~ 100 lever |
Maintenance way |
Rear access |
Environment temperature |
-40°C ~ +85°C |
Suitable voltage |
DC5V |
Spending card |
kilomega network card |
Video signal |
PAL/NTSC |
Working voltage |
220V±10% |
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
