| Prod Model: |
P16 mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
256 Mm X 128 Mm |
| Cabinet Size: |
960mm X 960mm X150mm |
| Operation: |
Suppot 3G / 4G , WiFi |
| Brightness: |
More Than 6500CD |
| Warranty Time: |
2 Years |
| Applcation Place: |
Stage , Outdoor Advertisement |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
Static Scan |
| Average Power Consumption: |
220W / m² |
| Pixel Density: |
3906 |
Product Description

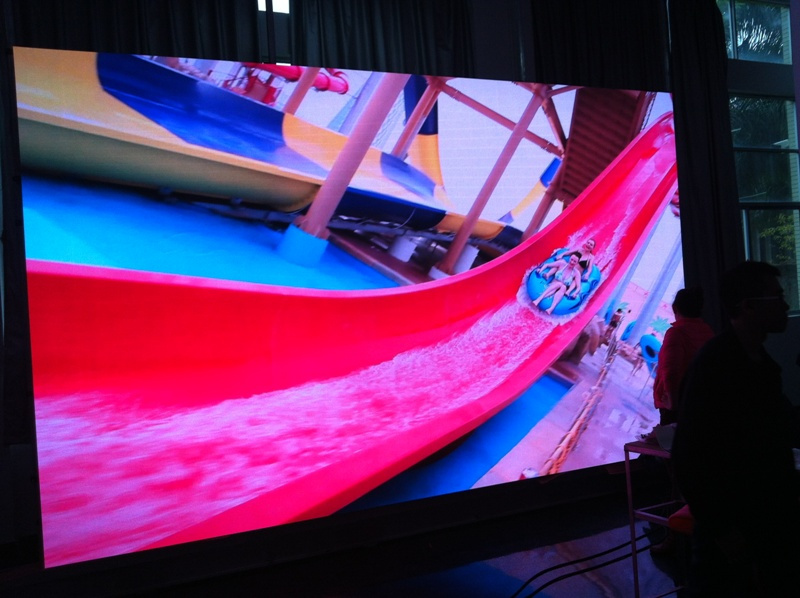

Outdoor Full Color LED Display (P16 advertising LED Display Screen)/LED sign/LED wall
1. full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display)
2. P16 Outdoor LED display Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
3. Description:LED Display /led display screen/LED sign/LED video wall
1). Model No.: P10m, P12mm, P14mm, P16mm, P18mm, P20mm, P25mm, P31.25mm, P40mm, P50mm(DIP LED)
2). Display Color: 256*256*256
3). LED Chips: Nichia, Cotco, CREE, AXT, Taiwan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
7). Guarantee:2 year with parts
P16 Outdoor Full Color LED Display /LED screen/LED sign/LED video wall
Outdoor Full Color LED Display (P16 advertising LED Display Screen)/LED sign/LED wall
1. full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display)
P16 Outdoor Full Color LED Display /LED screen/LED sign/LED video wall
| Numbers | Technical indexes | Specification |
| 1 | Pixel Pitch | 16mm |
| 2 | Density of Pixel | 3906dots/M2 |
| 3 | Pixel configuration | RGB |
| 4 | Size of Single Board | 384mm X 192mm |
| 5 | Colors | 16777216 |
| 6 | Best Viewing Distance | ≥6m |
| 7 | Horizontal Viewing Angle | 140° |
| 8 | Maximum Power Consumption | 300W/m2 |
| 9 | Brightness | 1800nits/m2 |
| 10 | Gray Scale | 15 bits per color |
| 11 | Color Temperature | 8500cd/m2 |
| 12 | Control Method | synchronization &
Asynchronization |
| 13 | Driving method | constant scanning |
| 14 | Frame Frequency | 60Hz |
| 15 | Refresh frequency | ≥480Hz |
| 16 | Working Voltage | AC220V/110±10% |
| 17 | IP grade | IP67 |
| 18 | Working temperature | 10 degree centigrade ~ +80 degree centigrade |
| 19 | Computer operation system | Win 98/ Win XP/ Win 2000/winme/win7 |
| 20 | Brightness adjustment | 256 grade manual, 8 grade automatic |
| 21 | Video signal | RF, S-Video, RGB, RGBHV, YUV, YC.ect |
| 22 | Software | LED play software |
| 23 | MTBF | More than 10000 hours |
| 24 | Life Span | 100,000 hours |
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
