| Prod Model: |
ZRD-Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Work principle:
Along with the oil field automatic continuouly improve,the pneumatic instrument and pneumatic actuator applicatioin amount rapidly increase which are one of the main methods as automation.For this reason,we need high quality intrustment air source.The oil,moisture,dust from instrument ail source increase the inner corrosion of pipe and the formation of pollutants directly endanger important element as diaphragm of pneumatic instrument,constant orifice,hozzle flapper.,etc.
Purification equipment is the dedicated device which is used for oil air compressor to remove oil and moisture.When the air compressor produce gas which contain a lot of moisture and oil, the pipe is easy to freeze especially in the cold day,so it influences the drilling rate.

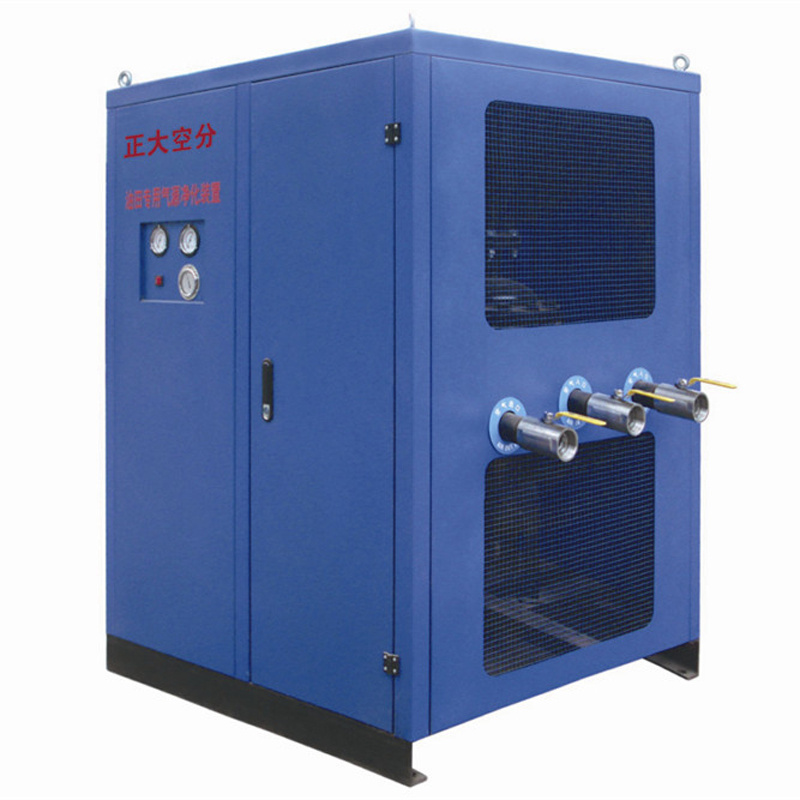

Oil field special used air purifying device manufactured by our company is skid-mounted box type which owns hoisting point on the top and widely opened door beside.It is convenience to move, install and maintain.The purifying device is deviled into two series products: the basic unit and high performance unit.
Oil field special used air purifying device consists high efficiency oil-moisture separator and high temperature freeze dryer.It owns the good function of oil-gas separation.
Technical data:
Air capacity:6~20Nm3/min
Work pressure:1.0MPa
Input air temperature:≤85ºC
Dew point: ≤-23ºC
Dust particle size:≤0.1μm
Pressure loss: ≤0.02Mpa
Cooled type: air-cooled
Installation environment: Installation with shed indoor or outdoor
Package:
Founded in 2005, located in Hangzhou, covered an area of 35000 square meters with beautiful surroundings, ZHENGDA is the biggest manufacturer in Hangzhou city Zhejiang Province specializing in nitrogen generator, oxygen generator, air compressor, dryer machine., etc.
Our products are usually used on industrial, chemical, car tyres, food, pharmaceutical, SMT, heat treatment, metal deep processing, float glass, coal mine and so on. In the past years, we cooperated with many clients in domestic and overseas. For example, CNOOC(China National Offshore Oil Corporation), CASC(China Aerospace Science and Technology Corporation), Sinopec Group, CNPC(China Petroleum), MCC, CHALCO, CARLSBERG., etc.
We pay attention to quality and understanding of performance. We can turn brilliant ideas into outstanding products and always achieve the expectation you want with the performance you need.
Zhejiang Zhengda Air Separation Equipment Co, . Ltd. Is a high new enterprise with national key support which specializing in PSA air separation equipment, cryogenic air separation equipment and compressed air purification equipment. It is located in Fuyang Changkou Industrial Zone, Hangzhou, occupying an area of 33, 500 square meters and having 39 R&D technicians. The company focuses on technological and product innovation with science and technology as its driving force. By cooperating with many scientific research institutions and universities and colleges, the company has brought into being a unique scientific research center and built technology R&D department which centers on R&D of new product and has been qualified Zhejiang Provincial R&D Center since 2009. The company has achieved 18 national patents among which 11 are listed as provincial key new products and 2 are listed as nati fund program, Zhengda Air Separation has been awarded Hangzhou Famous Trademark.
Zhejiang Zhengda Air Separation Equipment Co, . Ltd. has been a leader in PSA and compressed air purifying industry with its consistent endeavor. Zhengda will provide you perfect service with best quality and lowest energy consumption relying on outstanding nergy conservation concept. Today world economic situation is becoming more and more daunting and competition form is becoming more and more complicated because of informatization and globalization, while Zhengda people has adhered to management concept " take technology as forerunner and quality as life; Seek recognition with honesty and profits with management" all the time.
Zhengda people has been united tightly and innovated consistently to become a modern enterprise with high tech, high quality and high efficiency. We hope to create a brighter future with all friends.
