OEM Mini Network Camera with FCC and CE Approved (BQL/FeX39-10/N)

OEM Mini Network Camera with FCC and CE Approved (BQL/FeX39-10/N)
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: BQL/FeX39-10/N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor: 1/4" Sony CCD
Lens: 3.8-38mm
OSD: Full -Screen Chinese / English Menu
Optical Zoom / Digital Zoom: Optical Zoom 10X / Optional 10X
Main Functions 1: Support The Mobile Phone for Remote Monitoring
Main Functions 2: Support 3G Network Transmission
Main Functions 3: Support WiFi Wireless Transmission, Support Networ
Main Functions 4: Support Front-End SD Card for Memory
Sensor: CCD
Feature: Awb,Mask,Dnr,Strong Light Inhibition,Mirror
Technology: Pan / Tilt / Zoom
Horizontal Resolution: 480tvl
Type: PTZ IP Camera
Style: Mini IP Camera
Kind: Auto/Manual

Product Description

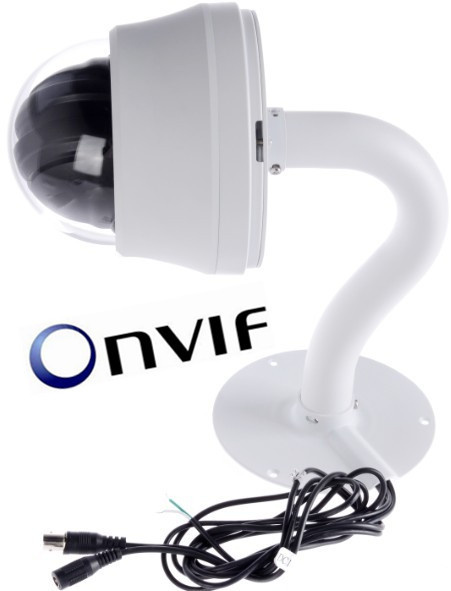

Protruly IPmini 4 inch high speed dome Network Camera

Special function: Support the mobile phone for remote monitoring, Support 3G network transmission, WiFi wireless transmission, network search function and WEP/WPA/WPA2 cipher mode,
, front-end SD card for memory. AWB, MASK, DNR, Strong light inhibition, Mirror, 8 languages, take high-performance DSP to realize complete digital and ultra-high speed focus function

Protruly Network Camera Key Features:
1. Support D1, 2CIF, CIF, QCIF, (704*576, 704*288, 352*288, 176*144) resolution;
2. Support H. 264, MJPEG image compression encoding;
3. Support PTZ control, alarm I/O, two-way Talkback, third-class user rights, with perfect functions;
4. Support any PTZ protocol; It can definite PTZ protocal document to upgrade and update;
5. Two-way voice Talkback, support external audio input and output;
6. Complete network protocol, support RTSP, VLC(PS/TS) Media Protocol;
7. Support the mobile phone for remote monitoring;
8. Support 3G network transmission;
9. Support WiFi wireless transmission, support network search function and support WEP/WPA/WPA2 cipher mode;
10. Support front-end SD card for memory

Protruly Network Camera Operating system: Windows2000server/professional/XP
Network protocol: TCP/IP
Client PC: P4/128MRAM/40GHD/video card support zoom/DirectX8.0+

Protruly Network Camera Advantage:
> Mini high speed dome camera, Metal double cover.
> Use high quality components, high&minute sub-step into TV, long life Conductive slip ring, High-quality belts, Stable operation, high reliability.
> Stable running, none dithering under any speed.
> Cover use high intension Aluminum material, with defend impact, shielding and heat dissipation function.
> Internal setting data not lose when electronic cut.
> Triple lightning protection technology, effectively raising the speed dome mine and anti-jamming capability.
> It uses all-digital control, simple and ingenious design, discretional quickly locate and continuous follow-up scan, it has automatic tracking function, make smart surveillance of all-round, non-blind spot, Can automatically adapt to the environment and target distance changes in light and dark.
> Level of 360 ° Rotation, a precision stepper motor drive, smooth operation, accurate positioning
> built-in full-screen OSD menu, compatible with a variety of control protocols, baud rate is adjustable

Focal length / rotation speed automatic matching technique:
Manual adjustment, in long focal length situation, high speed reflect makes image quickly move when a slight touch of joystick, resulting a data loss. Based on a humanized design, the PTZ camera can automaticly adjust horizontal and vertical rotation speed according to focal length, so that manual operation is simple and easy to track targets.

Features of Sony EFFIO-E:
1/3 "Sony EX-VIEW HAD II CCD with high-quality and high- sensitivity. Up to 650 tvl of horizontal resolution, high-definition images, excellent low light performance.
A. Range of AWB. Is 1.8 ~ 10K, it can monitor environment with a variety of shine.
B. Digital WDR...Excellent color reproduction (ATR Auto Levels adaptation).
C. 2D DNR...In the case of low light, obtained clean and delicate images.
D. 8 language OSD menu, powerful, high brightness compensation, strong light inhibition.
4" mini IP intelligent high speed dome series (Fseries)
Key Features:
1.Support D1, 2CIF, CIF, QCIF,(704*576 \ 704*288 \ 352* \ 176*144) resolution;
2.Support H.264, MJPEG image compression encoding;
3.Support PTZ control, alarm I/O, two-way Talkback, third-class user rights, with perfect functions;
4.Support any PTZ protocol ; it can definite PTZ protocal document to upgrade and update;
5.Two-way voice Talkback, support external audio input and output;
6.Complete network protocol, support RTSP, VLC ( PS/TS )  Media Protocol;
7.Support the mobile phone for remote monitoring;
8.Support 3G network transmission;
9.Support WIFI wireless transmission, support network search function and support WEP/WPA/WPA2 cipher mode;
10.Support front-end SD card for memory

System :
Operating system :  Windows2000server/professional/XP
Network protocol: TCP/IP
Client PC : P4/128MRAM/40GHD/video card support zoom/DirectX8.0+
Madel No. BQL/FeX39-10/N
Image Sensor 1/4" SONY CCD
Signal Model   PAL/NTSC
Horizontal Resolution   480TVL
Effective Pixel  PAL:500(H)X582(V)  NTSC:510(H)X492(V)
Minimum Illumination  0.001Lux-0.05Lux,  Color to B/W
Application Environment Indoor
Installation way Ceiling Mount
Housing protection IP50
S/N Radio  ≥ 50dB ( enhanced )
Filter  single filter, IR sensor
Backlight Compensation  On/Off
White Balance  Auto
Electronic Shutter  PAL:1/50~1/10000 seconds,   NTSC:1/60~1/12000 seconds
Lens 3.8-38mm
Optical zoom  10X
Digital zoom Optional  10X
Focus Auto/manual  , take high-performance DSP to realize complete digital and ultra-high speed focus function.
Preset  255
Pattern scan  4 groups , each can record 200 actions
Tour scan  4 groups ,every group have16 presets can join cruise,can setting the presets'residence time
Other Scan  4 groups, support horizontal scan, deuce area scan, scan random
Rotation Range   Horizontal & Vertical    Min 0.01°/s,   Max  300°/s
Rotation Speed   Horizontal & Vertical    Min 0.01°/s,   Max  300°/s
Camera protocols supported SONY or Samsung
Communications  RS485, PELCO D, PELCO P
Baud Rate  2400/4800/9600/19200
Dome address 255
Camera menu 8 languages
OSD Whole screen Chinese/English menu
Special function  AWB,MASK,DNR,Strong  light inhibition,Mirror
Compression standard Video: H.264/MJPEG                                    Audio: G.711
Output code rate Video: 32K ~ 4Mbps/1M ~ 16Mbps                 Audio: 64Kbps
Image Image size :704*576 ; 704*288 ; 352*288 ; 176*144;704*480 ; 704*240 ; 352*240                                     Frame Rate: 1-30f/s                     Image Setting : Brightness,contrast,saturation,hue,Exposal control
Function Support: Mobile phone monitoring / Two-way Talkback for optional / Video frequency / Audio frequency /  Motion detection /  Area shield /  SD Card local storage for optional /  With WIFI for optional (it is optional to use high power WIFI module) / With 3G module for optional / With POE power supply for optional / Serial interface / Alarm interface
Network protocol PPPoE \ DHCP \ TCP/IP \ HTTP \ UDP \ RTP/RTCP \ RTSP \ UPNP \ SMTP \ FTP \ SIP \ DDNS \ DNS
Video frequency One-way video input
Audio frequency  One-way linear audio input/output; one-way microphone input; one-way earphone output
Serial interface 1 for input and 1 for output
Alarm interface 1 RS-232 interface (for parameter setting, equipment maintenance and transparent transmission)                  1 RS-485 interface (for PTZ control or transparent transmission)
Power Supply  DC12V/1.5A
Material  Aluminum shell
Work Environment  -20 Celsius degree~+50  Celsius degree  (select temperature control accessories),  < 95%RH
