Prod Model: |
BQL/FeX39-10/N |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Image Sensor: |
1/4" Sony CCD |
Lens: |
3.8-38mm |
OSD: |
Full -Screen Chinese / English Menu |
Optical Zoom / Digital Zoom: |
Optical Zoom 10X / Optional 10X |
Main Functions 1: |
Support The Mobile Phone for Remote Monitoring |
Main Functions 2: |
Support 3G Network Transmission |
Main Functions 3: |
Support WiFi Wireless Transmission, Support Networ |
Main Functions 4: |
Support Front-End SD Card for Memory |
Sensor: |
CCD |
Feature: |
Awb, Mask, Dnr, Strong Light Inhibition, Mirror |
Technology: |
Pan / Tilt / Zoom |
Horizontal Resolution: |
480tvl |
Type: |
PTZ IP Camera |
Style: |
Mini IP Camera |
Kind: |
Auto/Manual |
Product Description

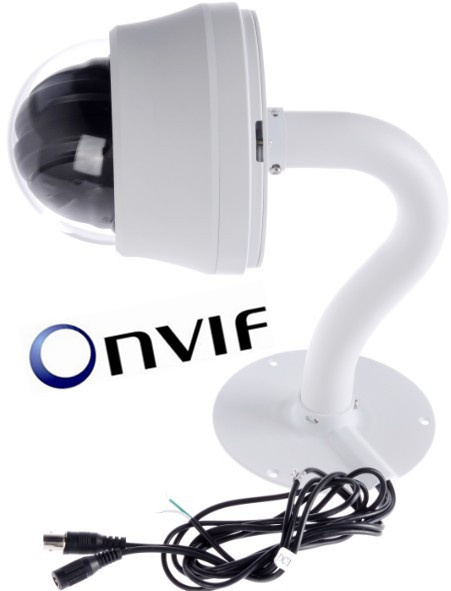

Protruly Network IP Camera
Special function: Support the mobile phone for remote monitoring, Support 3G network transmission, WiFi wireless transmission, network search function and WEP/WPA/WPA2 cipher mode,
, front-end SD card for memory. AWB, MASK, DNR, Strong light inhibition, Mirror, 8 languages, take high-performance DSP to realize complete digital and ultra-high speed focus function
Protruly Network IP Camera Key Features:
1. Support D1, 2CIF, CIF, QCIF, (704*576, 704*288, 352*288, 176*144) resolution;
2. Support H. 264, MJPEG image compression encoding;
3. Support PTZ control, alarm I/O, two-way Talkback, third-class user rights, with perfect functions;
4. Support any PTZ protocol; It can definite PTZ protocal document to upgrade and update;
5. Two-way voice Talkback, support external audio input and output;
6. Complete network protocol, support RTSP, VLC(PS/TS) Media Protocol;
7. Support the mobile phone for remote monitoring;
8. Support 3G network transmission;
9. Support WiFi wireless transmission, support network search function and support WEP/WPA/WPA2 cipher mode;
10. Support front-end SD card for memory
Protruly Network IP Camera Operating system: Windows2000server/professional/XP
Network protocol: TCP/IP
Client PC: P4/128MRAM/40GHD/video card support zoom/DirectX8.0+
Protruly Network IP Camera Advantage:
> Mini high speed dome camera, Metal double cover.
> Use high quality components, high&minute sub-step into TV, long life Conductive slip ring, High-quality belts, Stable operation, high reliability.
> Stable running, none dithering under any speed.
> Cover use high intension Aluminum material, with defend impact, shielding and heat dissipation function.
> Internal setting data not lose when electronic cut.
> Triple lightning protection technology, effectively raising the speed dome mine and anti-jamming capability.
> It uses all-digital control, simple and ingenious design, discretional quickly locate and continuous follow-up scan, it has automatic tracking function, make smart surveillance of all-round, non-blind spot, Can automatically adapt to the environment and target distance changes in light and dark.
> Level of 360 ° Rotation, a precision stepper motor drive, smooth operation, accurate positioning
> built-in full-screen OSD menu, compatible with a variety of control protocols, baud rate is adjustable
Focal length / rotation speed automatic matching technique:
Manual adjustment, in long focal length situation, high speed reflect makes image quickly move when a slight touch of joystick, resulting a data loss. Based on a humanized design, the PTZ camera can automaticly adjust horizontal and vertical rotation speed according to focal length, so that manual operation is simple and easy to track targets.
Features of Sony EFFIO-E:
1/3 "Sony EX-VIEW HAD II CCD with high-quality and high- sensitivity. Up to 650 tvl of horizontal resolution, high-definition images, excellent low light performance.
A. Range of AWB. Is 1.8 ~ 10K, it can monitor environment with a variety of shine.
B. Digital WDR...Excellent color reproduction (ATR Auto Levels adaptation).
C. 2D DNR...In the case of low light, obtained clean and delicate images.
D. 8 language OSD menu, powerful, high brightness compensation, strong light inhibition.
4" mini IP intelligent high speed dome series (Fseries) |
Key Features:
1.Support D1, 2CIF, CIF, QCIF,(704*576 \ 704*288 \ 352* \ 176*144) resolution;
2.Support H.264, MJPEG image compression encoding;
3.Support PTZ control, alarm I/O, two-way Talkback, third-class user rights, with perfect functions;
4.Support any PTZ protocol ; it can definite PTZ protocal document to upgrade and update;
5.Two-way voice Talkback, support external audio input and output;
6.Complete network protocol, support RTSP, VLC ( PS/TS ) Media Protocol;
7.Support the mobile phone for remote monitoring;
8.Support 3G network transmission;
9.Support WIFI wireless transmission, support network search function and support WEP/WPA/WPA2 cipher mode;
10.Support front-end SD card for memory
System :
Operating system : Windows2000server/professional/XP
Network protocol: TCP/IP
Client PC : P4/128MRAM/40GHD/video card support zoom/DirectX8.0+ |
Madel No. |
BQL/FeX39-10/N |
Image Sensor |
1/4" SONY CCD |
Signal Model |
PAL/NTSC |
Horizontal Resolution |
480TVL |
Effective Pixel |
PAL:500(H)X582(V) NTSC:510(H)X492(V) |
Minimum Illumination |
0.001Lux-0.05Lux, Color to B/W |
Application Environment |
Indoor |
Installation way |
Ceiling Mount |
Housing protection |
IP50 |
S/N Radio |
≥ 50dB ( enhanced ) |
Filter |
single filter, IR sensor |
Backlight Compensation |
On/Off |
White Balance |
Auto |
Electronic Shutter |
PAL:1/50~1/10000 seconds, NTSC:1/60~1/12000 seconds |
Lens |
3.8-38mm |
Optical zoom |
10X |
Digital zoom |
Optional 10X |
Focus |
Auto/manual , take high-performance DSP to realize complete digital and ultra-high speed focus function. |
Preset |
255 |
Pattern scan |
4 groups , each can record 200 actions |
Tour scan |
4 groups ,every group have16 presets can join cruise,can setting the presets'residence time |
Other Scan |
4 groups, support horizontal scan, deuce area scan, scan random |
Rotation Range |
Horizontal & Vertical Min 0.01°/s, Max 300°/s |
Rotation Speed |
Horizontal & Vertical Min 0.01°/s, Max 300°/s |
Camera protocols |
supported SONY or Samsung |
Communications |
RS485, PELCO D, PELCO P |
Baud Rate |
2400/4800/9600/19200 |
Dome address |
255 |
Camera menu |
8 languages |
OSD |
Whole screen Chinese/English menu |
Special function |
AWB,MASK,DNR,Strong light inhibition,Mirror |
Compression standard |
Video: H.264/MJPEG Audio: G.711 |
Output code rate |
Video: 32K ~ 4Mbps/1M ~ 16Mbps Audio: 64Kbps |
Image |
Image size :704*576 ; 704*288 ; 352*288 ; 176*144;704*480 ; 704*240 ; 352*240 Frame Rate: 1-30f/s Image Setting : Brightness,contrast,saturation,hue,Exposal control |
Function |
Support: Mobile phone monitoring / Two-way Talkback for optional / Video frequency / Audio frequency / Motion detection / Area shield / SD Card local storage for optional / With WIFI for optional (it is optional to use high power WIFI module) / With 3G module for optional / With POE power supply for optional / Serial interface / Alarm interface |
Network protocol |
PPPoE \ DHCP \ TCP/IP \ HTTP \ UDP \ RTP/RTCP \ RTSP \ UPNP \ SMTP \ FTP \ SIP \ DDNS \ DNS |
Video frequency |
One-way video input |
Audio frequency |
One-way linear audio input/output; one-way microphone input; one-way earphone output |
Serial interface |
1 for input and 1 for output |
Alarm interface |
1 RS-232 interface (for parameter setting, equipment maintenance and transparent transmission) 1 RS-485 interface (for PTZ control or transparent transmission) |
Power Supply |
DC12V/1.5A |
Material |
Aluminum shell |
Work Environment |
-20 Celsius degree~+50 Celsius degree (select temperature control accessories), < 95%RH |
