| Prod Model: |
LLT-TY8006Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chip: |
A20 |
| Storage Space: |
8GB Nand Flash |
| Navigation Software Storage: |
SD/TF Card |
| Operating System: |
Android 4.2/4.4 |
| Audio: |
Wave\Aiff\Au\MP3\MIDI\WMA\Realaudio\Vqf\Oggvorbis\ |
| Audio Interface Performance: |
1080P HD Video Playback |
| Network Type: |
EVDO/W-CDMA/WiFi |
| CS: |
Sirf Iiior U-Blox 6 |
| Combination: |
TV |
| Placement: |
Dashboard |
| Certification: |
ISO |
| Voltage: |
12/24V |
| Audio Output: |
Digital Optical Output |
| Video Output: |
VGA |
Product Description

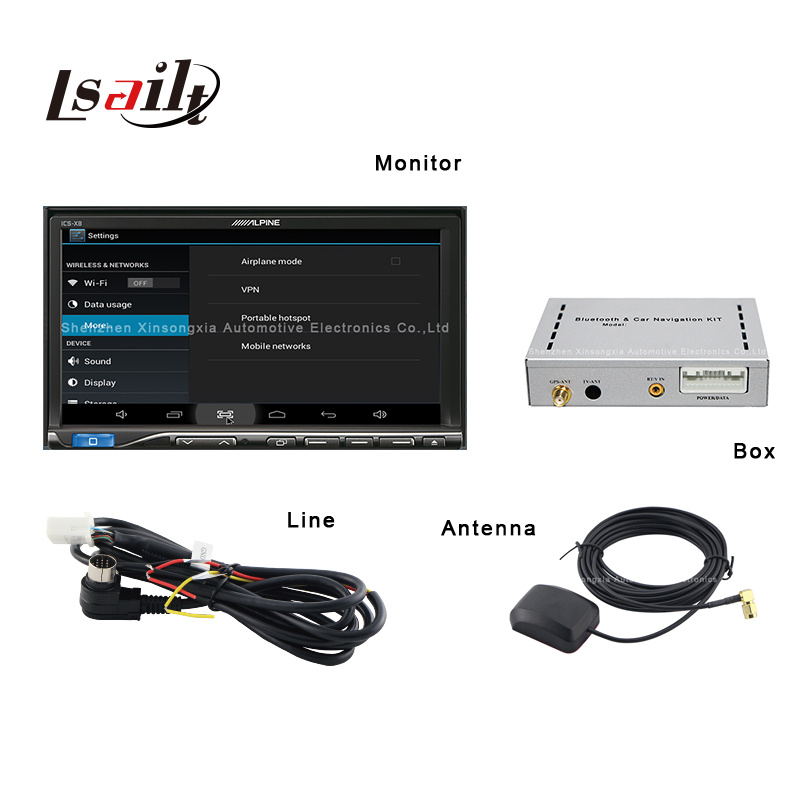

HD/800*480 Android Box, Android Navigator, Android Unit/Android unit system, Android System installed Original car Unit for BMW, Audi, Benz, Mercedes, Toyota Prius 10-30 etc
Features
Super-strong Dual-core processor: Cortex A8 1.2GHz
The Strongest compatibility: Match up with different screen and display affection
Maximum Video formats: AVI(H. 264, DIVX, DIVX, XVID, RM, RMVB, MKV(H. 264, DIVX, DIVX, XVID), WMV, MOV, MP4(H. 264, MPEG, DIVX, XVID), MPEG, MPG, FLV(H. 263, H. 264)
Support maximum 32G external U Flash Disk and Hard Disk
Support Maximum 32G external TF/SD card
Operating system: Android 4.2/4.4 more stable!
Support varieties of resolution, Maximum 800*480
Support TMC (TRAFFIC MESSAGE CHANNEL)
External E-dog with Full frequency radar LDT
Support touch screen control, and share a touch screen
Reset the factory settings.
Wi-Fi Hotspot Tethering, Wi-Fi wireless Internet and 3G Internet
USB 2.0 OTG HOST port which can connect computer and storage space can connect this machine.
Vast of Audio format: WAVE, AIFF, AU, MP3, MIDI, WMA, RealAudio, VQF, OggVorbis, AAC, APE;
Support AVIN
| Frequency | 1.2G~1.5G Hz |
| Chip | A20 |
| RAM | 1GB DDRIII |
| Storage space | 8GB NAND Flash |
| Navigation software storage | SD/TF card |
| Operating system | Android 4.2/4.4 |
| Multimedia and Performance |
| Audio | WAVE\AIFF\AU\MP3\MIDI\WMA\RealAudio\VQF\OggVorbis\AAC\APE |
| Video | AVI(H.264, DIVX, DIVX, XVID, rm, rmvb, MKV(H.264, DIVX, DIVX, XVID), WMV, MOV, MP4(H.264, MPEG, DIVX, XVID), MPEG, MPG, FLV(H.263,H.264) |
| Audio interface performance | 1080P HD Video playback |
| Image browser |
| Map Type | BMP/JPG/GIF/PNG |
| Text-based browser |
| Text Type | TXT |
| Internet |
| Network Type | EVDO/W-CDMA/WiFi |
| Network speed | 7.2M/S |
| GPS Hard Software |
| CS | SIRF IIIOR U-BLOX 6 |
| Frequency | 1.575GHZ |
| C/A CODE | 1.023 MHZ chip rate |
| Port numbers | 20 |
| Tracking sensibility | -159dBm |
| Positional accuracy | 10m, 2D RMS |
| 5m, 2D RMS, WAAS enable |
| Rate | 0.1m/s |
| Date updating rate | 1HZ |
| Capture time | Average 0.1s(OPEN SKY) |
| Hot boot time | Average 3s(OPEN SKY) |
| Warm boot time | Average 38s(OPEN SKY) |
| Clod boot time | Average 45s(OPEN SKY) |
| Maximum height positioning | 18,000m |
| Maximum rate | 515m/s |
| Acceleration | < 4g |
| External antenna interface | SMA |
| External antenna voltage | 3.3V±5% |
| External antenna gain | 27dB |
| External antenna current | 15mA |
| USB Parameter and Performance |
| USB interface Type | USB 2.0(High Speed)Device |
| USB Performance | Connect PC, Support U Flash Disk |
Shenzhen Xin Song Xia Automotive Electronics Co., Ltd established in 2009. The
Company is located in the advanced southern metropolis --- Bao'an District, Shenzhen city. It covers 60 staffs, including 10 R&D persons. It has 5 production lines and 1 production line for old product.
Company attaches great importance to research and develop new products. We have launched many new solutions for car models such as Mercedes-Benz, BMW, Audi, Honda, GM), etc. And with the ability of producing 50000 sets of original screen entertainment production per year.
We regard quality as life. The company equipped with many test equipment at the world's advanced level such as experiment box, vibration tester, high and low temperature boxes, ESD static tester, power supply fluctuation test instrument, Sound and video automatic detector. And we have made a strict quality inspect system and process. Operating comply with international quality system certification such as ISO9001: 2000, ISO/TS16949: 2009 etc. Strictly.
Shenzhen Xin Song Xia Automotive Electronics Co., Ltd sticks to the Traditional spirits "Create Classic attentively" and Enterprise culture "Creative, Flexible, Team, and Mutual Benefits" which consistently Challenge Himself, The Best of the Best as Conducts to Create more wonderful products to satisfy Driver for Car audio system entertainment
Our products are not only providing Inland 4S Shop, but only the supplier of South America, Middle East, Europe, and America at abroad. Company owed Sales network through the country and Contact the strategy Cooperation relationships with more than 10 Car sales CO.
Develop and Grow is common goal of members. Bellwether of Supplier of OEM Car audio upgrading kit is our Grand mission to the world.
