| Prod Model: |
XK - 1281058 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Length*Width*Highth |
| Display Type: |
Tn Display |
| LCD Operationg Voltage: |
5.0V?(3V-5V.>2.8V Is Ok) |
| Operating Temp: |
-20-70c |
| Storger Temp: |
-30-80c |
| Drive Mode: |
1/4duty ,1/3bias |
| Viewing Direction: |
6h(Bottom Viewing)---(12h,6h,3h,9h) |
| Polarizer Type: |
Front :Transmissive, |
| Connector: |
Pin |
| Power: |
+5V |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Touch Screen Type: |
Resistive |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| Digital LCD Module Type: |
Counting Module |
| Type: |
LCM |
| Display Technology: |
FSTN/CSTN |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
| Response Time: |
1ms |
| Customized: |
Customized |

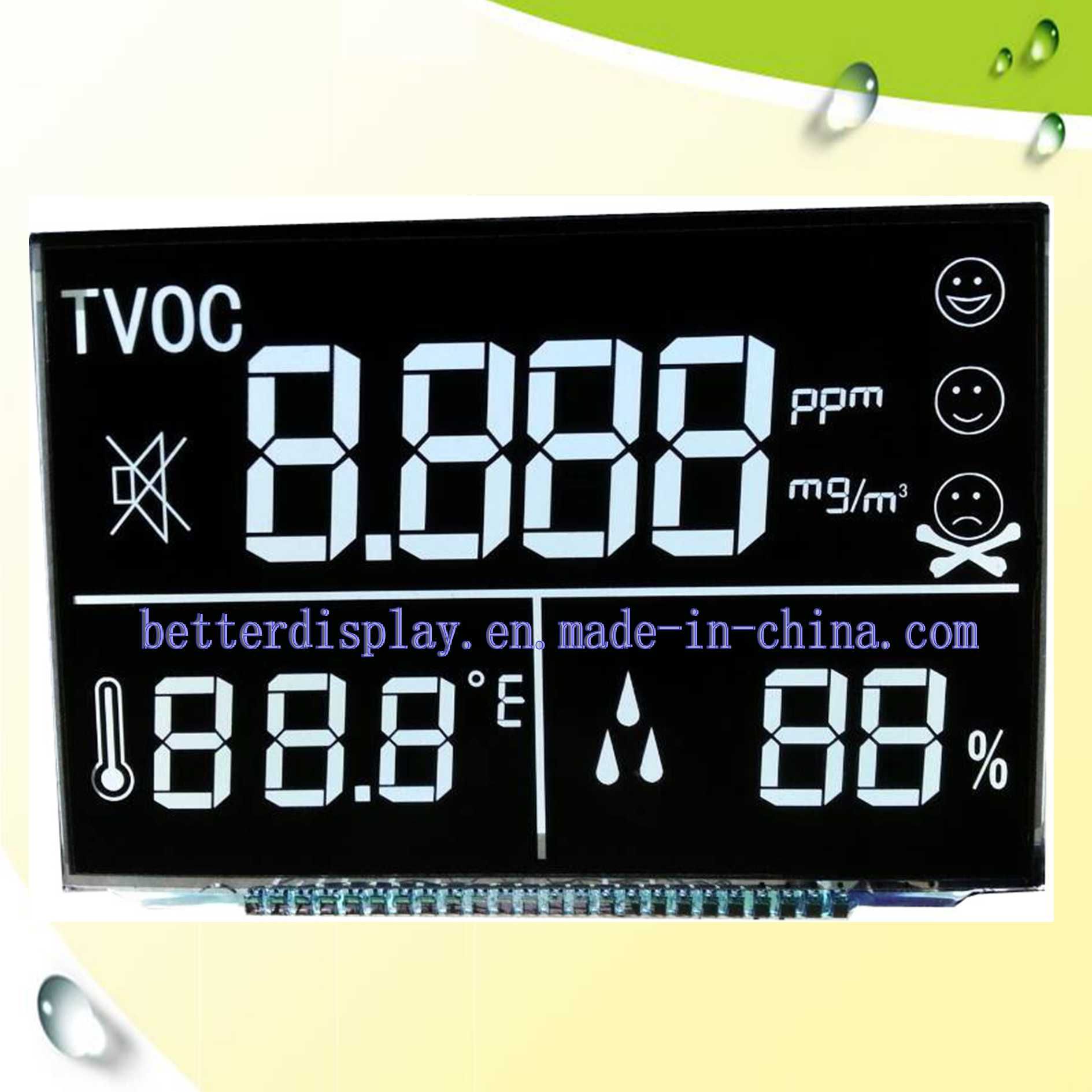

Product Description
Spec:
SIZE: Length*width*highth
DISPLAY TYPE: VA TN DISPLAY
LCD OPERATIONG VOLTAGE: 5.0v? (3V-5V. >2.8V IS OK)
OPERATING TEMP: -20-70C
STORGER TEMP: -30-80C
DRIVE MODE: 1/4DUTY, 1/3BIAS
VIEWING DIRECTION: 6H(BOTTOM VIEWING)---(12H, 6H, 3H, 9H)
POLARIZER TYPE: FRONT: TRANSMISSIVE,
BACK: TRANSMISSIVE
CONNECTOR: PIN
BACKLIHGT: WHITE WITH TWO LIGHT, /BLUE BL (CUSTOMER DESIGN)
Product Description
Specifications:
1. With VIDEO, VGA signal input
2. With OSD menu display
3. TFT module use for electronic equipment
4. Favorable price
1. Profile:
Driver Board and 8" Innolux Digital Panel. This driver board can with VIDEO, Y/C, AUDIO & VGA signal input, it adopts the backlight of LED, Two system formats, PAL and NTSC (auto switch ). With OSD menu control function, and IR receipt function.
2. Application: This module applies for as follow
-Office electronic equipment
-Instrument and Measure appliance
-Machinery and Equipment
-Audiovisual Car Monitor, Portable DVD Player, Long-distance terminal display.
-Household Video door phone, Video phone
3. Main Parameters:
Backlight: LED
Pixel resolution: 800(H) X 3RGBx 600V
View angle (Ø /U/D/L/R); 50/70/70/70
Brightness: 250 CD/m2
System format: PAL/NTSC automatically switch
Video input: 1.0Vp-p 75 ohm
Power Supply Input: DC 12V ± 25% 330mA± 30mA
Panel display dimension(mm): 162.0(H)× 121.5(V)
Panel Overall dimension(mm): 183(W)× 141(H)× 6.3(D)
Structural dimension of PCB (mm) without VGA socket: 128.8(W)× 85.4H× 9.4D
Working temperature: -10~+60
Environmental relative humidity: 5~95% RH
Storage temperature: -20~+70]
Packaging & Delivery
Packaging Detail: TBD
Delivery Detail: 2-3 Weeks for bulk order
We are the manufactory of LCD LCM LED TFT LCD Touch Panel, display, screen, TN, HTN, FSTN, VA, with silk screen, pin or zebra, FPC, COB, COG, TAB, All view angle, 2.8V 3.0V 5.0V,
We had at least 50 people for research and development, Quality control, 300 workers on the production lines.
Our product Widely used on the Mobile phone, camera, MP3, MP4, GPS, DVD displayer, electronic photo album, navigation, vehicle display, display instrument, electronic, etc.
Quality control By: IQC →IPQC→OQC
Quotation FOR
LCD: 1-2days
LCM: 1-2days
Counter drawing FOR
LCD: 1-2 days
LCM: 2-3 days
Samples FOR
TN LCD: 7-10 days;
STN LCD: 10-12 days;
TFT LCM: 15 days
LCM: 20-25 days
Production time
TN LCD: 3-4 weeks; STN LCD: 4 -5 weeks; LCM: 4-6 weeks;
Best Services
Our commitment is 24 hours to solve customer complain and give the solution
|
