| Prod Model: |
TE981H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wireless Receiving Module: |
1.2g/2.4GHz/5.8GHz |
| Screen Resolution: |
800*480 Pixel |
| Channels Switch: |
Auto Scan or Manual Choose |
| Signal: |
No Blue Screen When Signal Weak |
| Strong Battery: |
3200mA Li-Battery |
| Sensitivity: |
-88db-102db |
| Warranty: |
12 Months |
| Type: |
LCD Monitor |
| Feature: |
LED Backlight Display |
| Screen: |
General Screen |
| Sensor: |
CMOS |
| Application: |
Computer |
| Color: |
Color |
| Certification: |
BV |
| Material: |
LCD |
| Interface Type: |
VGA |
| HDMI Format: |
480P |
| Scanning: |
Line by Line Scan |
| Horizontal Resolution: |
520tvl |
| Size: |
5 Inch |
Product Description

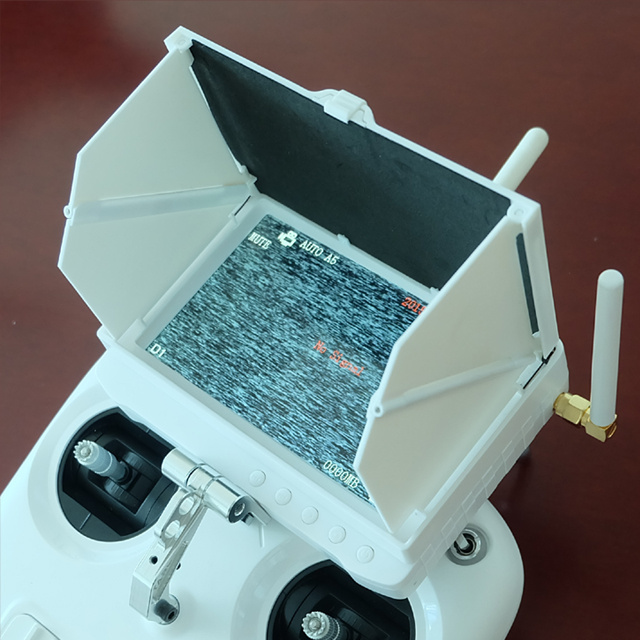

New product same white color as DJI RC Quadcopter FPV monitor Integrated 5.8Ghz/2.4Ghz/1.2Ghz receiver
TE981H is a new generation portable CCTV DVR FPV monitor with one-press open sunshade developed by our company.
It supports both wireless and wired cameras. Frequancy can be 1.2Ghz, 2.4Ghz, 5.8Ghz. Not only this,
It adds new function of photo, loop recording, power saving (auto shutdown, auto off-screen), etc.
This DVR is the ideal choice for security & protection, evidence & investigation,
Like police, household, sports, automotive industry, shops, etc...At the same time,
With its stylish and high-end appearance, it also becomes the fashion choice of leisure goods.
Advantages:
32chs 5.8Ghz receiver with -102dbi.
Frequency mode: 1.2Ghz, 2.4Ghz, 5.8Ghz, it won't bluescreen when signal weak.
Mini size and portable recorder with fashionable & new design;
One-press open sunshade can help you see clear underder sunshine.
5-inch HD screen (800X480pix), which provides clear and smooth image;
Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
Supports storage up to 32G TF card, which records up to 32 hours;
Folding hidden external antenna assures excellent wireless receiving;
Supports AV IN function: Receiving signal from wired cameras;
Supports AV OUT function: Connecting big sreen monitor.
Photo function: It can take, review & store pictures;
Supports intelligent motion detect video recording;
Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
Seamless continuous record: No intermittent recording, it will not miss any detail and wonderfulness;
Support power-saving mode: Automatic shutdown, automatic off-screen;
Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions.;
It's of high compatibility, which supports almost all computer operating system, including MAC;
Supports multi-language.
Channels:
| Model: TE981H | Wireless receiving channels |
Receiving | 5.8Ghz 32CHs | A1:5.740GHz;A2:5.760GHz;A3:5.780GHz;A4:5.800GHz
A5:5.820GHz;A6:5.840GHz;A7:5.860GHz;A8:SPI
B1:5.725GHz;B2:5.745GHz;B3:5.765GHz;B4:5.785GHz
B5:5.805GHz;B6:5.825GHz;B7:5.845GHz;B8:5.865GHz
C1:5.733GHz;C2:5.752GHz;C3:5.771GHz;C4:5.790GHz
C5:5.809GHz;C6:5.828GHz;C7:5.847GHz;C8:5.866GHz
D1:5.705GHz;D2:5.685GHz;D3:5.665GHz;D4:5.645GHz
D5:5.885GHz;D6:5.905GHz;D7:5.925GHz;D8:5.945GHz |
| 2.4Ghz 8 CHs | A1: 2414MHz;A2:2432MHz;A3: 2450MHz;A4:2468MHz.
A5:2490MHz;A6:2510MHz;A7: 2390MHz;A8:2370MHz |
| 1.2Ghz 24 Chs | A1:1080 MHz;A2:1120MHz;A3:1160MHz;A4:1200MHz
A5:1240 MHz;A6: 1280MHz;A7:1320MHz;A8:1360MHz
B1:1080 MHz;B2:1120MHz;B3:1160MHz;B4:1200MHz
B5:1258 MHz;B6: 1280MHz;B7:1320MHz;B8:1360MHz
C1:1080 MHz;C2:1120MHz;C3:1160MHz;C4:1200MHz
C5:1010MHz;C6: 1040MHz;C7:1240MHz;C8:1280MHz
|
Specifications:
| Wireless Receiving |
|
|
|
|
|
|
| Sensitivity | -88dB |
| AV IN | TV system | NTSC / PAL |
| Output voltage | 3.6-4.2 V |
| AV OUT | TV system | NTSC / PAL |
| HD 5-inch LCD screen | Active area | 108mm(W) X 64.8mm(H) |
| Resolution | 800 X 480 Pixel |
| Luminance for LCM | 300 cd/m2 |
| Video | Resolution | 720*576 / 720*480 |
| Video compress | MPEG-AVI 30fps |
| Play format | MPEG-AVI |
Specification
| Audio | Frequency | 20HZ-20KHz stereo |
| Earphone Output | Left: 20MW+ right 20mW [16O](suit to largest volume) |
| Speaker | 1W |
| Photo | Format | JPG/JPEG |
| Storage | External SD card | TF card 1GB-32GB(optional) |
| 32GB recording time | 10-32 hours |
| 1GB photos | 15625pcs |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 |
| Language | Multiple |
| Power | Voltage | DC 5V |
| Current(receiving mode) | 660MA |
| Current( recording mode) | 680MA |
Specification
| Power | Current(recording with off-screen mode) | 340MA |
| AC adapter | DC 5V 2A |
| Built-in battery | Li-battery 3200Mah |
| Standby time | Wireless record | ≥9.5 hours(off-screen); ≥5hours(on-screen) |
| Wired record | ≥12 hours(off-screen); ≥6hours(on-screen)*LED camera not included. |
| Size :( LX W X H ) | Without sunshade | 131mmx 90.5mm x 18mm |
| Size :( LX W X H ) | With sunshade | 131mmx 90.5mm x 28mm |
| Weight: | Without sunshade | 215g |
| Weight: | With sunshade | 260g
|
