| Prod Model: |
TE968H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wireless Receiving: |
2.4G/5.8g |
| Display: |
5inch |
| Storage: |
32GB |
| Language: |
Multi |
| Speaker: |
1W |
| Function: |
Photo, Recording |
| Battery: |
Buit in 3200mAh Li Battery |
| Application: |
Surveillance |
| Aspect Ratio: |
4:3 |
| Feature: |
With Remote Control |
| Optimum Resolution: |
1360x768 |
| Widescreen: |
Widescreen |
| 3D: |
Not 3D |
| Interface Type: |
AV |
| Screen Size: |
5inch |
| Type: |
LCD |
| Response Time: |
Initial |
Product Description

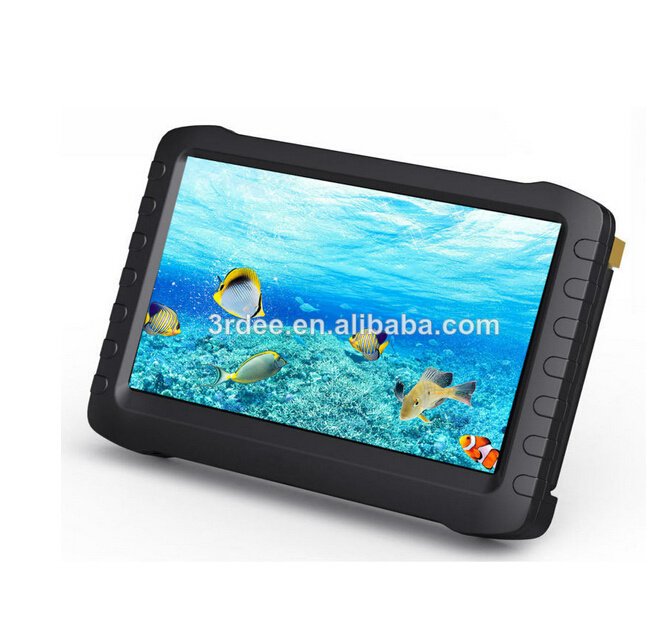

Motion Detect 5inch 2.4G Wireless SD Card Storage Motion Detect and Loop Recording
Basic Information:
L Display: 5-inch HD screen (800X480pix).
L Wireless Receiving: Built-in 2.4G/5.8G wireless receiving module.
L Channel Switch: Supports manual & automatic switch between 8 channels.
L Antenna: Folding hidden external antenna assures excellent wireless receiving.
L Recording: Supports seamless cycle and continuous video from wired/wireless cameras
L Photo: Supports function of taking pictures either from wired or wireless cameras.
L AV IN: TV-IN [NTSC / PAL].
L AV OUT: [NTSC / PAL].
L Battery: Built-in 3200mAh high capacity Li-battery, which continuous record over 10 hours.
L Speaker: Built-in speaker of 1W.
L Storage: Supports up to 32GB TF card.
L Language: Supports multi-language.
L Supports Power-saving Mode: Automatic shutdown, automatic off-screen.
L Automatic upgrade: Supports system automatic upgrade.
| Wireless Receiving | Wireless freq. ( 1of 6 groups | 2.4GHz–8 channels | CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz.
CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz |
| Within 5.8G-A 8 channels | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
| Beyond 5.8G-B 8 channels | CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz |
| Within 5.8G-C 8 channels | CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz.
CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz |
| Within 5.8G-D 7channels for FPV | CH1: 5740MHz; CH2: 5760MHz; CH3: 5780MHz; CH4: 5800MHz.
CH5: 5820MHz; CH6: 5840MHz; CH7: 5860MHz; CH8: SPI |
| Beyond 5.8G-E 7 channels for FPV | CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: SPI |
| Sensitivity | -88dB |
| AV IN | TV system | NTSC / PAL |
| Output voltage | 3.6-4.2 V |
| AV OUT | TV system | NTSC / PAL |
| HD 5-inch LCD screen | Active area | 108mm(W) X 64.8mm(H) |
| Resolution | 800 X 480 Pixel |
| Luminance for LCM | 200 cd/ |
| Items | Value |
| Video | Resolution | 720*576 / 720*480 |
| Video compress | MPEG-AVI 30fps |
| Play format | MPEG-AVI |
| Audio | Frequency | 20HZ-20KHz stereo |
| Earphone Output | Left: 20MW+ right 20mW [16O](suit to largest volume) |
| Speaker | 1W |
| Photo | Format | JPG/JPEG |
| Storage | External SD card | TF card 1GB-32GB(optional) |
| 32GB recording time | 10-32 hours |
| 1GB photos | 15625pcs |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 |
| Language | Multiple |
| Power | Voltage | DC 5V |
| Current(receiving mode) | 660MA |
| Current( recording mode) | 680MA |
| Current(recording with off-screen mode) | 340MA |
| AC adapter | DC 5V 2A |
| Built-in battery | Li-battery 3200Mah |
| Standby time | Wireless record | ≥9.5 hours(off-screen); ≥5hours(on-screen) |
| Wired record | ≥12 hours(off-screen); ≥6hours(on-screen)*LED camera not included. |
| Size (L x W x H) | 131mmx 86mm x 18mm |
| Weight(g) | 205g |
