| Prod Model: |
P8-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Usage: |
Outdoor |
| Module Resolution: |
16*8 Dots |
| Module Size: |
256mm*128mm |
| Screen Dimension: |
Customized |
| Maintenance Way: |
Rear Access |
| Viewing Angle: |
120/90 Degrees |
| Best Viewing Distance: |
8-150m |
| Working Voltage: |
220 AC or 110AC |
| Lifespain: |
100, 000 Hours |
| Product Name: |
P8 Outdoor LED Display Screen |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
600W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15, 625dots/Sqm |
Product Description
Product Description

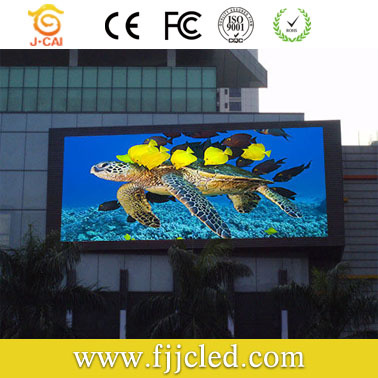

Outdoor P8 Advertising LED Display Screen
1: RGB deep gray scale processing, rich color and HD image effect;
2: High intensity and anti-aging material, IP65 protection resist any
Bad environment;
3: Energy-saving;
Package
Flight case or wooden case or carton or customized.
After-sales Service
1: Warranty: 2 years.
2: Service time: 24 hours*7 days.
3: All of our LED display have proceeded aging test before shipment,
And we guarantee to use our products safety.
4: All the LED display are inspected before shipment, If any problems happen, do not hesitate to contact with us, our team will do our best to solve for customer within 48hours.
Company Information
Brilliant Optoelectronic CO, Ltd was founded in 2005, which is a national high-tech enterprises specialized in LED display products R&D,
Production, sale and engineering services.
Brilliant Optoelectronic will be committing to provide more cost-effective,
More energy-efficient, and greener LED optoelectronic products,
Contributing to building a green home.
Advantage:
Good price
Our price is 10% lower than the market because of the introduction of full Automatic production line with the characteristics of reducing the cost of Labor and management.
Lightweight
Aluminum cabinet greatly saving freight cost and conveniently installing.
Stable performance
Our most basic guarantee: The aging time exceeding 24 hours. Malfunction Dot rate less than 0.0001. MTBF more than 10, 000 hours.
Best quality LED chip tube
The SILAN, OPTO, EPISTAR assuring high brightness and long life-span.
Quality insured by CPIC and 2-year of quality guarantee.
Free to support and train your operator.
Besides Outdoor P8 DIP LED Display Advertising Screen, Also Include:
1. P1.9/P2.5/P3/P4/P5/P6...Indoor full color LED display video;
2. P6/P8/P10/P12/P12.5/P16/P20/P25...Outdoor full color LED display screen;
3. P4/P4.75/P7.62/P10 Indoor/outdoor/semi-outdoor single/dual color LED display panel etc.
Thanks for your time, welcome to contact us for more details.
| Paremeters |
| Pixel Pitch | 8mm |
| Module Size(W×H) | 256mm*128mm |
| Module Resolution(W×H) | 16*16dots |
| Pixel Density | 15,625(dots/ m2) |
| Lamp Origin | Epistar |
| Pixel Configuration | 1R1G1B |
| Led Specification | DIP246 |
| Gray Level/ Color | 65536 lever /16.7M |
| Brightness | ≥8,000cd/m2 |
| Best view angle | Horizon: 120° Vertical : 90° |
| Control method | Synchronous |
| Scanning method | 1/4 constant current |
| Power consumption | Average: 600w/m2 Max : 850w/m2 |
| Best viewing distance | 8~150m |
| Lifespan | ≥100,000 H |
| MTBF | ≥10,000H |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥300HZ |
| System Working Temperature | –20°C ~ 50°C |
| System Working Humidity | 10 ~ 95%RH |
| Power | 5V/40A |
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
