Shenzhen Xin Song Xia Automotive Electronics Co., Ltd. >> Navigation System with Android OS (800*480)

Navigation System with Android OS (800*480)

Navigation System with Android OS (800*480)
Price: Negotiable/Set
Trade Terms: FOB
Min Order: 100/Set
Pay Type: T/T,Paypal,Western Union
Prod Model: LLT-KW3005
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gr.Wt: 0.55kg
CPU: 800MHz/1GHz
Navigation: 800MHz(GHz), 256(Storage), 800X480(HD Dispaly)
Map: Careland/Daodaotong/Igo/Papago
Audio Interface Performance: 1080P HD Video
Map Type: BMP/JPG/GIF/PNG
Network Type: EVDO/W-CDMA/Wi-Fi
CS: Sirf Iiior U-Blox 6
Port Numbers: 20
Certification: ISO
Video Output: VGA
Audio Output: Digital Optical Output
Voltage: 12/24V
Placement: Dashboard
Combination: MP3/MP4 Player

Product Description

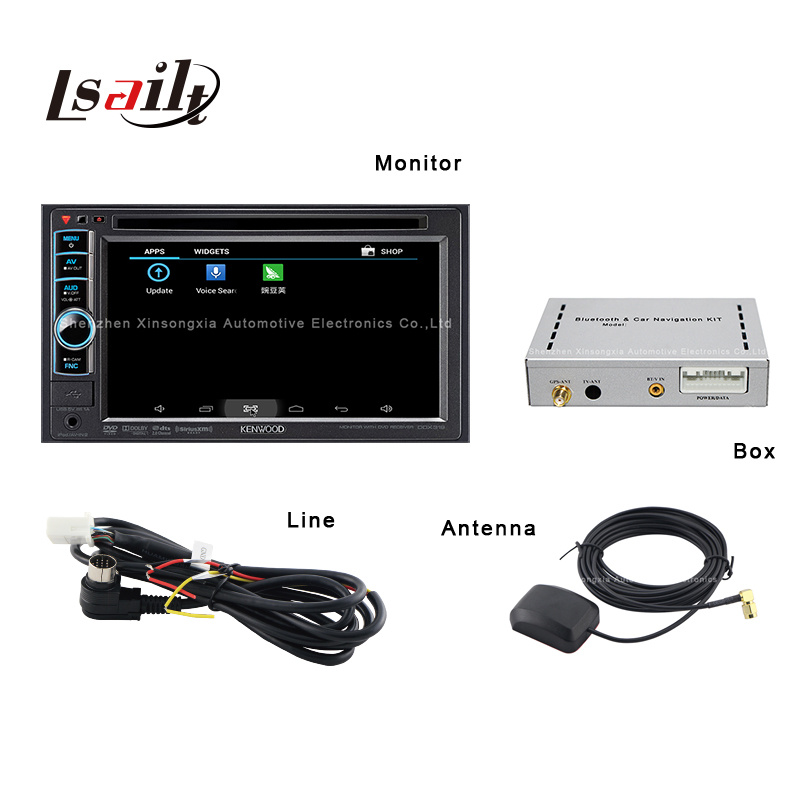

HD/800*480 Android unit system, Android Navigation Box, Android System installed Original car Unit for Pioneer/Sony/JVC with The type of Pioneer:
Fit for Kenwood: DDX630, DDX630BT DDX-5036/630BT/4038/4028/7036/8036
The Best
Super-strong Dual-core processor: Cortex A8 1.2GHz
The Strongest compatibility: Match up with different screen and display affection
Maximum Video formats: AVI (H. 264, DIVX, DIVX, XVID, RM, RMVB, MKV (H. 264, DIVX, DIVX, XVID), WMV, MOV, MP4 (H. 264, MPEG, DIVX, XVID), MPEG, MPG, FLV (H. 263, H. 264)
Support maximum 32G external U Flash Disk and Hard Disk

Support Maximum 32G external TF/SD card
Operating system: Android 4.2/4.4 more stable!
Support varieties of resolution, Maximum 800*480
Support TMC (TRAFFIC MESSAGE CHANNEL)
External E-dog with Full frequency radar LDT
Support touch screen control, and share a touch screen
Reset the factory settings

Wi-Fi Hotspot Tethering, Wi-Fi wireless Internet and 3G Internet
USB 2.0 OTG HOST port which can connect computer and storage space can connect this machine. Vast of Audio format: WAVE, AIFF, AU, MP3, MIDI, WMA,
RealAudio, VQF, OggVorbis, AAC, APE; Support AVIN
SYSTEM PARAMETER
Frequency 1.2G~1.5G Hz
Chip A20
RAM 1GB  DDRIII
Storage space 8GB NAND Flash
Navigation software storage SD/TF card
Operating system Android 4.2/4.4
Multimedia and Performance
Audio WAVE\AIFF\AU\MP3\MIDI\WMA\RealAudio\VQF\OggVorbis\AAC\APE
Video AVI(H.264, DIVX, DIVX, XVID, rm, rmvb,  MKV(H.264, DIVX, DIVX, XVID), WMV, MOV, MP4(H.264, MPEG, DIVX, XVID), MPEG, MPG, FLV(H.263,H.264)
Audio interface performance 1080P HD Video playback
Image browser
Map Type BMP/JPG/GIF/PNG
                                                                                        Text-based browser
Text Type TXT
Internet
Network Type EVDO/W-CDMA/Wi-Fi
Network speed 7.2M/S
GPS Hard Software
CS SIRF IIIOR U-BLOX 6
Frequency 1.575GHZ
C/A CODE 1.023 MHZ chip rate
Port numbers 20
Tracking sensibility -159dBm
Positional accuracy 10m, 2D RMS
5m, 2D RMS, WAAS enable
Rate  0.1m/s
Date updating rate 1HZ
Capture time Average 0.1s(OPEN SKY)
Hot boot time Average 3s(OPEN SKY)
Warm boot time Average 38s(OPEN SKY)
Clod boot time Average 45s(OPEN SKY)
Maximum height positioning 18,000m
Maximum rate 515m/s
Acceleration < 4g
External antenna interface SMA
External antenna voltage 3.3V±5%
External antenna gain 27dB
External antenna current 15mA
USB Parameter and Performance
USB interface Type USB 2.0(High Speed)Device
USB Performance Connect PC, Support U Flash Disk

Shenzhen Xin Song Xia Automotive Electronics Co., Ltd established in 2009. The

Company is located in the advanced southern metropolis --- Bao'an District, Shenzhen city. It covers 60 staffs, including 10 R&D persons. It has 5 production lines and 1 production line for old product.

Company attaches great importance to research and develop new products. We have launched many new solutions for car models such as Mercedes-Benz, BMW, Audi, Honda, GM), etc. And with the ability of producing 50000 sets of original screen entertainment production per year.

We regard quality as life. The company equipped with many test equipment at the world's advanced level such as experiment box, vibration tester, high and low temperature boxes, ESD static tester, power supply fluctuation test instrument, Sound and video automatic detector. And we have made a strict quality inspect system and process. Operating comply with international quality system certification such as ISO9001: 2000, ISO/TS16949: 2009 etc. Strictly.

Shenzhen Xin Song Xia Automotive Electronics Co., Ltd sticks to the Traditional spirits "Create Classic attentively" and Enterprise culture "Creative, Flexible, Team, and Mutual Benefits" which consistently Challenge Himself, The Best of the Best as Conducts to Create more wonderful products to satisfy Driver for Car audio system entertainment

Our products are not only providing Inland 4S Shop, but only the supplier of South America, Middle East, Europe, and America at abroad. Company owed Sales network through the country and Contact the strategy Cooperation relationships with more than 10 Car sales CO.

Develop and Grow is common goal of members. Bellwether of Supplier of OEM Car audio upgrading kit is our Grand mission to the world.

Company Culture

Mutual respect

Honest

Aggressive

Realization of Mutual Benefits

Custom First

Efficiency and Original

Improve competition of market

The Value of Industry

1. Brain value is higher than the material value

2. Mutual value is higher than the personnel value

3. User value is higher than the production value

Enterprise Tenet

Value for customer; Development for staff; Opportunity for society; Benefits for industry.

Enterprise Spirit

Honest

Aggressive

Dedicated

Original

Cooperation

Enterprise Relation

Love country

Love company

Love staff

Love family

Enterprise Brand

LLT: Involved in the original car upgrade decode navigation screen, change the screen machine, Internet communications, and Android navigator box, the original car screen upgrade scheme.
