| Prod Model: |
N085YL-7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Status: |
New |
| Type: |
Reciprocating |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
Product Description
1. Frequency only for 50HZ
2. Voltage application from220 to 240V
3. Application in cooling and other refrigeration equipments.
4. High efficiency
5. Low vibration
6. Good reliability
7. COP is 1.3 with the cooling capacity 85W
8. RSIR Motor
9. Cooling type Static
10. Low Back Pressure
11. Compressor should be stored in a dry and drafty place.
12. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
13. Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
14. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.

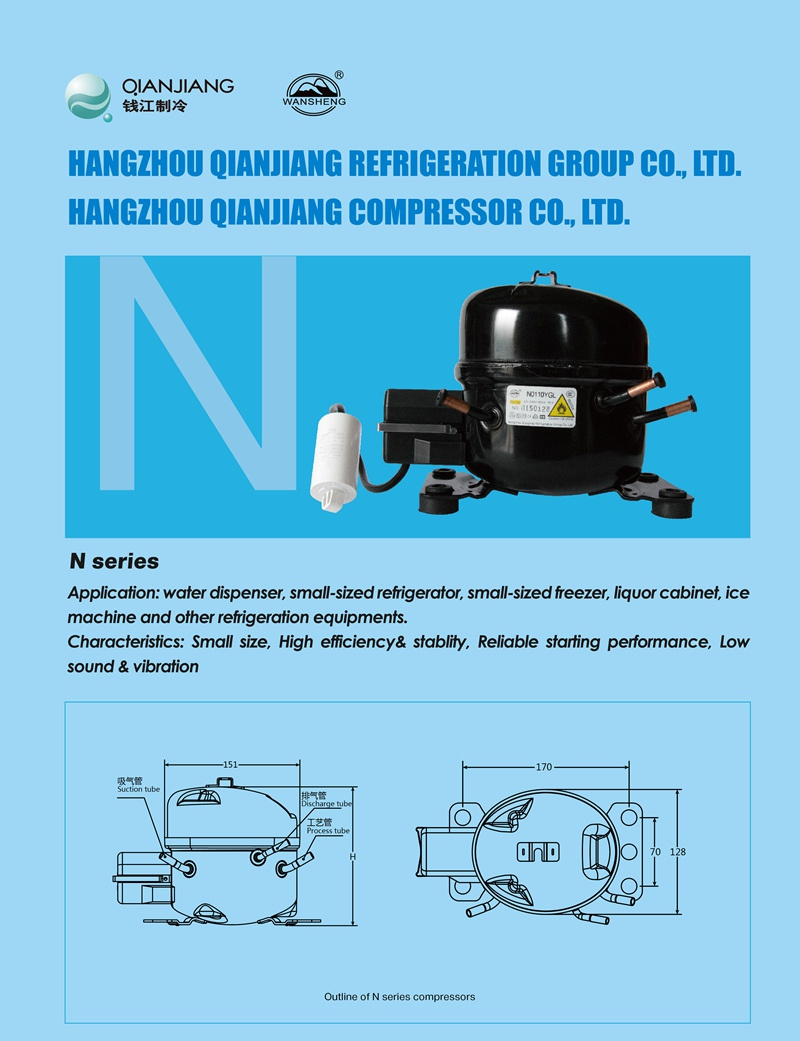

15. N series N085YL is our new product with good performance
16. Small size
17. Cheap price provided for the compressor N085YL makes the customers better choice
18. Experienced staff ensure produce of the compressors with good quality
19. Use R600a refrigerant
20. Aluminum compressor
21. Starting device is PTC
| Wansheng R600a compressors technology parameters | Test Conditions | Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
|
| Amb. Temp.: 32.2°C | Suction. Temp.: 32.2°C |
|
| Subcooling Temp.: 32.2°C | LBP ASHRAE |
|
| Model | Power Supply | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Capacitor (μF) | Starting Relay | Cooling Type |
| N series |
|
| N085YL | 220-240V/50Hz | 5.2 | 85 | 65 | 1/12 | 1.3 | RSIR | / | PTC | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
