| Prod Model: |
mEA55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Multi Port EDFA: |
Optic Amplifier |
| LED Monitor: |
Support |
| Total Power: |
13~40db |
| Working Range: |
1545~1555nm |
| Multi Port: |
8~128 |
| Built In Wdm: |
Option |
| Type: |
Fiber Amplifier |
| Wiring Devices: |
MDF |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

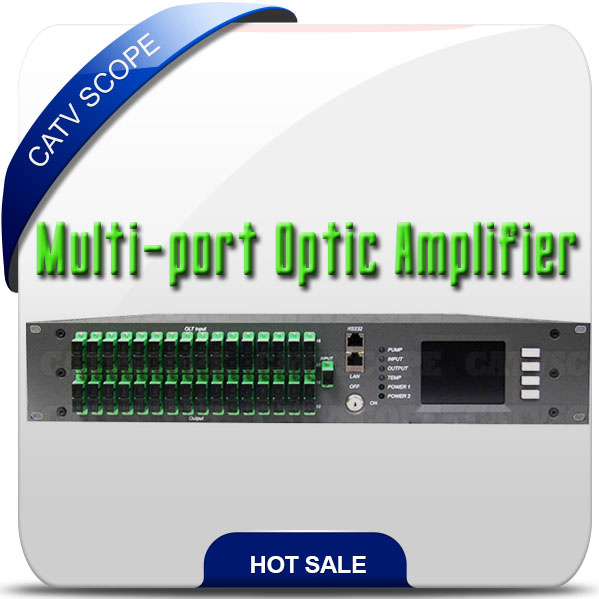

The Multiport Ultra-High Power Optic Amplifier mYA series utilize a double cladding Erbium-Yterbium-Doped fiber's feature to obtain the ultra-high Gain, Max. High power is up to +40dBm (Total Power) and up to 128-Output ports (LC/APC), This series are able to conveniently be deployed in Xpon network to deliver the Video (Analog, QAM) business to achieve the tri-play network, because inside of this Housing equipped WDM multiplexers for each output Ports, they redirect the 1310/1490nm wavelengths, which carry the Data package from OLT, and then add the 1550nm wavelength together output through each output ports
Features
+13 to 40dB (Total Power)Option
Working range: 1545 to 1555nm
8 to 128 outputs
Built-in WDM for Xpon (Various WDM Option)
Specification
Wavelength(nm) |
1545~1555 |
Optical input power(dBm) |
-5~+10 |
Nominal Opitcal input power(dBm) |
3 |
NF(dB)(+3dBm,@1550nm) |
3.8~5.5 |
Gain Flatness(dB) |
<±0.3 |
Optical output power stability(dB) |
<±0.5 |
Polarization Sensitivity(dB) |
<0.2 |
Polarization mode dispersion(ps) |
<0.5 |
Optical connector(IN/OUT) |
FC/APC |
Working pump quantity(N) |
1to 3 |
Saturated total output power(dBm) |
13 to 26 |
Power source(Vac) |
115~265 |
Power source(Vdc) |
48 |
Working temperature(°C) |
0~50 |
Size(mm) |
482.6*387*44 |
