| Prod Model: |
EA55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| EDFA: |
Fiber Amplifier |
| Optical Fiber Amplifier: |
High Power |
| Wdm: |
Support |
| Wavelength: |
1540-1563 |
| Pump: |
Jdsu,Xt,Adi and So on |
| Output: |
32ports |
| Output Power: |
17dBm |
| Type: |
Optical Fiber Distribution Box |
| Wiring Devices: |
ODF |
| Certification: |
CE |
| Condition: |
New |

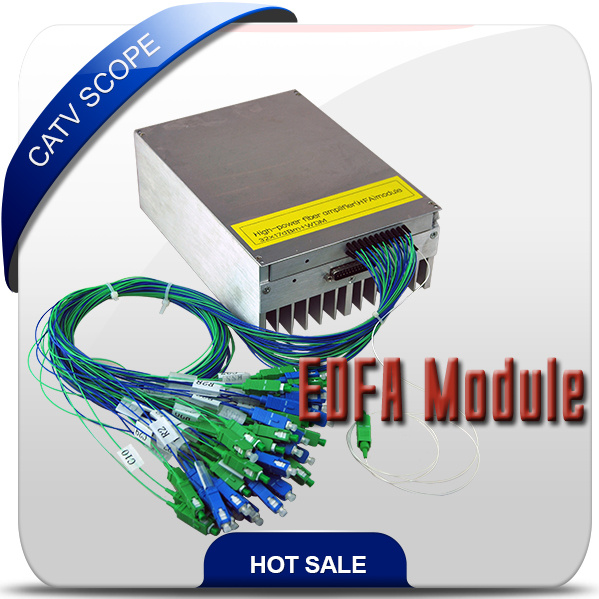

Product Description
1,Summary
1.1Summary
EDFA(Erbiur Doped Fiber Amplifer)is one of the most representative amplifier.Er-doped fiber is the core of EDFA,with quartz optical fiber as matrix material,And in the mixed with certain proportion of rare earth elements in erbium ions(Er3+).
Application:CATV Network
Communication network
Industrial pulse amplifier
1.2 feature
1.2.1)High Quality:Adopt international brand Pump of 980nm wavelength,Power, gain flatness and reasonable optimization by the software, minimizing EDFA NF. The system can get excellent noise index.
1.2.2)Flexibility:The module adopts the international standard size case.
1.2.3)Reliability:Internal PCB adaopts 4 layers structure,obtained in the current protection.
1.2.4)Intelligent:Built in CPU,APC&ATC control circuit,With the power supply of +5V,module can work normally
3.1CATV Module:
Item | Unit | Parameter |
| Wavelength | nM | 1540~1563 |
| Input power | dBm | -9.9~+9.9 |
| Nominal input optical power | dBm | 0 |
| Noise figure(+0 dBm,@1550nM) | dB | 3.8~5.5 |
| Gain flatness | dB | <±0.3 |
| Optical power output stability | dB | <±0.5 |
| PDL | dB | 0.38 |
| PDG | dB | <0.2 |
| PMD | ps | <0.5 |
| Fiber connector(IN/OUT) |
| FC/APC;SC/APC |
| No. of Pump | (N | 1 |
| Leakage of Pump | dBm | -35 |
| Saturation output power | dBm | 1323 |
| Power Supply | Vdc | +3.3~5 |
| Current supply | Adc | <3 |
| Working Temp | ºC | 0~50 |
| Size | mm | 90×70×20 |
3.2 Gain Flat Module:
Wavelength | nM | 1530~1563 |
| Input optical power | dBm | -32~+10 |
| Gain | dB | 3~33(AGC mode) |
| Max output power | dBm | 0~23(APC mode) |
| Noise Figure(Max output) | dB | 3.8~5.5 |
| Gain flatness | dB | <±0.5 |
| PDL | dB | 0.38 |
| PDG | dB | 0.5 |
| PMD | PS | 0.3 |
| Optical power | dB | <±0.5 |
| Return loss | dB | 55(APC) |
| Fiber connector(IN/OUT) |
| FC/APC;SC/APC |
| No. of Pump | N | 1 |
| Leakage of Pump | dBm | -35 |
| Power Supply | Vdc | +3.3~5 |
| Current supply | Adc | <3 |
| Working Temp | ºC | 0~50 |
| Size | mm | 90×70×20 |
|
|
|
3.3 Pulse Gain Module:
Working wavelength | nM | 1540~1560 |
| Optical input power | dBm | -32~-10(average optical power) |
| Gain | dB | 3~35(AGC mode) |
| Max output power | dBm | 0~20 |
| Noise Figure | dB | 3.8~5.5 |
| Gain flatness | dB | <±1 |
| PDL | dB | 0.38 |
| PDG | dB | 0.5 |
| PMD | PS | 0.3 |
| Stability for output | dB | <±0.5 |
| Return loss | dB | 55(APC) |
| Pulse repletion frequency | nS | 300~5000 |
| Pulse width | nS | 200~450 |
| Fiber connector(IN/OUT) |
| FC/APC;SC/APC |
| No. of pump | N | 1 |
| Leakage of pump | dBm | -35 |
| Power supply | Vdc | +3.3~5 |
| Current supply | Adc | <3 |
| Working temp | ºC | 0~50 |
| Size | mm | 90×70×20 |
