| Prod Model: |
mEA55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| EDFA: |
1550nm Optical Amplifier |
| CATV Optic Amplifier: |
Optical Booster |
| Total Power: |
13~38db |
| Working Range: |
1545-1555nm |
| Output: |
8~128 |
| Optic Input Power: |
-5~+10dBm |
| Pdl: |
0.3db |
| Return Loss: |
55db |
| Type: |
CATV（Cable Television）Equipment |
| Function: |
Signal Transmission Equipment |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

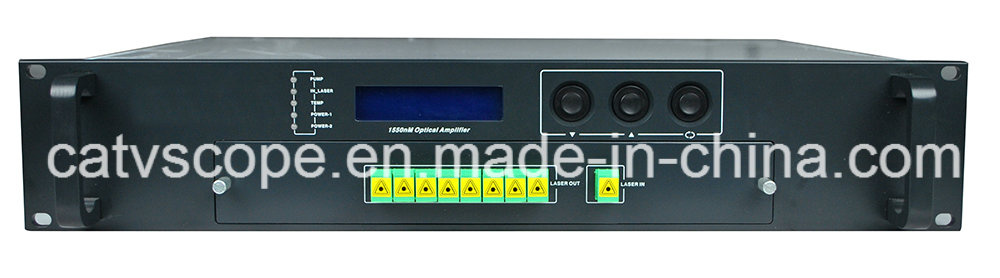

About mEA-55xx
The Multiport High Power Optic Amplifier mEA series adopt EDFA and YDFA Technologies, Gain:13-26dB employs the EDFA technology, Gain more than 26dB uses the YDFA. This series' Max.high power is up to +37dBm (Total Power) and up to 64-Output ports, Gain: 19dBm output Per Ports (32 Ports). This series are able to conveniently be deployed in Xpon network to deliver the Video (Analog, QAM) business to achieve the tri-play network, because inside of this Housing equipped WDM multiplexers for each output Ports, they redirect the 1310/1490nm wavelengths, which carry the Data package from OLT, and then add the 1550nm wavelength together output through each output ports.
Features
- +13 to 38dB (Total Power)Option
- Working range: 1545 to 1555nm
- 8 to 128 outputs
- Optic Input Power: -5 to +10dBm

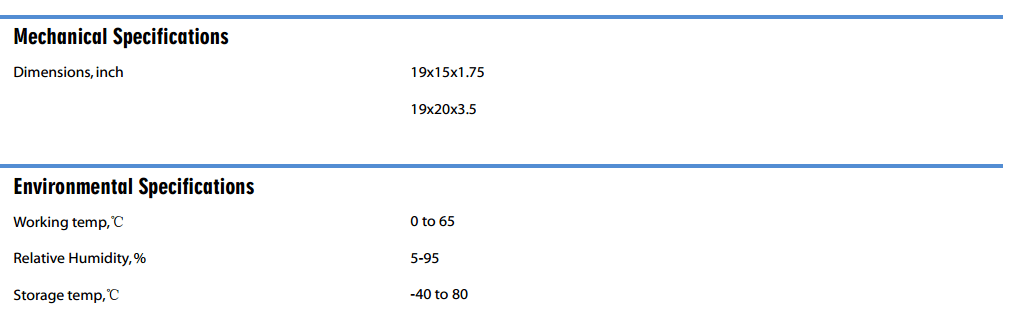

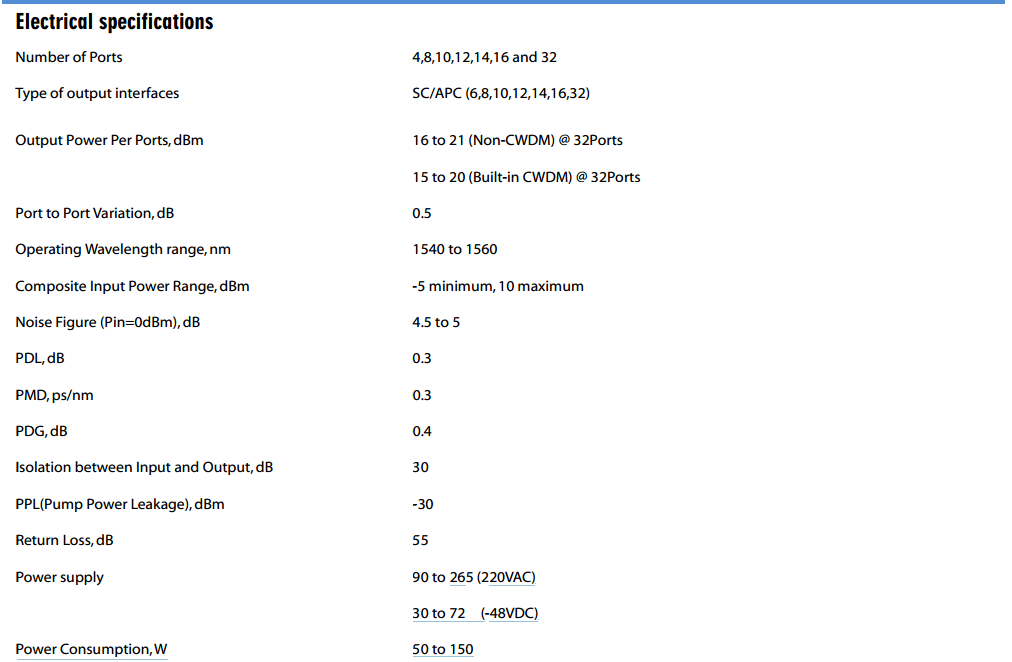

Specification
