| Prod Model: |
TYA-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Water Content: |
<=100ppm |
| Gas Content: |
<= 0.1% |
| Cleanness: |
<= Nas 6 Grade |
| Working Noise: |
<=65---80db(a) |
Product Description
TYA Multi-function vacuum oil purifier
TYA Multi-function vacuum oil purifier is mainly used for management unqualified lubricating oil, compressor oil, hydraulic oil, refrigeration oil and compressor oil etc, which can quickly remove gas, water, particles and volatile matter -such as alcohol ,gasoline, ammonia- from waste oil .And after purified ,it can restore the oil's viscosity ,flash point and other performance. The water content is less than 50 ppm, the gas content is less than 0.1% In the purified oil which can reuse again in various industrial equipments absolutely.
Advantages:
Good economic benefits, widely application, it is suitable for purifying various old lube oil in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway and so on.
Features:1. Double primary-filter structure, large capacity for holding particles, Multi-stage filtration system to ensure high filtration precision.
2. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
3.Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, ect.)
4. Automatic backwashing system, improving working efficiency
5. Advanced medium cooling system
6. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
8. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Technical Parameters:
Index name |
Unit |
TYA-10 |
TYA-20 |
TYA-30 |
TYA-50 |
TYA-100 |
TYA-150 |
TYA-200 |
TYA-300 |
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ25 |
Φ32 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
Weight |
kg |
350 |
380 |
400 |
450 |
750 |
880 |
1100 |
1300 |
Dimension |
L |
mm |
1500 |
1500 |
1500 |
1600 |
1750 |
1900 |
1950 |
2100 |
W |
mm |
1000 |
1050 |
1050 |
1150 |
1150 |
1600 |
1600 |
1700 |
H |
mm |
1600 |
1600 |
1650 |
1700 |
1750 |
1950 |
1950 |
1950 |
Working vacuum |
MPa |
-0.06----0.095 |
Working pressure |
MPa |
<= 0.4 |
Temperature range |
C |
20 ---80 |
Demulsifying value |
min |
<=15/min(GB/F7035) |
Water content |
ppm |
<=100 |
Gas content |
% |
<= 0.1 |
Cleanness |
|
<= NAS 6 grade |
Power supply |
|
380V 50HZ 3Ph (As per user's option) |
Working noise |
dB(A) |
<=65---80 |
Heating power |
Kw |
36 |
40 |
45 |
60 |
80 |
110 |
145 |
160 |
Total power |
Kw |
38 |
42 |
47 |
65 |
96 |
124 |
157 |
178 |

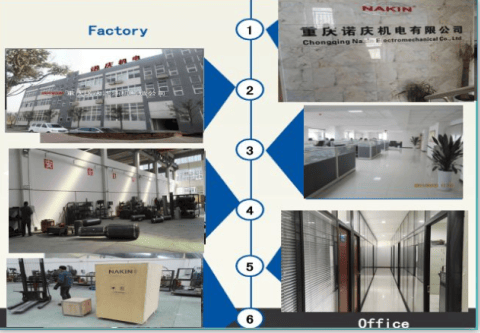

Company Show:
