| Prod Model: |
HTM12848A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Glass Size: |
100.3*45mm |
| Screen Size: |
1.54inch |
Product Description

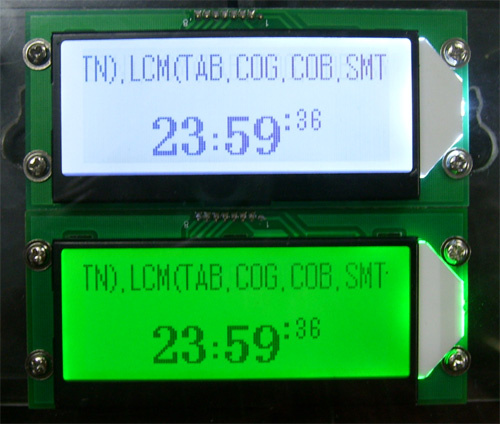

| HTM12848A |
| LCD display mode: COG +PCB STN-YG, positive, and transflective |
| Resolution: 128 x48dots |
| Outline dimensions: 100.3*45mm |
| Viewing area: 66.52*24.89mm |
| Controller:ST7565 R |
| Backlight: LED(IF=15mA TYP.VF=3.0V) |
| Operating voltage: 3.0V |
| Viewing angle: 6 o'clock |
| Operating temperature: -10 to +60 degrees |
| Storage temperature: -20 to +70 degrees |
| Driving method :1/65duty .1/9Bias |
| Description: string and can be |
Monochrome M00120 OLED display module
Size: 1.12
Lattice: 96 * 96
Color: White/gray level 16 / color
Thickness: 1.3
Glass size: 27.0 * 30.1 mm
Horizon size: 20.135 * 20.135 mm
Like a number size: 0.21 * 0.21 mm
Binding mode: COG FPC
Support 6800/8080 / SPI, I2C interface
Application range
Monochrome M00980 OLED display module
Size: 1.3
Lattice: 128 * 64
Color: White/blue
Thickness: 1.43
Glass size: 29.42 * 14.7 mm
Horizon size: 20.135 * 20.135 mm
Like a number size: 0.23 * 0.23 mm
Binding mode: COG FPC
Support 6800/8080 / SPI, I2C interface
Application: Medical care, wrist pager, bluetooth pager, the U shield, etc
Monochrome M00071 OLED display module
Size: 1.04
Lattice: 128 * 32
Color: Blue/white
Thickness: 1.6
Glass size: 30.4 * 14.5 mm
Horizon size: 25.58 * 6.38 mm
Like a number size: 0.2 * 0.2 mm
Binding mode: COG FPC
Support 6800/8080 / SPI, I2C interface
Application scope: Digital class, etc
Monochrome M00060 OLED display module
Size: 1.01
Lattice: 128 * 64
Color: White
Thickness: 1.6
Glass size: 28.22 * 21.63 mm
Horizon size: 23.02 * 11.5 mm
Like a number size: 0.18 * 0.18 mm
Binding mode: COG FPC
Support 6800/8080 / SPI, I2C interface
Application scope: Digital class, etc
Monochrome M00596 OLED display module
Size: 1.54
Lattice: 128 * 64
Color: White/blue
Thickness: 1.45
Glass size: 42.04 * 27.22 mm
Horizon size: 35.052 * 17.516 mm
Like a number size: 0.274 * 0.274 mm
Binding mode: COG FPC
Support 6800/8080 / SPI, I2C interface
Application: Application of industrial control, instrumentation, consumer electronics, etc
WEB: http://www.lcdmodule.com.cn
Liquid Crystal Display (LCD) have many manner of classification, such as / it can be divided into communication tools/ household, appliances, laptop computer, transportation, metering equipment, instrumentation and education apparatus, and other types of recreation facilities by product's use/ and can be divided into positive and negative both categories by the display mode /it can be divided into reflective/transflective/transmissive etc by optical model/ can be divided into type TN, HTN, STN-and FSTN type by the LCD category/ can be divided into yellow, and green, gray, black and white, and blue by the color model/ can be divided into 6/12 O'clock and others by the direction of observation
