Graphic LCD Module Cog12832-Home Appliances

Name: Graphic LCD Module Cog12832-Home Appliances
Brand: ec-portal.com
SKU: 736675795
Availability: InStock
Rating: 5 (98 reviews)

Price:	US $ 3.5-3.8/Piece
Trade Terms:	EXW
Min Order:	100/Piece
Pay Type:	T/T

Send Inquiry

Showroom Product Company Profile

Prod Model:	HTG12832F-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution: 128 X32dots:	Outline Dimensions: 63.0*27.5mm
Type:	Graphic
Display Technology:	COG
Usage:	Small-sized LCM

Product Description

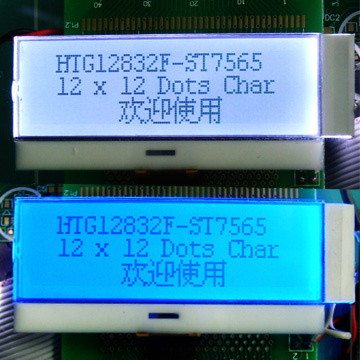

HTG12832F-3
LCD display mode: COG FSTN, positive, and transmissive
Resolution: 128 X32dots
Outline dimensions: 63.0*27.5mm
View Size: 59.0*17.5mm
Controller: ST7565 R
Backlight: White and blue LED
Operating voltage: 3.0V
Viewing angle: 12 o'clock
Operating temperature: -10 to +60 degrees
Storage temperature: -20 to +70 degrees
Driving method: 1/33 duty. 1/6Bias
WEB: http://www.lcdmodule.com.cn

Liquid Crystal Display (LCD) have many manner of classification, such as / it can be divided into communication tools/ household, appliances, laptop computer, transportation, metering equipment, instrumentation and education apparatus, and other types of recreation facilities by product's use/ and can be divided into positive and negative both categories by the display mode /it can be divided into reflective/transflective/transmissive etc by optical model/ can be divided into type TN, HTN, STN-and FSTN type by the LCD category/ can be divided into yellow, and green, gray, black and white, and blue by the color model/ can be divided into 6/12 O'clock and others by the direction of observation
