| Prod Model: |
GH1602-2505 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gh1602-2505 |
| Gh1602-2505: |
COB |
| Display Type: |
Character, Stn, Negative or Positive, Transmissive |
| Outline Dimension: |
88.5*29.3*13.0 |
| Controller: |
Splc780d |
| Backlight: |
White LED |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Infrared |
| Type: |
Character |
| Response Time: |
10ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |

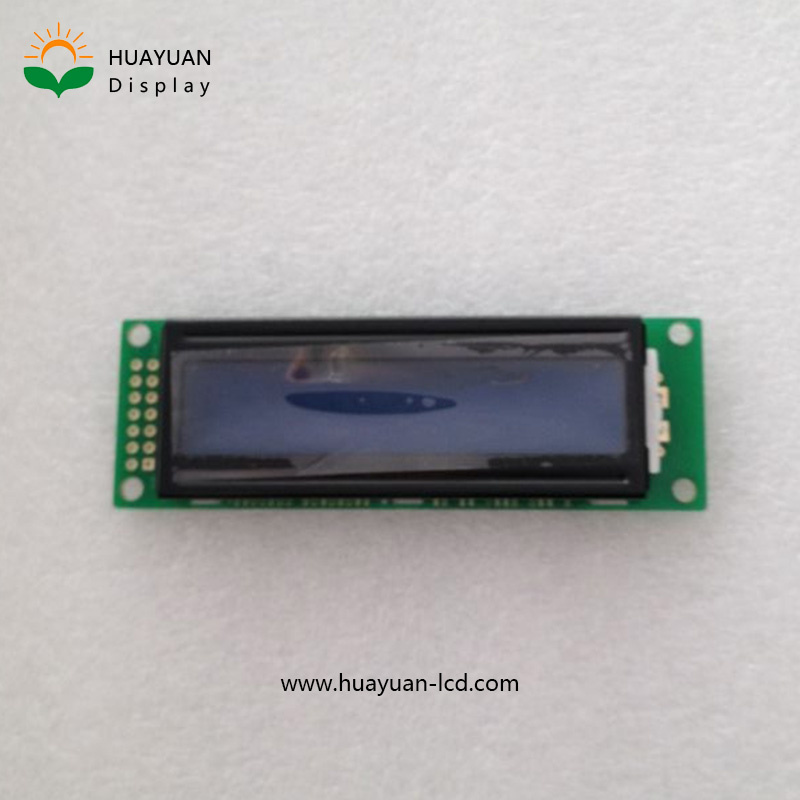

Product Description
Screen size 2.5"(Diagonal)
Display color Display color: Black
Background color: Y/G
Type STN
Viewangle direction 6'clock
Driver mode 1/64 DUTY 1/9 BIAS
Backlight LED
Controller IC ST7065/7066
Data bus 6800 interface and 8-bit
Temperature range Operation: -20 oC ---- +70oC
Storage: -30 oC ---- +80oC
Numbr of Dots 16× 2
Dot size 0.56 x 0.61mm
Dot pitch 0.60 x 0.65mm
Viewing size 64.3 x 16.3mm
Active area 55.46 x 10.76mm
Outline dimension 88.5 x29.3x 11.8mm Max.
| Model: | GH1602-2505 |
| Construction | COB |
| Display Type | STN |
| Operating Voltage (VDD) | 3.3V,5V |
| Backlight Voltage(VBL) | 3.3V,5V |
| Operating Temperature (degree Celsius) | -20°C~70°C |
| Storage Temperature (degree Celsius) | -30°C~80°C |
| Viewing Direction | 6:00 |
| Dot Matrix | 16x2 |
| Viewing Area | 64.5*13.8 |
| Active Area | 55.45*10.75 |
| Outline Dimension | 88.5*29.3*13.0 |
| Controller | SPLC780D |
| Backlight | LED,White |
| FAQ |
| Q1: Are you a factory or trading company? |
| A1: We are manufacturer. |
| Please refer to our company show |
| Q2: Where is your factory located? How can I visit there? |
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3: How can I get some samples? |
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount. |
| Q4: How does your factory do regarding quality control? |
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification. |
| Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time: 5-7 days for sample and 25-30 days for mass production. |
| Cooperate Supplier: Tianma, Innolux, Sumsung,Varitronix, CPT, BOE, HSD, Chi mei |
| Exhibition information: Our company will participate 2016 electronics exhibition in Munich, Germany. |
| Related products: |
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized. |
| Application: |
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics. |
