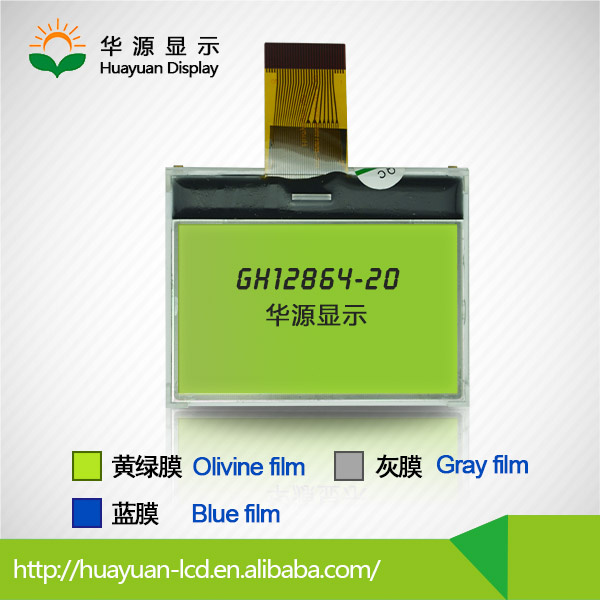

| Prod Model: |
GH12864-20 |
| Model: |
Gh12864-20 |
| Construction: |
Cog |
| Display Type: |
Stn |
| Operating Voltage (Vdd): |
3.3V,5V |
| Operating Temperature (Degree Celsius): |
'-20~70 |
| DOT Matrix: |
128*64 |
| Viewing Area: |
48.00*36.00 |
| Active Area: |
44.77*30.05 |
| Outline Dimension: |
54.00*45.00*5.50max |
| Controller: |
St7565r |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Infrared |
| Type: |
Graphic |
| Response Time: |
10ms |
| Viewing Angle: |
MVA |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Non-Customized |
Product Description
Quick Details
- Place of Origin: China (Mainland)
- Brand Name: Huyaun
- Model Number: GH12864-20
- Type: COG
- Display Type: STN
- Dot Matrix: 128*64
- Viewing Area: 50.6*31.00
- Outline Dimension: 56.6*44.2*7.65MAX
- Controller: UC1601
- LCD Type: STN/negative/Blue/transmissive
- Duty/bias: 1/65 duty 1/9bias
Packaging & Delivery
| Packaging Details: | in an anti-statics bag packed in carton or according to the customer's requirement |
|---|
ITEM Norminal dimensions Lcd mode 128*64 Dots Graphic Module dimension 56.6(W)*44.2(H:not include the FPC)*7.65MAX (T) Viewing area 50.6(W) * 31.00(H) Active area 46.562(W)*27.682 (H) Dot pitch 0.364W) * 0.433(H) Dot size 0.334 (W) * 0.403(H) Duty/bias 1/65 duty, 1/9 bias LCD STN//Negative/Blue/Transmissive Viewing direction 6 o'clock Driver UC1601How to running the orders with old customers?
Step1. Send your original drawing paper or samples or photos, If you have not these information, tell us your idea.
Step2. According to your details, we give you some advise and good price.
Step3. Negotiate the technical dates after that we will send you the exact quotation
Step4. You arrange the tooling charge payment.
Step5. We make design paper and waiting for your confirmation in two days.
Step6. We make new samples for your testing with in two weeks
Step7. After samples confirmed, we are running the production.
Step8. You arrange the last payment, we sending goods to the ports.
We hope to build a long-term business relationship with you. Believe we are you best supplier!
If you have any questions or queries, please do not hesitate to contact us. Welcomed to visit any of my other items. We are glad to help you!
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| NC | NC | NC | NC | VLCD | V+ | V- | B- | B+ | VSS |
| 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| VDD | BM1 | BM0 | D7 | D6 | D5 | D4 | D3 | D2 | D1 |
| 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 |
| D0 | WR1 | WR0 | CD | RST | CS0 | NC | NC | NC | NC |
