| Prod Model: |
ZYM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Vacuum: |
-0.08~-0.099MPa |
| Working Pressure: |
< 0.4 MPa |
| Dielectric Strength: |
>70kv |
| Water Content: |
Less Than 3 Ppm |
| Gas Content: |
Less Than 0.1% |
| Cleanness: |
< Nas 6 Grade |
| Vacuum Pump: |
Leybold, Nanguang |
| Oil Pump: |
Karach |
| Function: |
Remove Water, Gas, Impurities, etc. From Oil |
| Structure: |
Double Stages Vacuum System |
| Application: |
Insulating Oil |
| Voltage: |
220V/380V/400V/415V/460V/480V |
| Folw Rate: |
1800~18000 Liter Per Hour |
Product Description
Product Description:
Application:
ZYM is vacuum insulating oil purifier plant, which is special for treating various insulating oil, it can remove water, gas, impurity from insulating oil effectively, Improve oil performance, treated oil will reuse again. ZYM Mobile insulating oil purifier, It is very good for outdoor working, like the outdoor insulating oil treatment, ZYM is easy to move the far-way place,it is waterproof, dustproof.
Features:
1. Mobile (trailer) type, completely closed structure, waterproof, dustproof, move easy.
2. Installation of car tyres, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Advantages:
Mobile (trailer) type, completely closed structure, waterproof, dustproof, it can move long distance working in field.
Oil color contrast:

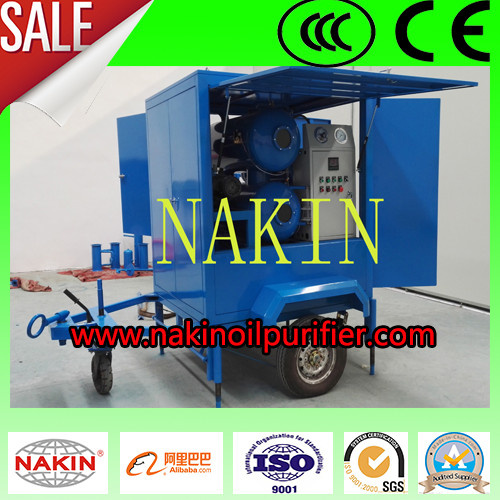

Machine photo:
Technical Parameters:
ndex name | Unit | ZYM-30 | ZYM-50 | ZYM-65 | ZYM-100 | ZYM-150 |
Flow rate | L/H | 1800 | 3000 | 4000 | 6000 | 9000 |
Working vacuum | MPa | -0.08~-0.099 |
Working pressure | MPa | ≤ 0.4 |
Temperature range | ºC | 20 ~80 |
Dielectric strength | KV | ≥ 70 |
Water content | ppm | ≤ 3 |
Gas content | % | ≤ 0.1 |
Particles size | μ | ≤ 1 |
Power supply | | 380V 50HZ 3Ph (As per user's option) |
Working noise | dB(A) | ≤65~85 |
Heating power | Kw | 24 | 30 | 40 | 60 | 90 |
Total power | Kw | 27.5 | 35.5 | 48.5 | 68 | 105 |
Inlet(Outlet) | mm | Φ25 | Φ25 | Φ42 | Φ50 | Φ50 |
Purifier weight | kg | 550 | 720 | 830 | 950 | 1120 |
Trailer weight | kg | 300 | 300 | 450 | 450 | 500 |
Purifier Dimension | L | mm | 1400 | 1400 | 1650 | 1700 | 1820 |
W | mm | 1100 | 1100 | 1200 | 1200 | 1320 |
H | mm | 1300 | 1300 | 1500 | 1500 | 1620 |
Trailer Dimension | L | mm | 2750 | 2750 | 3000 | 3080 | 3400 |
W | mm | 1400 | 1400 | 1620 | 1620 | 1710 |
H | mm | 1100 | 1100 | 1100 | 1100 | 1100 |
