| Prod Model: |
TM-8600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wight: |
1200g |
| Frequency Range: |
136-174MHz/400-480MHz |
| Output Power: |
60W/45W |
| Channel: |
128 |
| OEM/ODM Order: |
Yes |
| Offer Sample Testing: |
Yes |
| FM Radio Function: |
Yes |
| Ani ID: |
Yes |
| Vfo Step Setting: |
5/6.25/10/12.5/20/25/50kHz |
| Export Markets: |
Global |
| Talk Range: |
15-20km |
| Style: |
Vehicle Mounted |
| IP Rating: |
IP67 |
| Usage: |
Car |
| Type: |
Vehicle Station |
| Battery Type: |
Lithium Battery |
| Display: |
With Display |
| Working Frequency Range: |
UV Double Section |
| Certification: |
RoHS |
Product Description

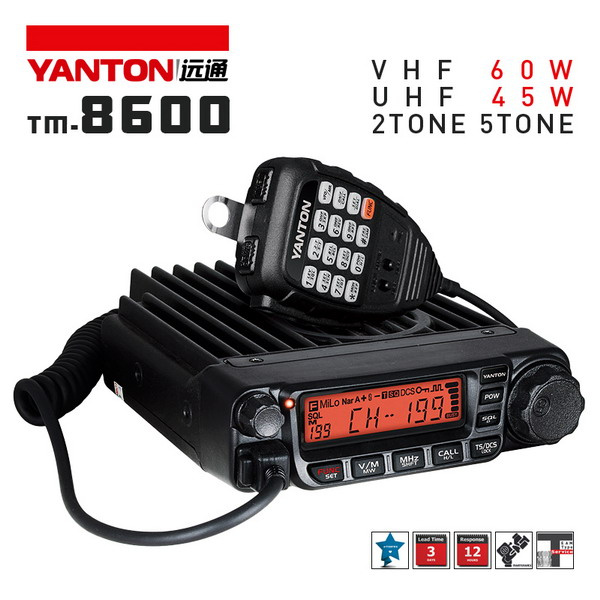

Mobile Radio High Power 60W (YANTON TM-8600)
Product Description
Frequency Range: VHF:136-174MHz 245-245.9875MHz (220-260MHz)
UHF: 400-490MHz
Output Power: VHF: 10W/25W/60W
UHF: 45W/25W/10W
1750Hz Tone
CTCSS/DCS setting and scanning
0-9 SQL grade setting
Frequency/Channel scanning
High/Mid/Low power selectable
Voice compander
Repeater offset shift
Keypad lock function
Contact book
Battery voltage display
DTMF/2 tone/5 tone
ANI ID
Remote kill/ stun/ activate/ revive
Emergenvy alarm
Wide/Narrow band setting
TX inhibit
Busy Channel Lock-Out
Channel name editing
Reverse frequency
Talk around
Scrambler(Optional)
Voice prompt
Time-out Timer
Auto Power off
VFO step setting:5/6.25/10/12.5/20/25/50kHz
Model
TM-8600 mobile radio
General
Frequenvy Range
136-174/245-246/400-490MHz
Channel Capacity
200
Channel Spacing
5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability
2.5ppm
Operating Temperature
-20°C ~ + 60°C
Operating Voltage
13.8V DC ± 15%
Dimension(HxWxD)
145mm x190mm x47mm
Weight(with bracket)
1200g
Receiver
Reference Sensitivity
0.25V / 0.35V
Operating Bandwidth
60dB 12.5KHz /70dB 25KHz
Adjacent Channel Selectivity
60dB 12.5KHz 70dB 25KHz
Inter-modulation Rejection
≥60dB/ ≥65dB
Spurious Response Rejection
≥70dB
Rated Audio Response
+1-+3dB
Rated Audio Distortion
<5%
FM Hum&Noise
≥40dB 25KHz /≥45KHz 12.5KHz
Transmitter
RF Power
45W/25W/10W(UHF)/60W/25W/10W(VHF)
Frequency Modulation
11kΦF3E / 16kΦF3E
Modulation Distortion
<5%
FM Noise
≥36dB 25KHz /≥40KHz 12.5KHz
Adjacent Channel Power
≥60dB 12.5KHz /≥70KHz 25KHz
Audio Response
+1-+3dB
Audio Distortion
<5%
Packaging & Shipping
1. Please contact us at first time for bulk order. Larger discount wait for you.
2. OEM/ODM service, we can design packing box and Logo mark the interphone as your requirement.
3. interphone Sample time: 7 days
4. Payment: T/T, Western union and Paypal
5. Warranty: One year for main body radio, 6 months for accessories
6. Lead time:3 days for 500 units,15 days for 10000units
7. Shipment ways: By sea or by air
Company Information
About us:
Quanzhou YANTON Electronics Co.,Ltd is a professional radio manufacturer and exporter ,which has integrated in R & D, production, sales and service for seven years. Because of products innovation and production efficiency,we win a lot of OEM and ODE orders.Some of products have been gained FCC, CE SIRIM certification,and we have gained high reputation from our customers.
Our Services
Why choose us?
1. Alibaba assessed 6 years gold supplier.
2. Reply your inquiry in 24 working hours.
3. Well trained experienced staff reply all your questions.
4. Customized design is available, OEM are welcomed.
5. Fast delivery to customers all over the world after deposit.
6. 100% QC inspection before shipment.
7. One year warranty for interphone radios, six month for accessories.
FAQ
Maintenance:
Radio transceiver should be treated with care. The suggestions below will help you to fulfill any warranty obligations and to enjoy this product for many years
Do not attempt to open the unit. Non-expert dealing with the unit may damage it.
When using regulated power supply, take notice of power voltage must be between 6V and 8V to avoid damage the radio
Do not store the radio under the sunshine or in hot areas. High temperatures will shorten the life of electronic devices, and warp or melt certain plastics.
Do not put the radio in dusty, dirty areas.
If it appears that the radio diffuses peculiar smell or smoke, please turn off it immediately and take off charger or battery in the radio, then contact with YANTON agency.
Do not transmit without antenna
