| Prod Model: |
TM-8600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wight: |
1200g |
| Frequency Range: |
136-174MHz/400-480MHz |
| Output Power: |
60W/45W |
| Channel: |
128 |
| OEM/ODM Order: |
Yes |
| Offer Sample Testing: |
Yes |
| FM Radio Function: |
Yes |
| Ani ID: |
Yes |
| Vfo Step Setting: |
5/6.25/10/12.5/20/25/50kHz |
| Export Markets: |
Global |
| Talk Range: |
15-20km |
| Style: |
Vehicle Mounted |
| Working Frequency Range: |
UV Double Section |
| Type: |
Vehicle Station |
| IP Rating: |
IP67 |
| Certification: |
RoHS |
| Usage: |
Car |
| Battery Type: |
Lithium Battery |
| Display: |
With Display |
Product Description

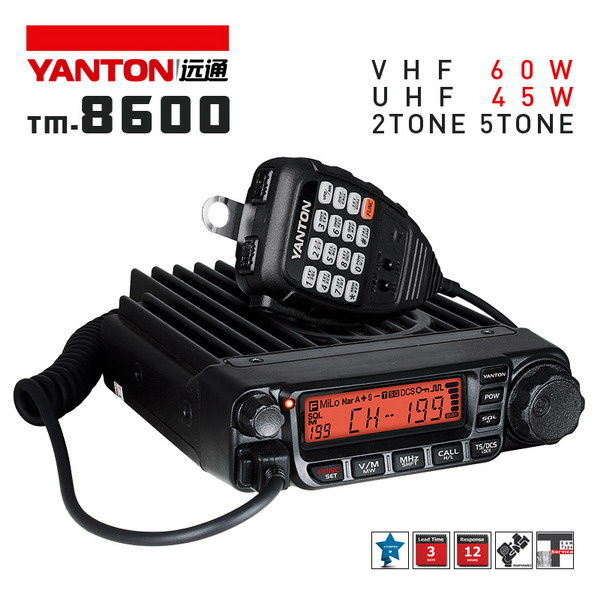

Multi-Function Mobile Radio (YANTON TM-8600)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Main features:
1. Frequency Range: VHF: 136-174MHz 245-245.9875MHz (220-260MHz)
UHF: 400-490MHz
2. Output Power: VHF: 10W/25W/60W
UHF: 45W/25W/10W
3.1750Hz Tone
4. CTCSS/DCS setting & scanning
5.0-9 SQL grade setting
6. Frequency/Channel scanning
7. High/Mid/Low power selectable
8. Voice compander
9. Repeater offset shift
10. Keypad lock function
11. Contact book
12. Battery voltage display
13. DTMF/2 tone/5 tone
14. ANI ID
15. Remote kill/ stun/ activate/ revive
16. Emergency alarm
17. Wide/Narrow band setting
18. TX inhibit
19. Busy Channel Lock-Out
20. Channel name editing
21. Reverse frequency
22. Talk around
23. Scrambler(Optional)
24. Voice prompt
25. Time-out Timer
26. Auto Power off
27. VFO step setting: 5/6.25/10/12.5/20/25/50kHz
| Frequency Range: VHF:136-174MHz 245-245.9875MHz (220-260MHz) UHF: 400-490MHz |
| Output Power: VHF: 10W/25W/60W UHF: 45W/25W/10W |
| 1750Hz Tone | CTCSS/DCS setting & scanning |
| 0-9 SQL grade setting | Frequency/Channel scanning |
| High/Mid/Low power selectable | Voice compander |
| Repeater offset shift | Keypad lock function |
| Contact book | Battery voltage display |
| DTMF/2 tone/5 tone | ANI ID |
| Remote kill/ stun/ activate/ revive | Emergenvy alarm |
| Wide/Narrow band setting | TX inhibit |
| Busy Channel Lock-Out | Channel name editing |
| Reverse frequency | Talk around |
| Scrambler(Optional) | Voice prompt |
| Time-out Timer | Auto Power off |
| VFO step setting:5/6.25/10/12.5/20/25/50kHz |
| Model | TM-8600 |
| General |
| Frequenvy Range | 136-174/245-246/400-490MHz |
| Channel Capacity | 200 |
| Channel Spacing | 5/6.25/8.33/10/12.5/15/20/25/30/50KHz |
| Freruency Stability | 2.5ppm |
| Operating Temperature | -20°C ~ + 60°C |
| Operating Voltage | 13.8V DC ± 15% |
| Dimension(HxWxD) | 145mm x190mm x47mm |
| Weight(with bracket) | 1200g |
| Receiver |
| Reference Sensitivity | 0.25V / 0.35V |
| Operating Bandwidth | 60dB 12.5KHz /70dB 25KHz |
| Adjacent Channel Selectivity | 60dB 12.5KHz 70dB 25KHz |
| Inter-modulation Rejection | ≥60dB/ ≥65dB |
| Spurious Response Rejection | ≥70dB |
| Rated Audio Response | +1-+3dB |
| Rated Audio Distortion | <5% |
| FM Hum&Noise | ≥40dB 25KHz /≥45KHz 12.5KHz |
| Transmitter |
| RF Power | 45W/25W/10W(UHF)/60W/25W/10W(VHF) |
| Frequency Modulation | 11kΦF3E / 16kΦF3E |
| Modulation Distortion | <5% |
| FM Noise | ≥36dB 25KHz /≥40KHz 12.5KHz |
| Adjacent Channel Power | ≥60dB 12.5KHz /≥70KHz 25KHz |
| Audio Response | +1-+3dB |
| Audio Distortion | <5% |
Quanzhou YANTON Electronics Co., Ltd. Has been a professional two way radio manufacturer integrating in R&D, Production, sales and service for Seven years. Our company has created and owned its famous brands such as YANTON and LSENG.
Our company has introduced advanced equipments in the world such as American HP8921, Germany Rohde & Schwarz SMC-50. We own standard production workshop, product laboratory and R&D room. We offer the cost effective products, and help our customers win the competitive advantage in the price and quality in the market.
Our company has 10 people of QC staff, 15 people of R&D staff, and 5 people of IQC staff. They have more than 5 years of work experience. We focus on new product innovation and quality control, and we invest 40% of profit in new product development. We have got a lot of OEM/ODM orders because of product innovation and efficiency.
We strictly implement ISO9001 quality management system, and we strictly check from raw material purchase, production and finished product testing, which can ensure high stability and consistency of products. Our products has been awarded "radio transmitting equipment and model approval", and also has got FCC, CE, SIRIM Certification. We have agents in many city and has exported to Malaysia, Vietnam, Middle East, Europe, USA and other countries. We have obtained high reputation from our users, distributors, agents for our good products and good sale service.
Let us work together to create a better tomorrow!
