| Prod Model: |
3.7V 3800mAh |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Length: |
150mm |
| Wire Model No.: |
UL1007 AWG18 |
| PCB: |
Sekio |
| Connector: |
Jst |
| Type: |
Lithium Battery |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
4.5V |
| Size: |
Prismatic |
| Compatible Battery Type: |
Lithium Battery |
Product Description

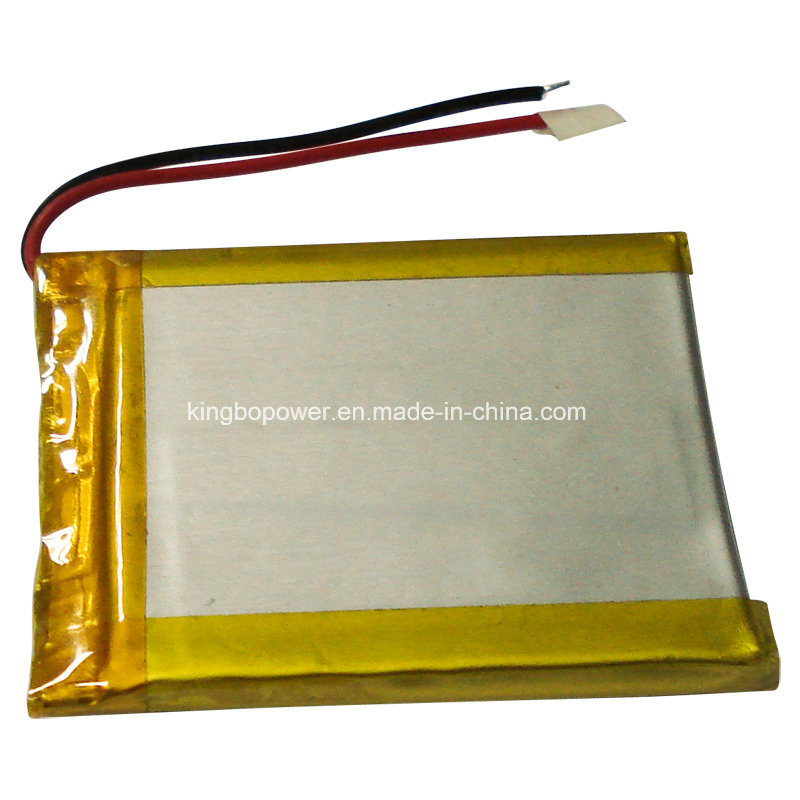

Product Name: Mobile Phone Rechargeable Lithium ion Battery(3800mAh)
Features :
A. Small Size:1/3 of NiMH Battery
B. Long Cycle life
C . Wide Capacity Range: 80mAh-60Ah
D. Stable Performance
E. No memory effect
F. Light Weight
G. Safety
H. Customized Batteries
Certification: UL , RoHS, CE, KC, UN38.3,MSDS
Useage
Portable speaker,Muti car jump starter , power bank ,Auto cleaner,GPS tracking, Digital ADSL device ,Flashligting , emergency lighting , laptop , solar board, ups power ,smart phone ,wireless microphone, MP3,Walk man, Cordless Phone, Notebook, Video Camera, Digital Camera, Digital Products, Portable DVD,Mobile Communication, Blue tooth Headset, Electronic Toys,Game Player, Solar LED light, Emergency lighting , Power tools, E-bike, Medical Equipment,etc.
Services
A. OEM&ODM
B. Door to Door Service
C. Professional Technical Support
D. Warranty: 12Monthes-24Monthes
Sample Time: 8-12 days after confirmed specification
Payment Term: T/T , Paypal ,Western Union
Speicification
NO.
| Item | Specifications |
| 1 | Nominal capacity | 3800mAh 0.2C Discharge |
| Min capacity | 3750mAh 0.2C Discharge |
| 2 | Nominal voltage | 3.7V |
| 3 | Charge current | Standard Charge :0.2C |
| 4 | Standard Charging method | 0.5C CC(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.01C
|
| 5 | Charging time | Standard Charging
Approx4.5 hours |
| 6 | Max.discharge current | Constant current 2C end voltage 3.0V |
| 7 | Standard Discharge Current | Constant current 0.2 C end voltage 3.0V |
| 8 | Discharge cut-off voltage | 3.0V |
| 9 | Charge cut-off Voltage | 4.2V |
| 10 | Initial Impedance | ≤80mW |
| 11 | Weight | Approx:90g |
| 12 | Operating temperature | Charging:0ºC~45ºC
Discharging:-20ºC~60ºC |
| 13 | Storage temperature | -5ºC~35ºC |
| 14 | Storage Humidity | ≤75% RH |
| 15 | Appearance | Without scratch,distortion,contamination and leakage |
| 16 | Standard environmental condition
| Temperature: 23±5ºC
Humidity : 45-75%RH
Atmospheric Pressure:86-106 Kpa |
Cautions in use
To ensure proper use of the battery please read the manual carefully before using it. Handling
· Do not expose to, dispose of the battery in fire.
· Do not put the battery in a charger or equipment with wrong terminals connected.
· Avoid shorting the battery
· Avoid excessive physical shock or vibration.
· Do not disassemble or deform the battery.
· Do not immerse in water.
· Do not use the battery mixed with other different make, type, or model batteries.
· Keep out of the reach of children.
Charge and discharge
· Battery must be charged in appropriate charger only.
· Never use a modified or damaged charger.
· Do not leave battery in charger over 24 hours.
Storage
· Store the battery in a cool, dry and well-ventilated area.
Disposal
· Regulations vary for different countries. Dispose of in accordance with local regulations.
