Kingbopower Technology Co., Ltd. >> Lithium Polymer Battery for Mobile Phone Payment Terminal

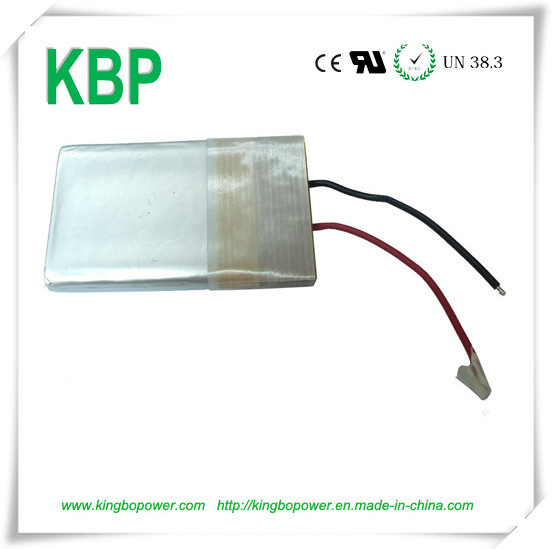

Lithium Polymer Battery for Mobile Phone Payment Terminal

Lithium Polymer Battery for Mobile Phone Payment Terminal
Price: US $ 1.9-2.0/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 2000/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: 3.7V 260Ah
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire Length: 150mm
Wire Model No.: UL1007 AWG18
PCB: Sekio
Type: Lithium Battery
Charger Type: Electric Charger
Nominal Voltage: 4.5V
Size: Prismatic

Product Description

Product NameLithium Polymer Battery for Mobile Phone Payment Terminal

Features :
A.  Small Size:1/3 of NiMH Battery
B.  Long  Cycle life
C . Wide Capacity Range: 80mAh-60Ah
D.  Stable Performance
E.  No memory effect
F.  Light Weight
G. Safety
H.  Customized Batteries

Certification: UL , RoHS, CE, KC, UN38.3,MSDS

Useage
Portable speaker,Muti car jump starter , power bank ,Auto cleaner,GPS tracking, Digital ADSL device ,Flashligting , emergency lighting , laptop , solar board, ups power ,smart phone ,wireless microphone, MP3,Walk man, Cordless Phone, Notebook, Video Camera, Digital Camera, Digital Products, Portable DVD,Mobile Communication, Blue tooth Headset, Electronic Toys,Game Player, Solar LED light, Emergency lighting , Power tools, E-bike, Medical Equipment,etc.

Services
A. OEM&ODM
B. Door to Door Service
C. Professional Technical Support
D. Warranty: 12Monthes-24Monthes

Sample Time: 8-12 days after confirmed specification

Payment Term: T/T , Paypal ,Western Union

Speicification
NO.

ItemSpecifications
1Nominal capacity           260mAh        0.2C Discharge
Min  capacity              250mAh        0.2C Discharge
2Nominal voltage             3.7V
3Charge current              Standard Charge :0.2C
4Standard Charging method 0.5C CC(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.01C

5Charging time               Standard Charging
Approx4.5 hours
6Max.discharge current     Constant current 2C end voltage 3.0V
7Standard Discharge CurrentConstant current 0.2 C  end voltage 3.0V
8Discharge cut-off voltage   3.0V
9Charge cut-off Voltage     4.2V
10Initial Impedance          ≤80mW
11 Weight                   Approx:90g
12Operating temperature      Charging:0ºC~45ºC
Discharging:-20ºC~60ºC
13Storage temperature        -5ºC~35ºC
14Storage Humidity         ≤75% RH
15Appearance                 Without scratch,distortion,contamination and leakage
16Standard environmental condition

Temperature: 23±5ºC
 Humidity :  45-75%RH
Atmospheric Pressure:86-106 Kpa

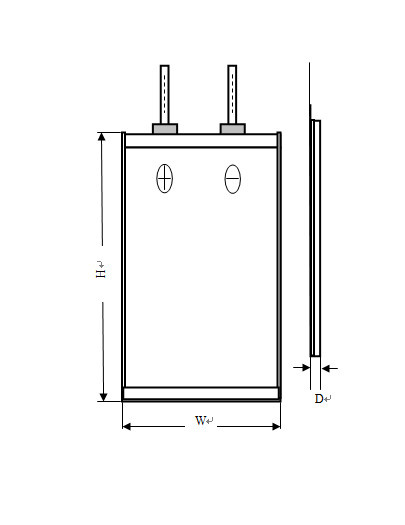

  Simple Drawing


Note: The drawing is battery cell darwing , if u have wires , PCB/BMS,connectors, code/label requirements , Please let us know it , and we will make detailed datasheet and specified drawing as your request.

Cautions in use
To ensure proper use of the battery please read the manual carefully before using it. Handling
·     Do not expose to, dispose of the battery in fire.
·     Do not put the battery in a charger or equipment with wrong terminals connected.
·     Avoid shorting the battery
·     Avoid excessive physical shock or vibration.
·     Do not disassemble or deform the battery.
·     Do not immerse in water.
·     Do not use the battery mixed with other different make, type, or model batteries.
·     Keep out of the reach of children.
Charge and discharge
·     Battery must be charged in appropriate charger only.
·     Never use a modified or damaged charger.
·     Do not leave battery in charger over 24 hours.
Storage
·     Store the battery in a cool, dry and well-ventilated area.
Disposal
·     Regulations vary for different countries.  Dispose of in accordance with local regulations.


KINGBOPOWER specialized in manufacturing and selling lithium ion batteries, Li-ion Battery, Unicycle Scooter Battery, Monocycle Battery, Unicycle Battery, Eelectronic Scooter Battery, Battery Pack, lithium ion battery 18650, Rechargeable battery, lithium battery electric bike, battery for motorcycle, Polymer lithium batteries cell, battery pack, rechargeable batteries, Boat Battery, Yachts Battery, Golf Car Battery, car jump starter, power bank.

From 2013, KINGBOPOWER developing new business wireless product

Wireless product: Huawei modem E392U-12, E392U-22, VDSL2 Communication Module

Besides, We can help u sourcing authentic brand item in the shortest time. Many customer comes from Europe, South America, Italy, Russia, Ukrain, Brazil, Switerland and etc.

Our products are easy to use and recognized for design, quality, safety, reliability, and performance. Every aspect of our products are carefully constructed with the individual user in mind. The materials used for our products are commercial grade and stringently tested to meet the high expectations of our customers. All our products are FCC, CE, and RoHS certified to ensure it's safety and reliability worldwide.

Kingbopower deeply believe that good service and professional experience will completely meet you need. Choose us, Trust US, Let us make win-win profit together. Kingbopower will do everything in our power to actually help you increase your margins and cash flow, while lowering the risks and providing you with the best quality product for the lowest possible price!
