Prod Model: |
M 60 & M 120 & M 240 &M 350 & M 550 & M 650 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Professional Amplifier |
Used For: |
Professional |
Function: |
Amplifier Combined |
Usage: |
School,Hotel,Station,etc |
Voltage: |
70V, 100V |
Product Description
Description

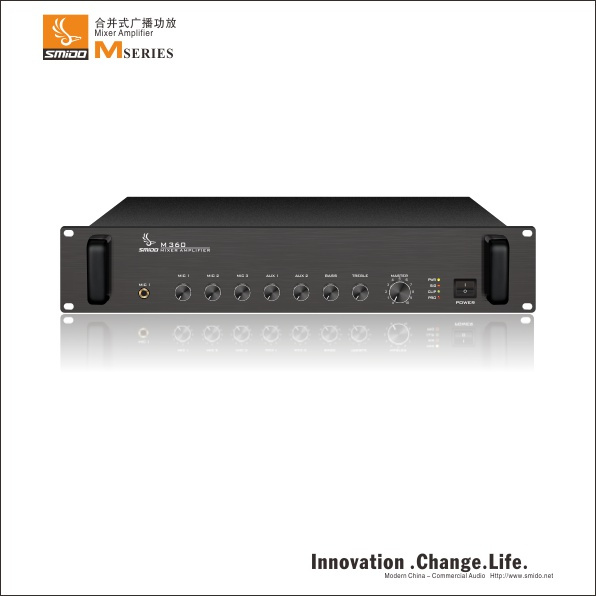

n The basic public address mixer amplifiers have power ratings from 60W, 120W, 240W, 350W,500W to 650W.
n They are featured of 3 microphone inputs, 2 aux inputs and 1 EMC input.
n Priority muting is achieved via EMC for overriding other inputs except Mic1 on front panel.
n Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temp.
Feature
n Mixer amplifier for paging and background music system
n Rated power from 60W, 120W, 240W, 350W, 500W to 650W
n 2U rack mount (less than 350W) and 3U rack mount design
n 70V, 100V and low impedance 4-16ohm speaker output
n Three Mic inputs by phone jack type
n Mic 1 with VOX priority and VOX level on front panel
n Mic 2-3 by phone jack on rear panel
n Two Aux Inputs and 2 line inputs for spare use
n One EMC priority input
n EMC has priority over all inputs except MIC1
n Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control
n Short circuit, overload and high temp protection
Optional
n DC 24V available on less than 500W models
n Panel with/without handhold
n Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier
Specification
Model | M 350 | M 550 | M 650 |
Rated Power Output | 350W | 500W | 650W |
Speaker Outputs | 70V, 100V & 4~16 |
Input Sensitivity & Impedance | MIC 1, 2, 3: 5mV/600 , Unbalanced phone jack input MIC 2, 3: 775mV/10K, Unbalanced RCA input AUX 1, 2: 350mV/10K , Unbalanced RCA input EMC: 775mV/10K , Unbalanced RCA input |
Output Sensitivity & Impedance | MIX OUT: 1V/470 , Unbalanced RCA output |
Tone | Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz |
Frequency Response | 50Hz~16KHz(+1dB, -3dB) |
S/N Ratio | MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB |
THD | Less than 0.5% at 1KHz, 1/3 rated power |
Muting Function | MIC 1 overrides other input signals with 0-30dB attenuation |
Crosstalk | ≤50dB |
Cooling | Fan automatically start up when temp reaches 55ºC |
Protection | High temp, overload & short-circuit |
Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V |
Power Consumption | 500W | 750W | 950W |
Weight | 13.96Kg | 15.72Kg | 17.8Kg |
Dimensions | 484 x 358x132mm |
Finish | Panel: aluminum plate, black Case: steel plate, black |
Model | M 350B | M 550B | M 650B |
Rated Power Output | 350W | 550W | 650W |
Speaker Outputs | 70V, 100V & 4~16 |
Input Sensitivity & Impedance | MIC 1, 2, 3: 5mV/600 , Unbalanced phone jack input MIC 2, 3: 775mV/10K, Unbalanced RCA input AUX 1, 2: 350mV/10K , Unbalanced RCA input EMC: 775mV/10K , Unbalanced RCA input |
Output Sensitivity & Impedance | MIX OUT: 1V/470 , Unbalanced RCA output |
Tone | Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz |
Frequency Response | 50Hz~16KHz(+1dB, -3dB) |
S/N Ratio | MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB |
THD | Less than 0.5% at 1KHz, 1/3 rated power |
Muting Function | MIC 1 overrides other input signals with 0-30dB attenuation |
Crosstalk | ≤50dB |
Cooling | Fan automatically start up when temp reaches 55ºC |
Protection | High temp, overload & short-circuit |
Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V |
Power Consumption | 500W | 750W | 950W |
Weight | 13.88Kg | 15.58Kg | 17.5Kg |
Dimensions | 484 x 358x132mm |
Finish | Panel: aluminum plate, black Case: steel plate, black |
