| Prod Model: |
M 2001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Speaker Material: |
Plastic |
| Monitor: |
LCD Screen |
| Application: |
Office,Control Room |
Product Description
Product use:

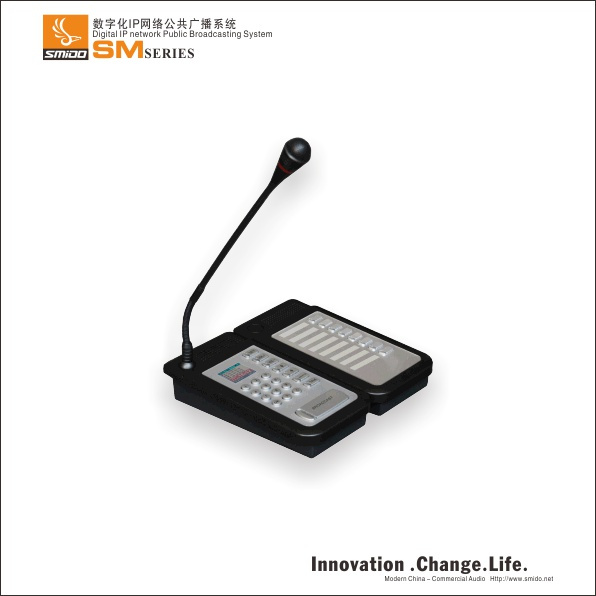

Professional network paging receiver
Installed in main control room, duty room or the office of the leadership, one-way broadcast (for point, area or region), two-way intercom and monitor
Product features:
The desktop design, black plastic panel, exquisite and elegant, sophisticated technology, modern.
The 1.8 Inch TFT LCD screen, 20 function keys and indicator lights, clear display, simple operation.
The external cascade operation panel, realize the "one button call".
The TFT true color LCD screen, 20 buttons and indicator lights.
The equipment with embedded computer technology and DSP audio processing technology design, the chip for high-speed industrial start-up time less than 1 second.
The microphone with direct input, light of permissions allow regional broadcasting propaganda, with voice intercom.
The built-in 2W frequency monitor speaker, clear voice, loud; call terminal or receive terminal call, to achieve two-way communication.
The strong directional microphone, ensure clear communication without interference.
The DC9V DC power supply interface.
The Ethernet port can have access, automatically obtain IP address, support cross network and cross routing.
Specification
| Model | M 2001 |
| Network Protocol | TCP,UDP,ARP,ICMP,IGMP |
| Network Chip Rate | 10/100Mbps |
| Audio Encoding | MP2/MP3/PCM/ADPCM |
| Audio Sampling And Bite Rate | 22.050KHz-44.1KHz,16bit,16Kbps-192Kbps |
| SNR,Frequency Response | ≥90dB,20Hz-16KHz |
| Network Sound Delay | Broadcast delay≤100ms |
| Display Screen | TFT1.8"LCD, 128x160 |
| Function component interface | Power input interface, microphone input interface, audio input interface, audio output interface, network interface |
| Power Supply | DC9V |
| Consumption | 5W |
| Weight | 1.50kg |
| Material | Plastic |
| Dimension | 320×124×94mm |
