Shenzhen Mansion Electronic Co., Ltd. >> Mini Class D Amplifier with 50W (AMP-D50)

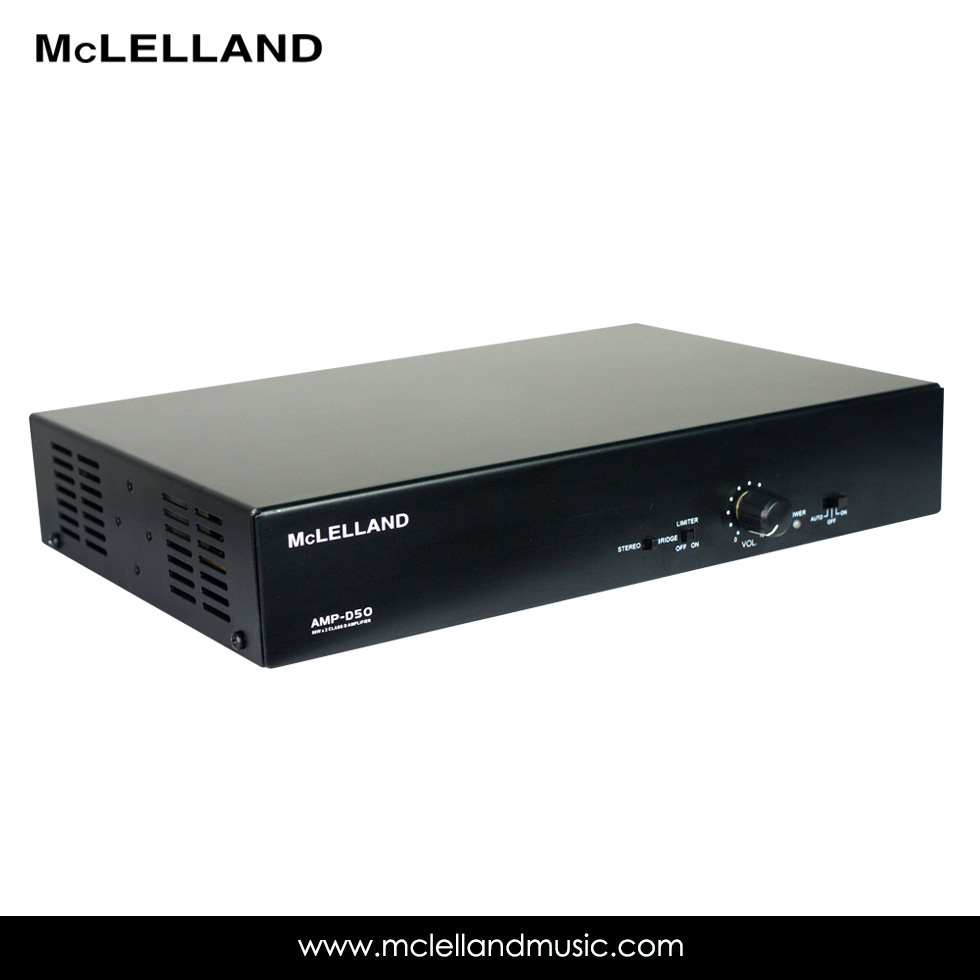

Mini Class D Amplifier with 50W (AMP-D50)

Mini Class D Amplifier with 50W (AMP-D50)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Prod Model: AMP-D50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Professional Amplifier
Function: Pre-amplifier
Usage: AV
Element Number: Push-Pull Amplifier
Output Number: 4
Used For: Civilian
Conductive Mode: D
Tube Type: IC Amplifier
Voltage: AC220V or AC110V
Sound Channel: 2 Channel Amplifier

Product Description

SPECIFICATION
Terminal Blocks: Speaker output,
3.5mm jack & RCA for Audio input
LIMITER ON/OFF SWITCH
AUTO SWITCH
Built-in switching power
Output power:50 W@4Ω THD1% RMS ( 70W MAX)
THD1%: 50W @4Ω
THD1%: 28 W @8Ω
S/N: -107dB 1K(4Ω)
THD: 1%(50W 4Ω)
Frequency Response: 10Hz~50KHz(-3dB)
Input Sensitivity: 300mV(50W 4Ω)
Input Impedance (Audio): 10K
Power output: AC 100~240 V 50/60Hz
Power consumption: 70W(50W 1% 4Ω)
Bridge mode support 100W for speak out ( Mono. Type)
Dimension: 271mm x 180mm x 45mm
Weight: 1.85kg. (Net)

Mansion Industry Co., Ltd. is a professional audio manufacturer, which includes R&D, design, sales and services department, was established in 1985, at the following address 5F, NO. 6, Szu-Wei Lane, Cheng Road, Hsin-Tien City, Taipei, Taiwan, R. O. C.

Our main products are Equalizers, Crossovers, Power Amplifiers, Video Signal Solution, MIDI Controller, USB/Firewire Audio Interface, Mixers, Digital Effect Processors, Speaker, Microphones and Home Installation Audio products.

We promote our own products all over the world, also we welcome the OEM cooperation. To keep the quality be perfect and satisfy customer's requirements is our company's top target.

At present, we own more than 300 employees. Among them, engineers and technical personnel fifty six people. The high-level employees group and advanced technique help to produce the products with competitive.

Mansion would like to set up a faithful partner relationship with every friend and provide the sincere service. We have been move a new factory about 16000 SQM located within the town of Shenzhen.
