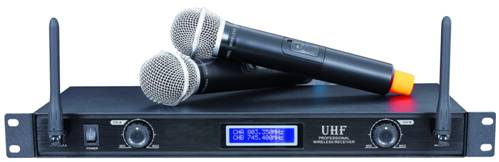

Micrphone (Bw-1668)

Name: Micrphone (Bw-1668)
Brand: ec-portal.com
SKU: 668379282
Availability: InStock
Rating: 4.3 (104 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	1
Pay Type:	L/C,T/T

Send Inquiry

Showroom Product Company Profile

Prod Model:	Bw-1668
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Directivity:	Bi-direction
Signal Transmission:	Wireless
Transducer Principle:	Electromagnetic Microphone
Application:	Voice

Product Description

RECEIVER:
Carrier frequency range: UHF614~814MHz
Oscillation Mode: Quartz controlled fixed frequency
Stability: 10PPM
Sensitivity: -105dB @ sinad=12 dB
S/N Ratio: >105dB
T. H. D.: <0.5% @ 1kHz
Image rejection: >85dB typical
Spurious rejection: >75 dB typical
Frequency response: 40Hz~18kHz
Range: 200 feet
Squelch control: Dual-squelch circuit
Output impedance: 2.2kΩ
Max. Output level: Balance: 0_400mv unbalance: 0_200mv
LED display
Power Supply: External DC power supply, 0.35A, 12~18V DC
Dimensions(mm): 420(L)× 45(H)× 195(D)
Weights(kg): 2.1

TRANSMITTER:
Power range: 30mW
Harmonic power: <40dB
LED display
VBATT: 1.5V*2
