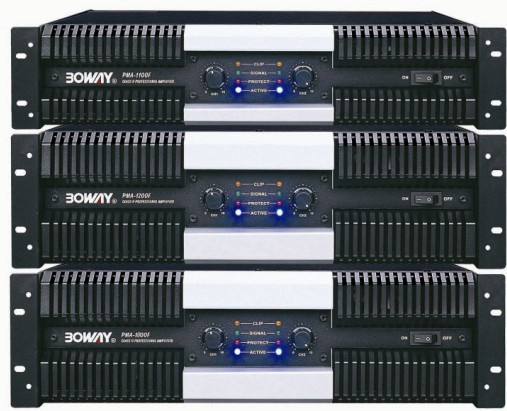

Amplifier (PMA-1200F)

Amplifier (PMA-1200F)
Price: Negotiable
Trade Terms: FOB
Min Order: 1
Pay Type: L/C,T/T
Prod Model: PMA-1200F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sound Channel: 2.1
Output Number: 4
Voltage: AC 220V
Function: Post Amplifier
Tube Type: Tube Amplifier
Element Number: Push-Pull Amplifier
Conductive Mode: AB

Product Description

BOWAY PMA-F Series professional power amplifier is designed with special features to meet the requirement of professional sound contractors by providing them power, fast response and accurate sound. With these features, PMA-F Series professional power amplifier is ideal solution for permanently installed sound systems. PMA-F series amplifier was designed based on Type H output circuit cope with excellent quality components which provides the maximum power to 1100Wx2 at 8 ohm with extra low distortion.
Type H output circuit
Full short circuit protection, Opern circuit protection
Overheat & overload protection
Peak power limiter
Clip indicator, Soft start
Dual speed fan motor cooling system
Input sensitivity selector, selector/bridgel/parallel selector
Input connectors: 6.35mm phone jacks, XLR connectors
Output connectors: Neutrik speakon 4, Versatile binding post
output power PMA-1100F PMA-1200F PMA-1200A
8 ohm 450W 500W 800W
4 ohm 900W 950W 1200W
8 ohm bridge made 1300W 1400W 2400W
Frequency response 20Hz-20KHz(+0/-1.5dB) 20Hz-20KHz(+0/-1.5dB) 20Hz-20KHz(+0/-1.5dB)
Input sensitivity 0.775V, 1v,   1.4V 0.775V, 1v,   1.4V 0.775V, 1v,   1.4V
Input impedance 20Kohm/10Kohm) 20Kohm/10Kohm 20Kohm/10Kohm
Signal to noise ratio > 105dB > 105dB > 105dB
Crosstalk > 65dB > 65dB > 65dB
Damping factor > 650 > 650 > 650
Slew rate > 45V/ us > 45V/us > 45V/us
Dimension(mm) 482x458x88 482x445x132 482x517x132
Weight(kgs) 19kg 21.5kg 36kg
