| Prod Model: |
Microphone Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jacket Color: |
Black,Green,Blue,Red,Yellow |
| Application: |
Microphone |
| Certification: |
CCC |
| Color: |
Black,Green,Blue,Red,Yellow |
| Type: |
Microphone Cable |
| Species: |
Microphone Cable |
| Wire Core Material: |
Bc/CCS/CCA/Cu/CCAM |
Product Description
Microphone Cable1.Specification:| Item | Conductor mm | Insulation Dia. | 1st Shield | 2nd shield | Sheath O.D. | Sheath Material |
| 2C*0.2mm2 | 12/0.15(OFC) | 1.4mm PVC | Aluminum Foil | Copper Clad Aluminum (CCA)
Braiding 96/0.12 | 5.5mm | Elastic PVC Black |
| 2C*0.5mm2 | 28/0.15(OFC) | 2.0 mm PVC | Aluminum Foil | Tinned Copper Clad Aluminum (TCCA)
Braiding 80/0.12 | 6.5mm | Elastic PVC Black |
| 2C*0.75mm2 | 42/0.15(OFC) | 2.4mm PVC | Aluminum Foil | Tinned Copper Clad Aluminum (TCCA)
Braiding 80/0.12 | 7.0mm | Elastic PVC Black |
| 2C*0.2mm2 | 12/0.15(OFC) | 1.4mm PVC | Aluminum Foil | OFC
Braiding 64/0.08 | 5.5mm | Elastic PVC Black |
| 2C*0.3mm2 | 16/0.15(OFC) | 1.7mm PVC | Aluminum Foil | OFC
Braiding 64/0.08 | 5.9mm | Elastic PVC Black |
| 2C*0.5mm2 | 28/0.15(OFC) | 2.0 mm PVC | Aluminum Foil | OFC
Braiding 80/0.08 | 6.5mm | Elastic PVC Black |
| 2C*0.75mm2 | 42/0.15(OFC) | 2.4mm PVC | Aluminum Foil | OFC
Braiding 96/0.08 | 7.0mm | Elastic PVC Black |
| 2C*0.3mm2 | 16/0.15(TC) | 1.7mm PVC | Aluminum Foil | Tinned Copper (TC)
Braiding 64/0.1 | 5.9mm | Elastic PVC Black |
| 2C*0.5mm2 | 28/0.15(TC) | 2.0 mm PVC | Aluminum Foil | Tinned Copper (TC)
Braiding 80/0.1 | 6.5mm | Elastic PVC Black |
| 2C*0.75mm2 | 42/0.15(TC) | 2.4mm PVC | Aluminum Foil | Tinned Copper (TC)
Braiding 96/0.1 | 7.0mm | Elastic PVC Black |
2.Features:
1.Type: audio and Video cable
2.Packing: carton box
3.Conductor: BC/ TC/TCCS
4.Jacket: disposable PVC
5.OEM is welcome
6. high quality with competitive price
3.Description:
1.inner conductor: 0.10*28 TC/ BC/TCCS and tinsel wires
2.the red and white double core wire
3.shielding layer: 30 cotton wires, 0.10*96 TCCS, tinsel wires and cotton yarn.
4.structure: lapping
5.jacket: clear PVC material with various colors
6.wire diameter: 6.8mm

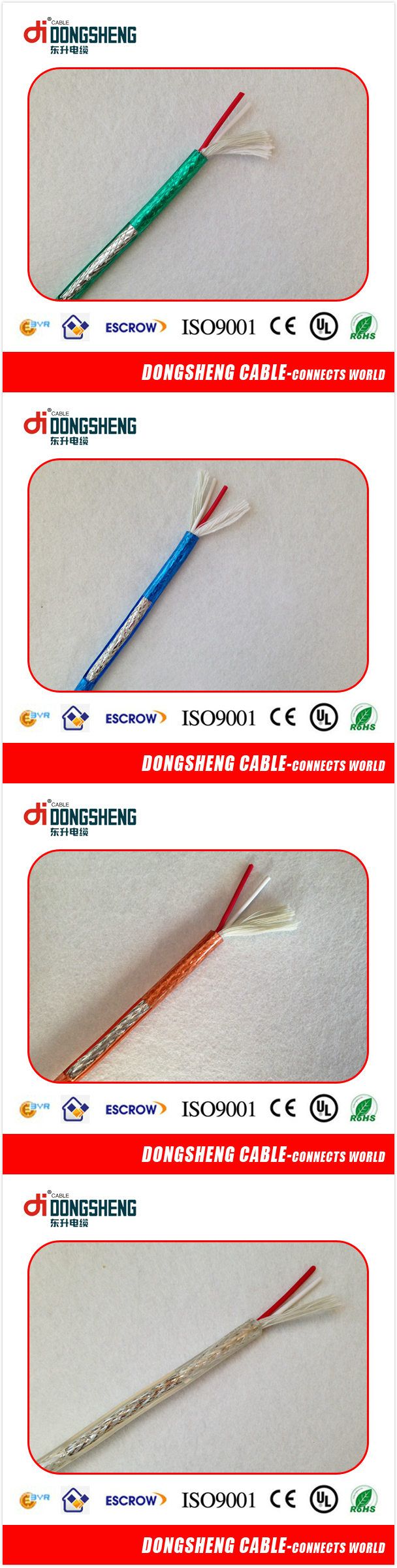

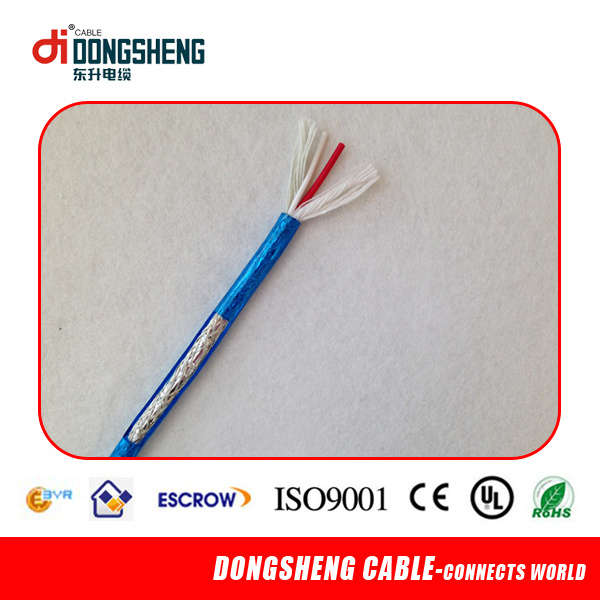

4.Pictures:
