| Prod Model: |

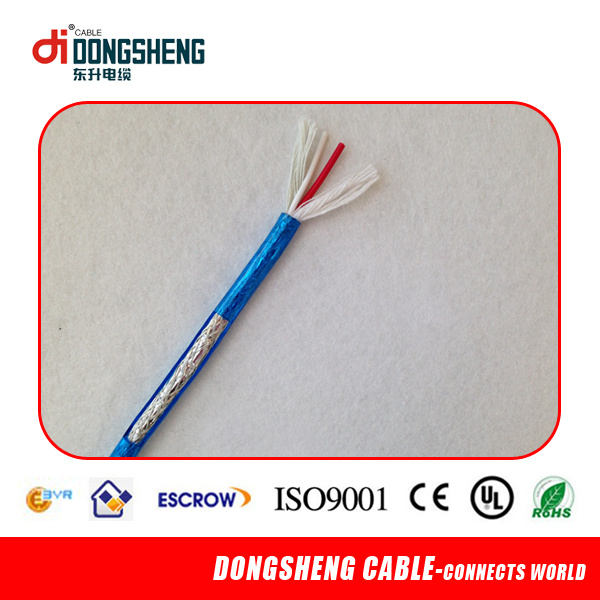

2 Cores Microphone Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jacket Color: |
Black,Green,Blue,Red,Yellow |
| Application: |
Microphone |
| Certification: |
CCC |
| Color: |
Black,Green,Blue,Red,Yellow |
| Type: |
Microphone Cable |
| Species: |
Microphone Cable |
| Wire Core Material: |
Bc/CCS/CCA/Cu/CCAM |
Product Description
Microphone Cable1.Specification:| Item | Conductor mm | Insulation Dia. | 1st Shield | 2nd shield | Sheath O.D. | Sheath Material |
| 2C*0.2mm2 | 12/0.15(OFC) | 1.4mm PVC | Aluminum Foil | Copper Clad Aluminum (CCA)
Braiding 96/0.12 | 5.5mm | Elastic PVC Black |
| 2C*0.5mm2 | 28/0.15(OFC) | 2.0 mm PVC | Aluminum Foil | Tinned Copper Clad Aluminum (TCCA)
Braiding 80/0.12 | 6.5mm | Elastic PVC Black |
| 2C*0.75mm2 | 42/0.15(OFC) | 2.4mm PVC | Aluminum Foil | Tinned Copper Clad Aluminum (TCCA)
Braiding 80/0.12 | 7.0mm | Elastic PVC Black |
| 2C*0.2mm2 | 12/0.15(OFC) | 1.4mm PVC | Aluminum Foil | OFC
Braiding 64/0.08 | 5.5mm | Elastic PVC Black |
| 2C*0.3mm2 | 16/0.15(OFC) | 1.7mm PVC | Aluminum Foil | OFC
Braiding 64/0.08 | 5.9mm | Elastic PVC Black |
| 2C*0.5mm2 | 28/0.15(OFC) | 2.0 mm PVC | Aluminum Foil | OFC
Braiding 80/0.08 | 6.5mm | Elastic PVC Black |
| 2C*0.75mm2 | 42/0.15(OFC) | 2.4mm PVC | Aluminum Foil | OFC
Braiding 96/0.08 | 7.0mm | Elastic PVC Black |
| 2C*0.3mm2 | 16/0.15(TC) | 1.7mm PVC | Aluminum Foil | Tinned Copper (TC)
Braiding 64/0.1 | 5.9mm | Elastic PVC Black |
| 2C*0.5mm2 | 28/0.15(TC) | 2.0 mm PVC | Aluminum Foil | Tinned Copper (TC)
Braiding 80/0.1 | 6.5mm | Elastic PVC Black |
| 2C*0.75mm2 | 42/0.15(TC) | 2.4mm PVC | Aluminum Foil | Tinned Copper (TC)
Braiding 96/0.1 | 7.0mm | Elastic PVC Black |
2.Features:
1.Type: audio and Video cable
2.Packing: carton box
3.Conductor: BC/ TC/TCCS
4.Jacket: disposable PVC
5.OEM is welcome
6. high quality with competitive price
3.Description:
1.inner conductor: 0.10*28 TC/ BC/TCCS and tinsel wires
2.the red and white double core wire
3.shielding layer: 30 cotton wires, 0.10*96 TCCS, tinsel wires and cotton yarn.
4.structure: lapping
5.jacket: clear PVC material with various colors
6.wire diameter: 6.8mm

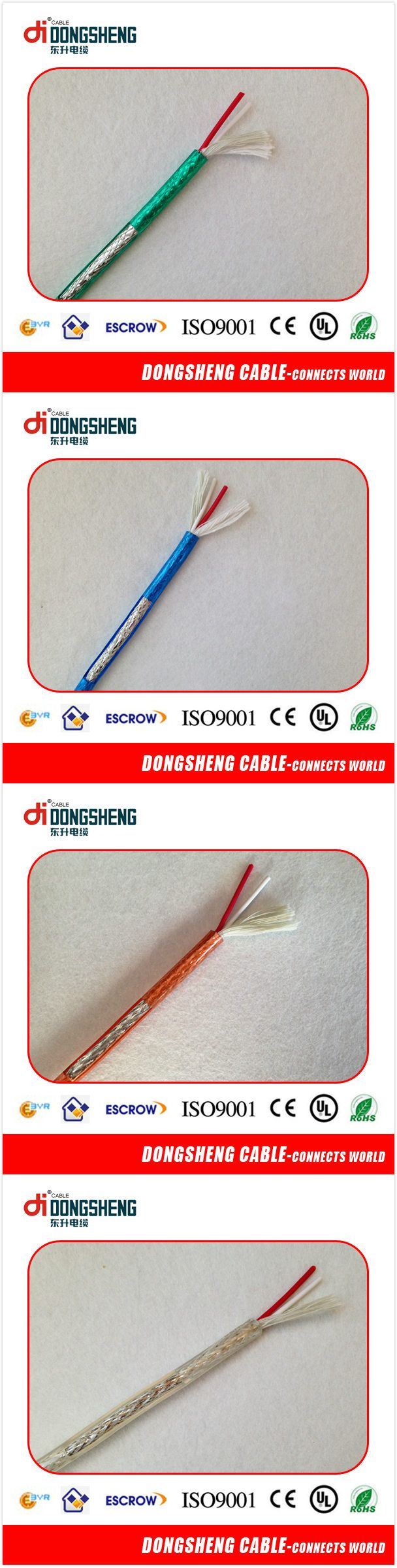

4.Pictures:
DSC Located at the city of Lin'an, Hangzhou, Hangzhou Lin'an Dongsheng Cable Co., Ltd. is 28km away from Hangzhou City, covering an area of 30000 square meters, with beautiful landscape and convenient communication facilities.
Since 1991, 24 year cable experience, our rapid development helps us to be the industry leader. Our company has passed ISO9001 quality system certification & UL certification, and had foreign trade license. Our company is on the top with comprehensive strength.
Main products in our company cover LAN Network Cables Cat5e CAT6 Cat3, Coaxial CCTV/CATV Cable RG6 RG59 RG11 RG59-2C QR500 RG58 RG213 LMR400 KX6 19VATC CT100 SAT703 ect. Telephone Cable, Alarm Cable and Cable Accessories
Our motto is "Keeping pace with the time, and going up like the sun", just as our company's name, Dongsheng, suggests. We are looking forward to establishing long term & mutually beneficial business relationship with you.
