| Prod Model: |
MHPC-M185T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Backlight Life: |
60,000 Hours |
| Dimensions: |
( (W × H ×d) 462 X 319 X 55mm |
| N.W: |
4.5kg |
| USB: |
8 |
| Expand: |
Mini Pcie |
| System: |
Win 7 Win8 Linux |
| Screen Type: |
Capacitive Screen |
| Operating System: |
Windows |
| Memory: |
8GB |
| Built-in Microphone: |
Built-in Microphone |
| Network Mode: |
3G |
| Built-in Bluetooth: |
Built-in Bluetooth |
| Hard Disk Capacity: |
≥128G |
| Card Reader: |
Card Reader |
| Screen Size: |
18.5'' |
| CPU Core: |
Intel IVY Brige |
| CPU Type: |
Hm76 |
Product Description
Our Company
JHCTECH is the world's leading manufacturer of industrial computers, providing reliable solutions and value-added services system for intelligent infrastructure, intelligent manufacturing and intelligentservice.
We focuses on the development of embdedded products and systems application platform, provide one-stop solution for intelligent infrastructure, manufacturing and service.

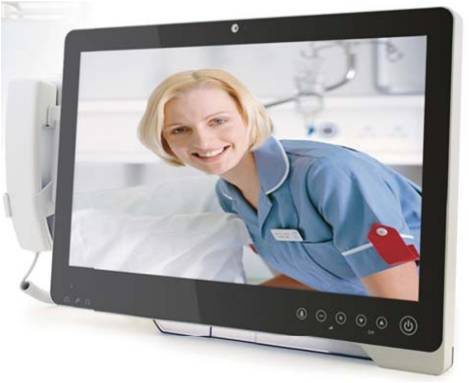

Main features
Fan less cooling design, antibacterial plastic case
Celeron 1047UE 1.4GHz CPU,4GB RAM
18.5 inch TFT wide-screen LCD, capacitive touch screen
5M Pixel AF LED full-in light camera
VOIP phone,2x3W loudspeaker
RFID& intelligent card reader and 2D scanner
DVI-D/2*LAN/3*USB3.0/Audio/Wifi
Thin and Reliable, Collision safety design
DC 12-48V wide voltage input
SYSTEM | CPU | Intel® Celeron 1047UE 1.4GHz, 2C2T, 2M Cache |
| MEMORY | 1×DDR3 1333MHz SODIMM, maximum 4GB |
| EXPANSION | 2* built-in Mini PCIe,PCIeX1 and USB signal ,WIFI Optional |
| DISPLAY | 18.5" TFT LCD,CPU integrated Intel HD Graphics 350MHz DX11
Touchpanel projected-type capacitive screen,zero frame panel, IP65 protect rate |
| Chipset | Intel® HM76 |
| I/O | 2* LAN,10/100/1000 Mbps RJ-45 ports
5USB 2.0,3USB3.0
DVI-D display ports
2Line-out & 1Mic
Remote control 1 x SCSI 26pin
Control panel function buttons, ATX touch switch,RESET |
HDD | 1*2.5SATA2 HDD orSSD |
| DISPLAY | LCD | Type:18.5" Color TFT LED
Resolution:1366 x 768
Color depth:16.7M
The lattice spacing (mm):0.240 x 0.240
luminance (cd/):300 cd/
visual angle:80°(Left), 80°(Right), 80°(Up), 80°(Down)
Operation temperature:-10 ~ 50ºC
Backlight life:60,000 hours |
Touch Screen | Type:ProProjected- type Capacitive
Structure:zero frame Panel
transmittance:90%
Controller: USB port
Power consumption:+5 V @ 200 mA
Drives support Windows,Linux OS
Click lifespan:3500 million times |
POWER | P o w e r | DC to DC Converter input voltage: 12-48 VDC |
| AC to DC Converter input voltage: 100 ~ 240 VAC @ 50 ~ 60 Hz |
| OS | Windows Embedded POSReady7, Windows 7, Windows 8, Linux |
MECHANICAL AND
ENVIROMNTAL | OPERATION TEMPERATURE | -5 ~ 45° C-SSD With Airflow
-5 ~ 35° C-HDD With Airflow |
| Operation humidity | 10 ~ 95% @ 40° C, non- condensing |
| Shock | 10 g peak acceleration and speed (Duration11ms) |
| Vibration | 1g |
| EMC | FCC / CE / UL ANSI / AAMI ES60601-1 |
| ORDER INFORMATION |
| MHPC-M185T/ S001 |
Capacitive tablet computer with touch screen,Intel® 1047UE 1.4GHz CPU,18.5'TFT LCD,8USB\2LAN\Audio\RFID\VOIP\IC Reader\Speaker,
DC12V&60W power adapter. |
Optional functions
IP camera,5M Pixel AF camera with LED flash
optical sensor,sensing the Ambient brightness, Adjusting LCD Screen Brightness automatically
LED read light
IC intelligent reader
VOIP phone,Handheld and fixed
Loudspeaker,2 Built in 3W |
