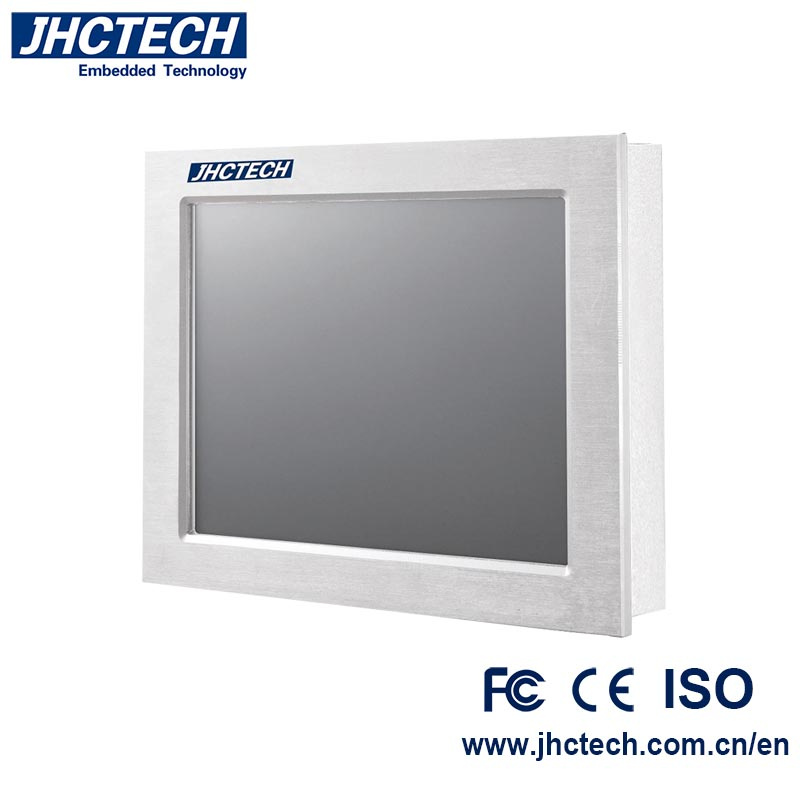

| Prod Model: |
IPPC-1213T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Resolution: |
1024 X 768 |
| Color Depth: |
16.7m |
| Lattice Spacing: |
0.240*0.240 |
| Backlight Life: |
50, 000 Hours |
| Type: |
IPC |
| Touch Screen: |
Touch Screen |
| Application: |
Industrial |
Product Description
Features
Ultra low power consumption,
fanless cooling design
12.1″TFT LED with 5 wire resistive touch screen
Intel® Atom™ D2550 1.86 G HZ Processor
Up to 4GB DDR 3 Memory
2X LAN, Intel 82574L Chipset
4USB/4COM/AUDIO,1X 2.5"SATA HDD bay
Aluminum /fan less/low power consumption
Lightweight solid aluminum
SYSTEM
CPU
Intel® Atom™ D2550 1.86 G HZ
MEMORY
2* DDR3 Slot, up to 4G DDR3 1066 RAM
EXPANSION
1*MINI PCI-E, PCI-E+ USB, Jumper for Msata (Option)
DISPLAY
1 x VGA & 1* HDMI interface
M/K
USB
Chipset
Intel NM10 chipset
HDD
1 *2.5" SATA 2HDD
SERIAL PORTS
4x serial ports, 1 x RS-232/422/485 (COM2)
USB
4x USB 2.0 interfaces
CONTROL
power light*1,reset switch *1
LED INDICATORS
Power light ×1,HDD light ×1
WATCH DOG TIMER
system timer reset/interruption
POWER
P o w e r
DC to DC Converter input voltage: 12 VDC
AC to DC Converter input voltage: 100 ~ 240 VAC @ 50 ~ 60 Hz
OS
DOS /Windows
MECHANICAL
STRUCTURE
12.1″TFT LED with 5 wire resistive touch screen
COLOUR
Slivery
INSTALLATION
on-wall , desktop, VESA
Maximum resolution
1024 x 768
WEIGHT
5.0Kg
ENVIROMNTAL
OPERATION TEMPERATURE
-10 ~ 65ºC
Color depth
16.7M
Lattice spacing
0.240*0.240
Visual angle
80°(left ), 80°(right ), 60°(up), 80°(down)
Backlight life
50,000 Hours
EMC
CE /FCC A class ,UL
ORDER INFORMATION
IPPC-1213T
12.1″TFT LED with 5 wire resistive touch screen, Intel® Atom™ D2550 1.86 G HZ Processor,VGA&HDMI,2X LAN, Intel 82574L Chipset,4USB/4COM/AUDIO,1X 2.5"SATA HDD bay
DC to DC Converter input voltage: 12 VDC
AC to DC Converter input voltage: 100 ~ 240 VAC @ 50 ~ 60 Hz
