Shenzhen LEDSolution Technology Co., Ltd. >> Metro LED Display

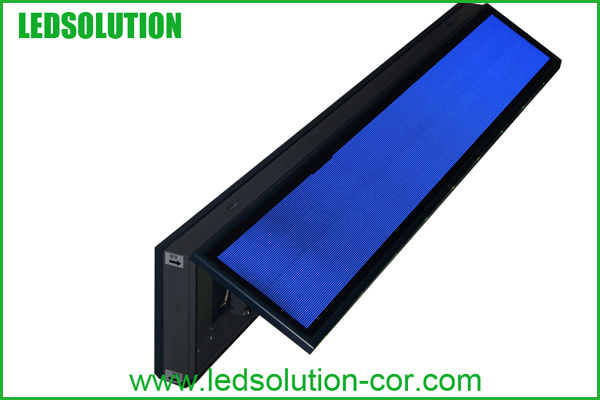

Metro LED Display

Metro LED Display
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Prod Model: LS-MR-P4-CF-DD-AL-2.304mx0.256m
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 1,500nits
Panel Material: Epoxy Paint Coated Aluminum
Color Temperature: 6,500 Deg. K
Viewing Angle: 140/140
LED Size: W2304*H256
Solution Per Panel: 576X64
Mounting System: Hanging
Tube Chip Color: Full Color
Scanning Mode: 1/8 Scan
Display Type: Segment LED Display
IP Rating: IP43
Display Function: Message
Pixel Pitch: 4
Pixel Configuration: SMD
Pixel Density: 62, 500
Application: Metro

Product Description

Specifications:
*CE, RoHS, ISO, UL, ETL certificates;
*3-years warranty;
*Fast and safe assembly .


Parameter

Unit

Value

Pitch

mm

4

Brightness

nits

1,500

Color temperature

deg. K

6,500

Viewing angle  - Horizontal (50% brightness)

deg.

140(-70 ~ +70)

Viewing angle  - Vertical (50% brightness)

deg.

140(-70 ~ +70)

Panel weight

kg

35

LED Size

mm

W2304*H256

LED  area

sq. m.

0.59

Panel size

mm

W2440*H340*D120

Panel material



Epoxy paint coated  aluminum

Operating temperature range

deg. C

-30 to +60

Humidity operating

RH

10% ~ 90%

Pixel type and configuration

R/G/B

Black  3in1 SMD

Resolution per panel



576x64

Dot per panel



36,864

Dot per sq. meter



62,500

LED per sq. meter



62,500

Recommended minimum viewing distance


4

Recommended best viewing distance

m

4~16

Colors



281 Trillion

Grey scale (linear)

Levels

65,536  levels per color

Brightness control

Levels

8

Contrast ratio



1,000:1

Processing depth

bit

1 6

Video frame rate

Hertz

60

Display refresh rate

Hertz

180~3,000

Input voltage (nominal)

VAC

110 to 240

Input power frequency

Hertz

50 to 60

Input power (max)

Watts /  panel

600

Input power (typical)

Watts /  panel

240

Lifetime (50% brightness)

Hours

≥100,000

Red wavelength (dominant)

nm

620~625

Green wavelength (dominant)

nm

520~525

Blue wavelength (dominant)

nm

470~475

Multimedia data format



DVI,MPG,AVI,WMV,RM etc.

Data interconnection



3G & Wifi

Mounting system



Hanging

LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
