Meat Vegetables Refrigeration 5t Ice Block Maker

Prod Model:	SZB5T-4A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Meat Vegetables Refrigeration 5t Ice Block Maker
Refrigeration Capacity:	45.2kw
Ice Maker Running Power:	22.8kw
Recommended Generator:	100kVA
Unit Ice Block Weigt:	20kg
Ice Can Quantity:	88 Pieces
Ice Maker Compressor Brand:	Bock/Bitzer
Ice Mold Material:	Stainless Steel
Ice Block Maker Control System:	Schneider Electrical Part
Ice Block Making Time:	8h
Ice Shape:	Ice Block
Certification:	CE
Condition:	New

Product Description

Description:

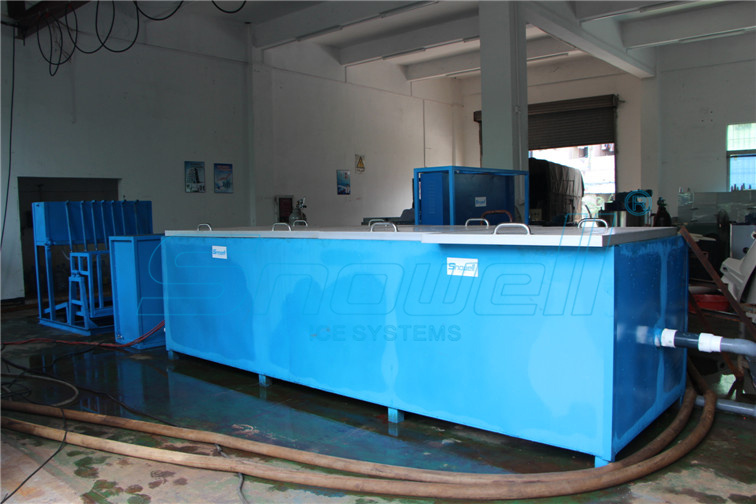

Meat Vegetables Refrigeration 5T Ice Block Maker

Model: SZB5T-4A
Block Ice Maker Daily Capacity: 5000kg
Ice Maker Compressor: Bitzer/Bock
Ice Maker Cooling way:Water Cooled
Production Capacity Available: 1-60T Per Day

Additional Detailed Specifications for the ice block making Maker:


NO.	Description	Specs.
1	Product Name	5T ice block maker for Freezing Stuff
2	Refrigeration capacity	45.2kW
3	Running Power	22.8kW
4	Cooling mode	Water cooling
5	Block Ice Weight	10KG
6	Evaporating temp.	-15°C
7	Condensing temp.	45°C
8	Flake ice temp.	-5°C
9	Thickness of flake ice	1.5-2.2mm
10	Water feeding pressure	0.1Mpa-0.5Mpa
11	Design ambient temp.	25°C
12	Design water inlet temp.	18°C


SNOWELL ice block maker has adopted the newest international ice machine making technology. We use and only use world famous components like Bitzer,Bock, Danfoss,Schneider and so on.

Compare to other supplier of ice block maker in the industry, SNOWELL ICE SYSTEMS owns its unique technology and get much more better performance.

1. Superb Stability and reliability, long use life.

2. User-friendly design, intellectualized PLC touch-screen controller

* The intellectualized PLC touch-screen control system, user-friendly designed, which is very convenient for operator.

* The intellectualized historical failure record

* Function and guidance of trouble shooting makes the ice block maker easier and simple operation and maintenance.

* Running time setting function convenience operator,

* Saving energy and reduce cost for the ice machine

3. Sub-cooled ice, excellent fast cooling

Super cold, 100% sub cooled ice with greater surface area and exceptional cooling power.

4. Low maintenance and operation cost for the ice block maker

Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flakers.

5. Energy-efficient and cost saving for the ice block making machine.


Ice Block Maker Applications Fields

1. Large concrete pouring project

2. Man-Made snow making project

3. Chemical Industry

4. Fishery. aquatic products processing and vegetables & fruits preservation

5. Food Fermentation

6. Meat, dairy products processing and the other food industries.


Block Ice Features:

1. Directly formed at low temperatures,block ice are as cold as minus 8°C.

2. Big contact area and good mobility ensure the full contact with refrigerated objects, like fish, concrete and so on.

3. No acute edges or Conner. No damage to fish skin or else.


After-sales Service

1. Two years warranty

2. Offer Spare parts free of charge within the warranty period.

3. Technical Documents

When beyond the warranty, Snowell will supply the parts and service only for factory price.


Company Profile

Shenzhen Snowell Refrigeration Equipment Co., Ltd is founded in May, 2006, with registration capital 25 million in US Dollar. As one 10 years experienced manufacturer of refrigeration equipments in China, SNOWELL has been dedicated into researching and developing refrigeration technology. We mainly design and manufacture ice flake machine, ice tube machine, ice block machine ect. Snowell products have passed CE, UL, ISO9001, ISO14000 certificate.


Frequent Asked Questions(FAQ)

Q1: What is the delivery time?

A1:
   1).The ice making machine type. Our main product line includes Flake Ice Making Machine, Tube Ice making machine, and Block Ice Making Machine. The manufacturing is totally different. So the time and effort spent on these machines varies. Normally the flake ice machine is fastest under the same ice daily capacity

   2). Different Ice Daily Capacity: we have 1T, 2T, 5T, 10T, 20T, 25T, 30T, 40T, 50T ice making machines. For small capacity ice making machines(like1-5 tons), it needs about 10-15 working days. For larger capacity ice machines, it needs around 20-30 working days).


Q2. What is the payment terms and trade terms?

A2: Normally, we accept T/T, 30% Deposit and 70% balance paid before delivery.
      Trade Terms: FOB Shenzhen


Q3: Do I need to install the ice machine by myself?

For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.

For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you, it's very to install the machine.

Q4: For Water Cooled and Air cooled Machine, Which one is better?

A4: It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
