| Prod Model: |
F215 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Response: |
45Hz-18kHz +/-3db |
| System Type: |
2-Way 2X15" Full Frequency |
| Model No: |
F215 |
| Rated Power: |
800W AES, 3200W Peak |
| Recommended Amplifier: |
1000W 8ohms |
| Sensitivity: |
101db |
| Maximum Spl: |
128db Continuous, 125db Peak |
| Finish: |
Environmental Water-Based Finish |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker Material: |
Wood |
| Certification: |
CCC |
| THD: |
<0.005% |
| Speaker System: |
2 Way Full Frequency |
| Application: |
Professional Performance |
| Monitor: |
Non |
Product Description
Products Description

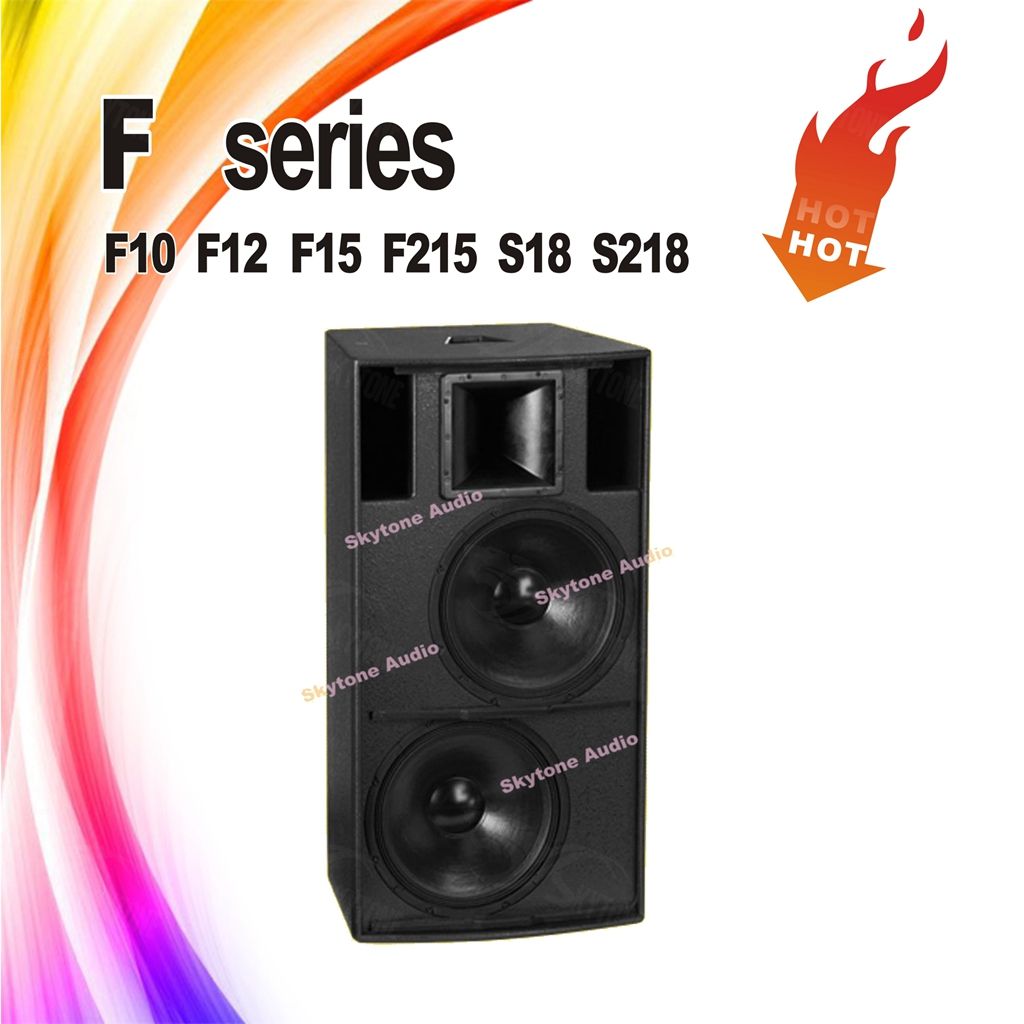

Dual 15" Professional Speaker Martin F215 Style
Two-way passive reflex with dual bass drivers
The Martin Audio Blackline F215 is a two-way, trapezoidal enclosure with dual 15" (380mm) / 3" (75mm) coil low frequency drivers. The dual drivers have different midband characteristics for low distortion.
TECHNICAL SPECIFICATIONS
FEATURES
Very high SPL from a full range passive enclosure
Extended low frequency performance from dual
15" (380mm) low distortion drivers
User rotatable 80°x 50° horn
1.4" (35mm) exit titanium dome compression driver
Five year limited warranty
APPLICATIONS
Live sound reinforcement
Drum monitor
Nightclub installations
Sidefill monitor
| F215 TECHNICAL SPECIFICATIONS |
|
| Frequency Response | 45Hz-18kHz 3dB |
| Driver | 2x 15" (380mm)/3" (75mm) voice coil,
LF driver |
| 1 x 1.4" (35mm) exit HF compression driver |
| Rated Power | 800W AES, 3200W peak |
| Recommended Amplifier | 400-1000W into 4 ohms |
| Sensitivity | 101dB |
| MAXIMUM SPL | 128dB continuous, 125dB peak |
| Impedance | 4 ohms |
| Nominal Dispersion | 80° H x 50° V |
| Crossover | 1.4kHz passive |
| DIMENSIONS | (W)560mm x (H) 1066mm x (D) 496mm |
| (W) 22ins x (H) 42insx (D) 19.5ins |
| WEIGHT | 59kg (130lbs) |
