| Prod Model: |
Gt-Wkr-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gt-Wkr-50 |
| Total Cooling Capacity(Kw: |
50 |
| Air Volume(M³/H): |
22000 |
| Size(mm): |
2200*1080*2350 |
| Input Power(Kw): |
66.8 |
| Weight(Kg): |
980 |
| Refrigerant: |
R410A, R407c, R22 |
| Weight: |
12kg |
| Air Supply Method: |
Upper Supply and Bottom Return and Binery Overseas |
| Working Principle: |
Air Cooled |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Floor Standing |
| Certification: |
SGS |
| Condition: |
New |
| Application Fields: |
HVAC |
Product Description
Description:

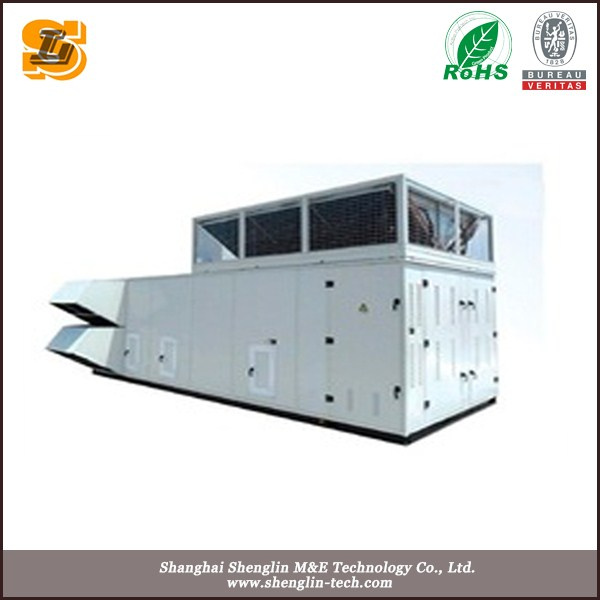

1. Air cooled rooftop air conditioner.
2. Cooling capacity: 8kw to 90kw, a variety of choices.
3. High external pressure.
4. Applicable to residential and commercial buildings, hotels, and scientific research units, factories and enterprises and so on.
Feature:
1. Evaporator: Type Inner grooved copper tube and aluminum fin
2. Fin Type 5* :Slotted fin hydrophilic aluminum fin
3. Condenser: Type Inner grooved copper tube and aluminum fin
4. Fin Type 5* :Rippled hydrophilic aluminum fin
5. Condenser Fan Type: Low noise axial type
Specification
GT-WKR Series-Roof Top AH Specifiaction 1 |
Model GT-WKR- |
10 |
15 |
18 |
20 |
25 |
30 |
35 |
|
Specification |
Cooling capacity 1* |
kW |
10.5 |
15.0 |
18.5 |
21.0 |
26.3 |
29.8 |
35.0 |
Heating capacity 2* |
kW |
11.5 |
15.9 |
19.5 |
22.1 |
27.6 |
32.6 |
37.1 |
Supply air 3* |
m3/h |
1800 |
2400 |
2900 |
3500 |
4500 |
5000 |
5800 |
Static pressure 3* |
Pa |
100 |
150 |
150 |
180 |
200 |
250 |
250 |
Noise 4* |
dB(A) |
60 |
60 |
62 |
62 |
65 |
65 |
68 |
Power |
3N-380V-60Hz |
Total capacity |
3.9 |
5.74 |
7.0 |
8.27 |
9.96 |
11.0 |
14.15 |
Color |
White |
cooling system |
Compressor |
Type |
Efficient scroll closed |
Quantity |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
Supply air fan |
Type |
Low noise centrifugal type |
Capacity |
kW |
0.37 |
0.55 |
0.75 |
0.75 |
1.1 |
1.5 |
2.2 |
Evaporator |
Type |
Inner grooved copper tube and aluminum fin |
Fin type 5* |
Slotted fin hydrophilic aluminum fin |
Condenser |
Type |
Inner grooved copper tube and aluminum fin |
Fin type 5* |
Rippled hydrophilic aluminum fin |
Condenser fan |
Type |
Low noise axial type |
Quantity |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
Refrigerant |
Refrigerant |
R22/R407C |
Refrigerant control |
External balance type thermal expansion valve |
Air filter |
Initially effect plate filter |
Dimensions |
L |
mm |
1400 |
1400 |
1600 |
1600 |
1850 |
1850 |
2200 |
W |
mm |
1050 |
1050 |
1200 |
1200 |
1400 |
1400 |
1800 |
H |
mm |
1050 |
1050 |
1050 |
1050 |
1200 |
1200 |
1520 |
Weight |
kg |
200 |
230 |
260 |
300 |
550 |
600 |
850 |
Contact us
contact person:Wendy Wang
Web:www.shenglin-tec.com
Tel:+86 15216798990
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
