Prod Model: |
Gt-Hfm-20 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Gt-Hfm-20 |
Total Cooling Capacity: |
21.8 Kw |
Air Volume: |
5400 M3/H |
Input Power: |
17.5kw |
Size: |
1200*680*1880 |
Weight: |
300kg |
Refrigerant: |
R410A,R407c,R22 |
Air Supply Method: |
Upper Supply and Bottom Return and Bottom Supply a |
Evaporator Type: |
Inner Grooved Copper Tube and Aluminum Fin |
Compressor Type: |
Totally Enclosed Scroll Type |
Operating Voltage: |
380/400 VAC |
Mounting: |
Floor Standing |
Certification: |
CE |
Condition: |
New |
Type: |
Precision Air Conditioner |
Product Description

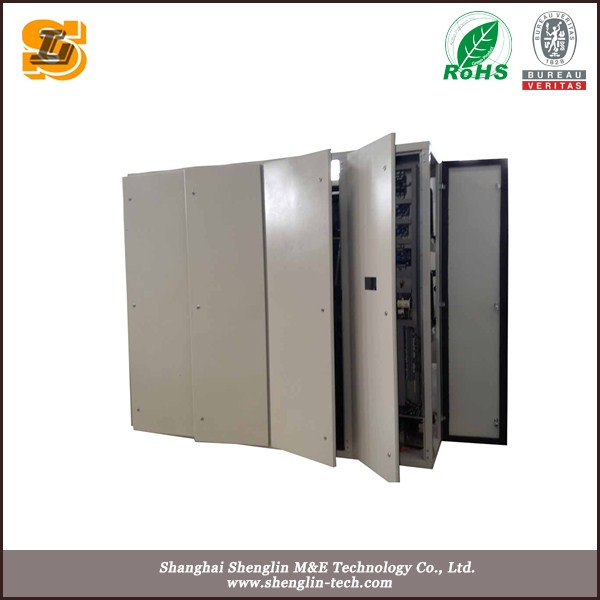

data center Air cooled closed control unit
1. Precise and reliable
Careful design, rigorous laboratory testing, and comprehensive quality control to ensure that the unit has excellent reliability;
Parts of the world-renowned brands, ensuring high reliability and service life;
Intelligent microprocessor control system, which enables the unit is always running at its best.
2. Constant temperature and humidity
It can accurately control the temperature (accuracy ± 1 ° C), humidity (± 5%) to adapt to all-day job requirements;
The unit equipped with a frontal area of the evaporator, to reflect the amount of wind, the small enthalpy difference, to produce the greatest sensible cooling capacity, so that the indoor environment, easy to maintain the equilibrium of temperature and humidity;
3. Variety of options
The GT-HF series of standard temperature and humidity air-conditioning unit, with conventional constant temperature and humidity control is flexible, applicable to the general (conventional) constant temperature and humidity requirements of the occasion;
GT-the HFD series of ceiling temperature and humidity air conditioning units, can be installed on the ceiling applies to the room space is small or there is no dedicated room small-scale temperature and humidity region of space;
GT-the HFM family room precision air conditioning units, communication base stations, telecommunications rooms, data center temperature and humidity control accuracy and operational stability have very high requirements of the occasion;
The GT-HFJ series Purification constant temperature and humidity air conditioning units, an increase of the purification function, applicable to the purification occasions such as medical operating rooms, electronic workshop;
Non-standard series, to provide customers with the most satisfactory products. For example: The ultra-high precision (precision of temperature control ± 0.3 ° C, humidity control accuracy of ± 2%); Heating, humidification form; Cryogenic temperature and humidity, or large temperature difference between temperature and constant temperature and humidity; Long piping, ultra-high hydrostatic; Integrated design, waste heat recovery.
4. Other features
Variety back to the wind (on the air: The hood / duct or directly from the unit at the top of the air; Under the air: And sent to all parts of the engine room through the raised floor plenum chamber);
Configure the removable electrode humidifier, quickly produce clean steam, optional electric humidifier scene according to user requirements;
G4 level of air filters, filter effects, to meet the conventional cleanliness requirements, and can be equipped with higher cleanliness of the F8-level air filter;
Tubular stainless steel electric heating or PTC electric heating, high heating efficiency, to increase the power to adapt to the use of the alpine region, multiple protection so that the heating is more safe and reliable;
GT-HFM series constant temperature and humidity precision air conditioner specification 1 | GT-HFM series constant temperature and humidity precision air conditioner specification 2 |
Model GT-HFM-() | 07 | 12 | 15 | 18 | 20 | 24 | 27 | 30 | Model GT-HFM-() | 35 | 40 | 50 | 55 | 60 | 70 | 80 | 90 |
Specification | Total cooling capacity | kW | 7.5 | 12.6 | 15.3 | 18.6 | 21.8 | 24.2 | 27.5 | 31.8 | Specification | Total cooling capacity | kW | 36.5 | 42.1 | 49.1 | 54.1 | 61 | 71.6 | 81.4 | 93.6 |
Sensible cooling capacity | kW | 6.9 | 11.7 | 14.1 | 17.4 | 20.2 | 22.4 | 25 | 29.5 | Sensible cooling capacity | kW | 33.8 | 38.4 | 44.3 | 49.8 | 55.5 | 65.1 | 74.7 | 85.1 |
Electric heating | kW | 3 | 6 | 6 | 9 | 9 | 9 | 12 | 15 | Electric heating | kW | 15 | 18 | 18 | 18 | 24 | 24 | 30 | 30 |
Air volume 2* | m3/h | 1800 | 3250 | 4100 | 5200 | 5400 | 6600 | 7500 | 9000 | Air volume 2* | m3/h | 10500 | 11500 | 13000 | 15500 | 18000 | 20500 | 22000 | 25000 |
Outlet air pressure 2* | Pa | 25 | 25 | 25 | 50 | 50 | 75 | 75 | 75 | Outlet air pressure 2* | Pa | 75 | 75 | 75 | 75 | 100 | 100 | 125 | 125 |
Noise 3* | dB(A) | 54 | 54 | 55 | 56 | 56 | 56 | 56 | 56 | Noise 3* | dB(A) | 56 | 58 | 58 | 58 | 58 | 58 | 60 | 60 |
Temperature control range and accuracy |
| 18~28,±1 | Temperature control range and accuracy |
| 18~28,±1 |
Humidity control range and accuracy | % | 45~70,±5 | Humidity control range and accuracy | % | 45~70,±5 |
Power | 3N-380V-50Hz | Power | 3N-380V-50Hz |
Input power 4* | kW | 6 | 11 | 12.6 | 16.8 | 17.5 | 19 | 23.9 | 28.9 | Input power 4* | kW | 30 | 38.2 | 39.6 | 40.7 | 52.3 | 56.7 | 66.8 | 74.8 |
Indorr unit | Supply air fan | type | low noise centrifugal type | Indorr unit | Supply air fan | type | low noise centrifugal type |
capacity | kW | 0.32 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 | capacity | kW | 2.2 | 3 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
Electrode humidifier | humidification volume | kg/h | 3 | 3 | 5 | 5 | 5 | 8 | 8 | 8 | Electrode humidifier | humidification volume | kg/h | 13 | 13 | 13 | 15 | 15 | 15 | 18 | 21 |
Electric heating | capacity | kW | 3 | 6 | 6 | 9 | 9 | 9 | 12 | 15 | Electric heating | capacity | kW | 15 | 18 | 18 | 18 | 24 | 24 | 30 | 30 |
Evaporator type | Inner grooved copper tube and aluminum fin | Evaporator type | Inner grooved copper tube and aluminum fin |
Air filter | primary efffect plate type filter | Air filter | primary efffect plate type filter |
Dimension | L | mm | 950 | 1200 | 1200 | 1200 | 1200 | 1600 | 1600 | 1600 | Dimension | L | mm | 1800 | 1800 | 2000 | 2000 | 2000 | 2200 | 2200 | 2500 |
W | mm | 580 | 680 | 680 | 680 | 680 | 780 | 780 | 780 | W | mm | 850 | 850 | 850 | 850 | 850 | 1080 | 1080 | 1200 |
H | mm | 1800 | 1880 | 1880 | 1880 | 1880 | 2000 | 2000 | 2200 | H | mm | 2200 | 2200 | 2150 | 2150 | 2150 | 2350 | 2350 | 2450 |
Weight | kg | 190 | 230 | 270 | 290 | 300 | 400 | 430 | 510 | Weight | kg | 580 | 610 | 710 | 750 | 820 | 900 | 980 | 1250 |
Outdoor unit | Model GT-( )*quantity | WL08*1 | WL12*1 | WL15*1 | WL18*1 | WL20*1 | WL25*1 | WL27*1 | WL30*1 | Outdoor unit | Model GT-( )*quantity | WL35*1 | WL40*1 | WL50*1 | WL55*1 | WL60*1 | WL70*1 | WL40*2 | WL50*2 |
compressor | type | Totally enclosed scroll type | compressor | type | Totally enclosed scroll type |
quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | quantity | 1 | 2 | 2 | 2 | 2 | 2 | 4 | 4 |
condenser type | Inner grooved copper tube and aluminum fin | condenser type | Inner grooved copper tube and aluminum fin |
Condensing fan | type | Low noise axial type | Condensing fan | type | Low noise axial type |
capacity | kW | 0.37 | 0.37 | 0.37 | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | capacity | kW | 0.75 | 0.55*2 | 0.55*2 | 0.55*2 | 0.75*2 | 0.75*2 | 0.55*4 | 0.55*4 |
Dimension | L | mm | 800 | 850 | 850 | 980 | 980 | 980 | 980 | 980 | Dimension | L | mm | 980 | 1880 | 1880 | 1880 | 1880 | 1880 | 1880 | 1880 |
W | mm | 800 | 850 | 850 | 980 | 980 | 980 | 980 | 980 | W | mm | 980 | 980 | 980 | 980 | 980 | 980 | 980 | 980 |
H | mm | 980 | 1080 | 1080 | 1080 | 1080 | 1080 | 1234 | 1234 | H | mm | 1234 | 1080 | 1080 | 1080 | 1234 | 1234 | 1080 | 1080 |
Weight | kg | 90 | 120 | 150 | 170 | 170 | 205 | 210 | 220 | Weight | kg | 250 | 320 | 400 | 400 | 450 | 500 | 320*2 | 400*2 |
Freon 5* | type | R22(R407C/R410A) | Freon 5* | type | R22(R407C/R410A) |
control method | Out balance expansion valve | control method | Out balance expansion valve |
Collecting pipe 6* | liquid pipe`s diameter | mm | 9.52(9.52) | 12.7(9.52) | 12.7(9.52) | 15.88 (12.7) | 15.88 (12.7) | 15.88 (12.7) | 15.88 (12.7) | 15.88 (12.7) | Collecting pipe 6* | liquid pipe`s diameter | mm | 15.88 (12.7) | 15.88*2 (12.7*2) | 15.88*2 (12.7*2) | 15.88*2 (12.7*2) | 15.88*2 (12.7*2) | 15.88*2 (12.7*2) | 15.88*4 (12.7*4) | 15.88*4 (12.7*4) |
gas pipe`s diameter | mm | 15.88(12.7) | 19.05(15.88) | 19.05 ( 15.88) | 22.23 (19.05) | 22.23 (19.05) | 28.6 (22.23) | 28.6 (22.23) | 28.6 (22.23) | gas pipe`s diameter | mm | 34.9 (28.6) | 22.23*2 (19.05*2) | 28.6*2 (22.23*2) | 28.6*2 (22.23*2) | 28.6*2 (22.23*2) | 34.9*2 (28.6*2) | 22.23*4 (19.05*4) | 28.6*4 (22.23*4) |
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
