| Prod Model: |
MPC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Heating And Cooling: |
Heating and Cooling |
| Certification: |
CE |
| Operating Voltage: |
380/400 VAC |
| Condition: |
New |
| Type: |
Marine Packaged Air Conditioner |
| Mounting: |
Horizontal |
Product Description

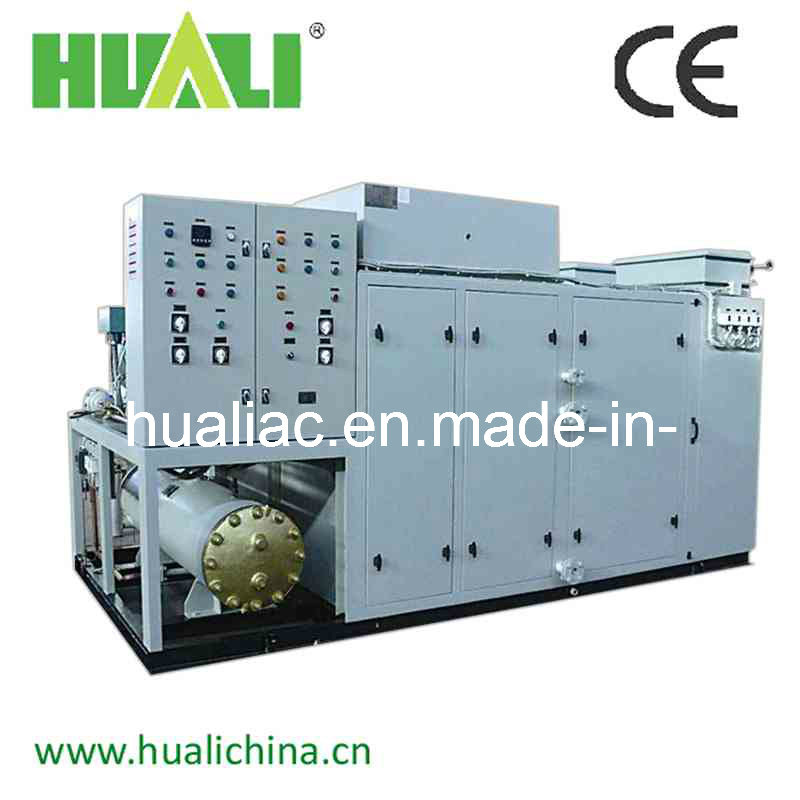

Marine Packaged Air Conditioner
1. Capacity range: 23.2kw-232kw
2. Marine hi-efficiency centrifugal fan: Safe running; Low noise. Hi-efficiency brass transfer tube has hi-efficiency condensation and anti-corrosion functions
Aluminum alloy framing with features of strong, anti-corrosion, Good profile and easy maintenance.
3. Analogue auto control system: Man-machine dialogue; Easy operation.
Marine Packaged Air Conditioner
| Mcw Main Technical Parameter of Navy or Marine Water Chiller |
| Model/Type | MCW-2 | MCW-3 | MCW-4 | MCW-5 | MCW-6 | MCW-7 | MCW-8 | MCW-9 | MCW-10 | MCW-13 | MCW-16 | MCW-20 | MCW-40 |
| Cooling Capacity | 23.2 | 35 | 46.5 | 61.7 | 70.8 | 81.3 | 93 | 104.6 | 116 | 151 | 186 | 232 | 464 |
| Cooling Medium | R22(R404A R134a R407C) |
| Power Supply | Main circuit: AC380V,3ph,50Hz Control circuit: AC220V , 1Ph ,50Hz |
| Compressor | Type | Hermetic | Semi-hemetic piston | Piston or screw |
| Energy regulation % |
| 0 . 50 . 100 (or 0 . 66 . 100) |
| Motor power KW | 5.6 | 10 | 11.8 | 15.4 | 18.2 | 20 | 23.1 | 27.2 | 30 | 37 | 45 | 60 | 120 |
| Condenser | Type | Horizontal shell and tube |
| Temperature of water inlet | ≤32 |
| Cooling water flow volume(m3/h) | 6 | 10 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 40 | 50 | 60 | 120 |
| Water Pressure loss | 30-50 | 60-90 |
| Drier evaporator | Type | Horizontal shell and tube |
| Water-inlet and outlet temp | 12/7ºC |
| Forzen water flow volume(m3/h) | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 26 | 32 | 40 | 80 |
| Water Pressure loss(Pa) | 60 |
| Pretections | High pressure . low pressure . (oil pressure.)water cutoff. anti-freezing . phase missing . overload . safety valve(or fusible plug) |
| Dimension | Length mm | 1400 | 1500 | 1650 | 1850 | 1850 | 2000 | 2100 | 2360 | 2360 | 2500 | 2600 | 2600 | 3100 |
| Width mm | 900 | 1000 | 1000 | 1000 | 1100 | 1100 | 1100 | 1100 | 1200 | 1200 | 1200 | 1250 | 1500 |
| Height mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1550 | 1800 |
| Weight | ~1100 | ~1200 | ~1400 | ~1600 | ~1700 | ~1800 | ~2000 | ~2500 | ~2700 | ~2900 | ~3500 | ~3500 | ~5000 |
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
