| Prod Model: |
MA-709 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Response: |
20Hz-20kHz(+-0.3db) |
| System Sensitivity: |
0.775V/1.0V/1.44V |
| Thd: |
<0.08% |
| Transisitor: |
Original American on Semi |
| Certification: |
CE,CCC,RoHS,FCC |
| Type: |
Professional Amplifier |
| Function: |
Post Amplifier |
| Usage: |
KTV System |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Conductive Mode: |
Classh+ |
| Sound Channel: |
2.0 |
Product Description

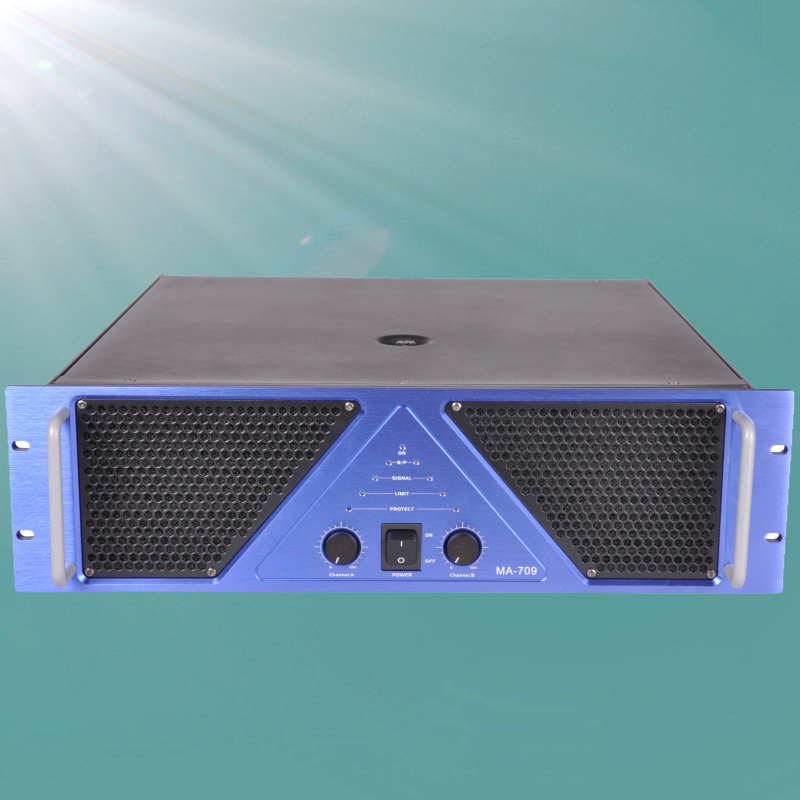

MA-709 3U 900w professional high power subwoofer amplifier
Feature:
1)Soft start
2)Silent boot
3)DC prodection, over load protection, short cuirt protection.
4)Input indepence is 20Kohm(Stereo mode) and 10Kohm(Parallet mode)
5)Application type is Class AB, we also have Class H.
6)The amplifier can gained to 26db, 29db, 32db, 35db and 38db.
4)XLR connect, every connector has two parallel connection connector.
Singal: 1. Yellow to pint Bridging or parallet indicator light(B/P)
2. Blue to point to amplifier is on work.
3. Green to point the amplifier is work normal.
4. Red to point the amplifier is on the protection condition.
5)Yellow(Limit) to point the singal has been clipped.
Size is 49W*13H*50Gcm Or 49W*8H*40cm
Net weight is 18Kg.
We have 450W, 600W, 800W, 900W, 1000W, 1100W, 1300W of the same series.or has two parallel connection connector.
| Model | MA-713 | MA-711 | MA-709 |
| power(8ohm) | 1300W | 1100W | 900W |
| power(4ohm) | 2000W | 1650W | 1400W |
| frequency response | 20Hz-20KHz(+0,-0.3dB) |
| signal to noise | 95dB |
| channel isolation | ≥70dB(1KHz) |
| THD | ≤0.8% |
| input impendance | 20Kohm(stereo mode),10Kohm(parallel mode) |
| supply power | 6000w | 5000W | 4000W |
| conversion rate | ≥10V/us(8ohm,10KHz) |
| the gain selection | 26dB/29dB/32dB/35dB/38dB/41dB/44dB |
| net weight | 32kg | 32kg | 31kg |
| size | 483W*502D*132H |
| package size | 590W*545D*190H |
Our advantage:
1)our product have passed ISO9001,SGS,CE, CCC, FCC, ROHS, CE-LVD.
2)we are a factory which will provide reasonable price,high quality product and professional service.
3)we have 66 workers with 4 rich experienced engineers for speaker and amplifier.
4) fast delivery and excellent aftersale service
About Acessories:
We will send you the enough connectors and some other spare parts for you free.
Packaging:
1)Dual carton with Foam
2)Carton with external plywood bracket for Speaker
About our company
Established in 2005,Guangzhou Yunqiang Electronic Co.ltd specializes in R&D,design,production and marketing of professional speaker,professional power amplifiers,karaoke speakers and amplifier etc.Backed by high technology and staffed with a professional R&D team and QC team,the factory introduces some advanced electronic testing equipments from Japan,taiwan,ect.Combined with advanced processing lines.Exported to the Asia,Middle East,Europe,Amercia,Africa,etc.Our products enjoy high reputation and meet the demand of the market with the high quality and reasonable price.
Our Main product:
Professional speaker,Line array speaker,subwoofer,professional amplifier,karaoke speaker,karaoke amplifier,Pre-amplifier.
Our location:
Our factory located in Longhu village,Shijing Road,Baiyun district,Guangzhou city,Guangdong Province,China.
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
2016 Prolight + Sound Guangzhou
Our booth is A70 4.1.
Address: Area A, China Import & Export Fair Complex. No. 380, Yuejiang Zhong Road, Guangzhou, China.
Time is 29 February~3th, March, 2016
