Shenzhen Vcomsky Technology Co., Ltd. >> Logistics Vehicle Security System ----Mobile DVR

Logistics Vehicle Security System ----Mobile DVR

Logistics Vehicle Security System ----Mobile DVR
Price: US $ 120-320/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Money Gram,Western Union
Prod Model: VC-MDRS8000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation System: Linux
Gui: Setup System Parameters with Remote Controller
Security Management: Support User Password, Supervisor Password Managem
Video Input/Output: 4-Channel Video Input, 1-Channel Video Output; 1.0
OSD: Time & Date, Vehicle ID, GPS etc
Compression: H.264. Hi-Silicon High Performance Processor Is Ap
Video Resolution: CIF, HD1, D1, 4D1 Adaptive
File Format/System: Asf/ Fat32
Recording Search: Search Recording Video Files by Time, Type, Storag
Functional Alarm: Over-Speed Alarm, G-Sensor Alarm, Voltage Alarm, S
Compression Format: H.264
Interface: BNC

Product Description

Descriptions

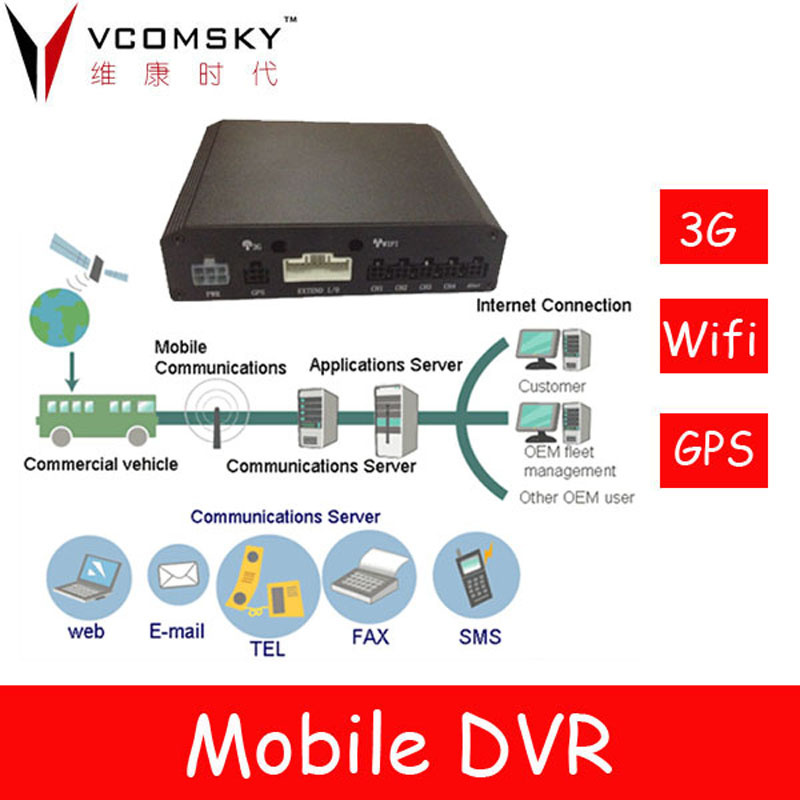

VC-MDRS8000 Series is a high level SD card mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, and applies various advanced technologies in IT field, such as A/V codec, high capacity SD card storage, network streaming media, A/V noise reduction, wide range voltage design.


Key Features


Industrial level design;
Advanced audio/video compression technology;
4-channel video input, 4ch audio input;
ASF standard file format;
Built in G-sensor module;
3G, GPS, Wi-Fi modules for optional;
Local and remote PTZ control;
Data redundant storage technology;
Patent UPS power-off protection design;
Fast startup;
Optional function: Bi-directional voice communication, telephone dialing, disk pre-heating;
Central management software provided for optional;
Support intercom function;
Remote control;
Remote download;
3G WIFI switch automatically;
Support 6ch I/O alarm, over speed alarm, g-sensor alarm, video lose alarm, motion detection alarm;
Support broadcast voice;
Support LED control;
Support max 64G SD card.



Application
Bus, School bus, Logistics vehicle, Taxi, Police car, Special purpose vehicle, Train/metro, Ship/boat
Specifications
Item Description
Operation system Linux
GUI Setup system parameters with remote controller
Security management Support user password, supervisor password management; support encryption transmission
Video Video input/output 4-channel video input, 1-channel video output; 1.0Vp-p, 75Ω
Dual stream Support
OSD Time & date, vehicle ID, GPS etc
Compression  H.264. Hi-silicon high performance processor is applied.
Preview function Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function
Video frame rate PAL: 100 frame/sec, up to 25 frame/sec for single channel
NTSC: 120 frame/sec, up to 30 frame/sec for single channel

Video resolution CIF, HD1, D1, 4D1 adaptive
Video quality Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest
Video Bit Rate CIF: 256Kbps ~ 1.5 Mbps, 5 levels of bit rate optional
HD1: 600Kbps ~ 2 Mbps, 5 levels of bit rate optional
D1: 800Kbps ~ 3Mbps, 5 levels of bit rate optional
4D1: 800Kbps ~ 1.5Mbps, 5 levels of bit rate optional

Audio Audio input/output 4-channel input; 1-channel output
Compression G.726
Recording Storage media Support SD card with 64G maximum capacity
File format/system ASF/ FAT32
Recording mode Startup recording by default, support auto, timed, alarm & manual recording
Recording search Search recording video files by time, type, storage device, etc.
Recording playback Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time
Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time
Alarm Alarm input 6-channel I/O  alarm input
Alarm recording Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min
Alarm output 1-channel alarm output
Storage space Support the setting of remain storage space alarm function
Functional alarm Over-speed alarm, g-sensor alarm, voltage alarm, snapshot  alarm, motion detection alarm
Communication interface RS232, RJ45 10M/100M self-adaption Ethernet interface
Wireless transmission (optional) Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional;
GPS (optional) Support external GPS module
Data remote transmission Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download;
PTZ control Support PTZ control function by local remote controller or client software;
Parameter configuration Support parameter configuration
G-sensor Built-in
System upgrade Support SD card / Remote upgrade
Power supply & consumption Power supply management ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown
Input voltage DC:+8V ~ +36V
Output voltage +12V@4*0.5A;[email protected]
Power-off protection Patent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs
Power consumption Less than 10W in normal working state; less than 0.5W in standby mode
Working environment Temperature Normal:-20°C~ +60°C
Hard disk pre-heating: -25°C~ +60°C

Humidity 10% to 95%
Dimension 142(W) x36(H) x123(D) mm.
Weight Net weight:550g, gross weight:1000g

Company Overview
Shenzhen Vcomsky Technology Co., Ltd., simple named Vcomsky, is a high-tech enterprise engaged in researching, developing, manufacturing and marketing mobile security products and IP camera products. Founded in 1998, the company is now located in Nanshan district, the economic center of Shenzhen, and run by a strong team of R&D, sales and administration, it's manufacturer located in Longgan district. Ever since it's foundation, Vcomsky has achieved great success in developing high anti-vibration mobile dvrs, high-pixel cameras, and a series of HD IP cameras. with cutting-edge technology and advanced manufacturing facilities, we have become one of the largest suppliers of car security products in China!

The pursuit of quality
Vcomsky emphasizes the advanced enterprise management and regards quality as our lifeline. with thorough quality management system and advanced quality testing equipments, we can conduct various comprehensive performance testing to our products, such as "Low and High Temperature Test" "Vibration Test" "Salt Spray Test" "Swing Test" "Waterproof Test" and "Aging Test" etc^ And also we strictly follow the quality control process to grantee the products' stability.

Vcomsky has been certificated with the highest international level of quality management system in auto industry_ISO/TS16949: 2009, and also we are in strict accordance with the EU RoHS standard during manufacturing. Meanwhile, a variety of our products have reached the highest waterproof rating of IP69K, and approved with CE, FCC, EMARK etc.

Premium service
Premium service is the foundation to win trust from customers, so Vcomsky provides professional OEM and ODM services to meet various needs of customers. And also, with the belief of "Growing with customers" and "Customer oriented", we dedicate to manufacturing the best products and offering the most satisfying service, even exceeding the expectation of customers to realize mutual benefits.

Excellence and leading
Vcomsky had formed a professional R&D team since its inception. All the way, we have persistently invested new technologies, developed new products, and launched a series of powerful and innovative products to meet the market's demand.

In terms of mobile security products, mobile dvrs with multi-language operation, multi-channel video input, multi-style, multi-function selection, wide voltage input, and supply power to the cameras. The universal shock for mobile hard disk dvrs is very useful. Mobile cameras with wide viewing angle, night vision capabilities, attractive appearance, mini size etc. Our mobile security products apply to various kinds of vehicle, such as trucks, buses, ambulances, garbage trucks, fire engines, agricultural vehicles, concrete mixer lorries, excavators, forklifts, road sweepers, cranes and etc. Relying on quality and outstanding styles, Vcomsky products are exported to many developed countries, such as United States, Britain, Germany, Japan and France. We have established long-term mutually beneficial partnership with many world famous enterprises.
In terms of HD IP cameras products, We have developed full series of IP cameras products, include; HD IPCAM, 3G IPCAM, SD IPCAM, and video management software. We own all source code of our products and can provide professional OEM and ODM customize service for global customer. We can print your logo or brandname on our products, even design the housing and package of products for you!

Humanity Harmony
Vcomsky adheres to the belief of People-oriented, so we provide competitive salary and welfare, equal opportunities of development, harmonious and comfortable working environment. These give employees a sense of stability, satisfaction, achievement and belonging, which in turn lays a solid foundation for our long-run development.

Vcomsky will always stand ready to cooperate with you. Let's grow together!
