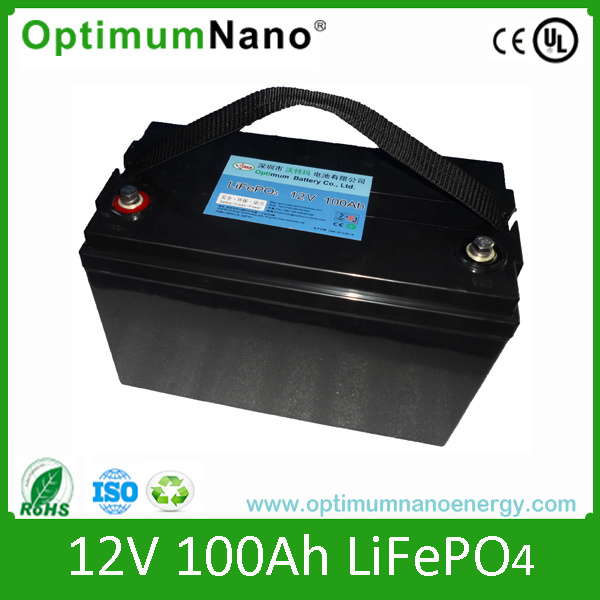

Lithium Batteries for Solar Systems 12V

Name: Lithium Batteries for Solar Systems 12V
Brand: ec-portal.com
SKU: 716862225
Availability: InStock
Rating: 5 (31 reviews)

Price:	US $ 20-1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	OPT-12000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	12V
Max Charge Voltage:	14.6V
Cut-off Voltage:	10V
Standard Charge Current:	0.2c
Standard Discharge Current:	0.5c
Certificates:	CE,UL,RoHS,BV,SGS,ISO9001,Ts16949
Maintenance Type:	Free
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Size:	Customized
Rated Capacity:	5ah-400ah
Standard Voltage:	12V
Usage:	Solar Battery
Electrolyte:	LiFePO4

Product Description

Lithium batteries for solar systems 12V

Basic specification:
1)Rated voltage: 12V
2)Rated capacity: 5-400Ah
3)Standard charge current: 0.2C
4)Standarad discharge current: 0.5C
5)Max charge voltage: 14.6V
6)Cut off voltage: 10V
7)PCM discharge current protection: 100A
8)BMS function: Protectation of short circuit, overcharge and overdischarge, high temp

Characteristic:
1. Superior quality, high energy density, specific power is 2400W/kg;
2. Light, small; Lighter 60% than lead acid battery with the same size;
3. High stability and safey; Stable material and reasonable structure design of Optimum batteries ensure batteries not to burn and explode;
4. Superior performance of deep discharge, and charging and discharging with big rate; Instant discharge current is big, start performance at high and low temperature is good; Usable capacity is big, up to 99%, but traditional lead acid start-up batteries is 50%-60% in general.
5. Have active no-loss balance function, able to effectively control rising temperature.
6. High and low temperature performance is good: Work normally in -30 degree- 6 surroundings, no influence over its life and performance
7. Cycle times can be up to 2, 000, keeping 5-year life, with design of special protection function;
8. Good battery conformity, mature technics;
9. Competitive price and superior quality, highest cost-effective in lithium power batteries.
10. Green and environment-friendly: Main composition of LiFePO4 can be used as soil fertilizer after breaking up, high performance and no pollution.

Optimum LiFePO4 Battery/Lithium Battery Pack (12V 5Ah---400Ah)
5/10/20/25/30/40/50/60/80/100/120/150/200/300/400Ah
Item No.	OPT12005	OPT12010	OPT12020	OPT12025	OPT12030	OPT12040	OPT12050	OPT12060
Standard Capacity	5Ah	10Ah	20Ah	25Ah	30Ah	40Ah	50Ah	60Ah
Rated Voltage	12.8V
Discharge Cut-off Voltage	10.0V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	≤ 3% after one month
Life Cycles	80% stay after 2000 times (with 1C constant charge and discharge deep cycle)
Max Charger Voltage	DC14.6V
Standard Charge Current	0.2C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage Protection
Product Size(mm)	1515193	1358585	18276167	18475135	118175175	190165175	190165175	350168179
Approx N.W	0.9Kg	1.3Kg	2.8Kg	3.5Kg	4.0Kg	5.5Kg	7.0Kg	8.0Kg
	OPT12080	OPT12100	OPT12120	OPT12150	OPT12200	OPT12200	OPT12300	OPT12400
Standard Capacity	80Ah	100Ah	120Ah	150Ah	200Ah	200Ah	300Ah	400Ah
Product Size(mm) (changeable)	260170215	330170220	339173212	502262242	502262242	360220262	502262242	560360200
Approx N.W	11Kg	16Kg	19Kg	24Kg	35Kg	38Kg	45Kg	65Kg

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
