| Prod Model: |
LS-AD3-0.768mx1.248m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
1200nits |
| LED Display Area: |
768X1248mm |
| Frame Size: |
810X1322X45mm |
| LED Area: |
0.958sq. M |
| Panel Weight: |
48kg |
| Out Frame Cover: |
Acryl Panel |
| Panel Material: |
Epoxy Paint Coated Aluminum |
| Panel Protection: |
IP65/43 |
| Service Access: |
Back Service |
| Resolution Per Panel: |
256X416 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
RoHS |
| Pixel Pitch: |
3mm |
| Pixel Configuration: |
3in1 SMD |
| Pixel Density: |
111,111dots/M2 |
| IP Rating: |
IP56 |
Product Description

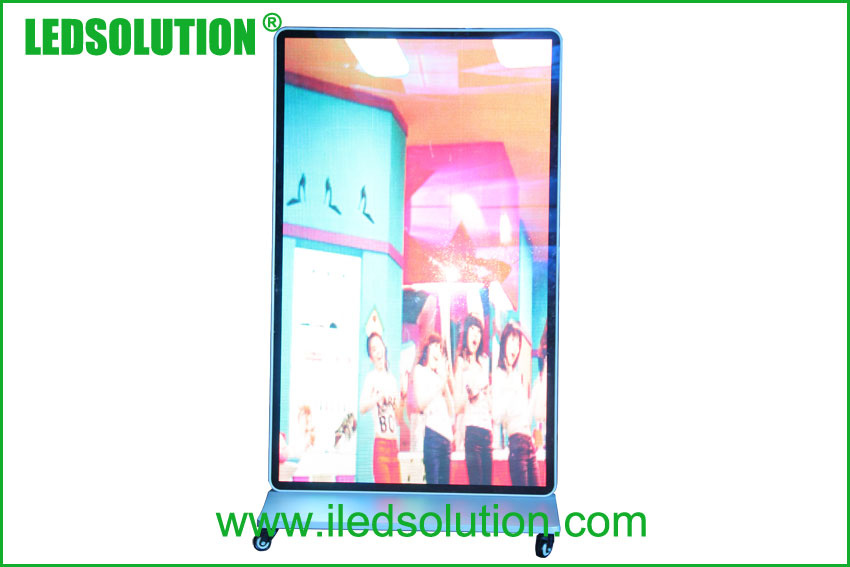

LEDSolution P3 Indoor LED Poster Display
Feature:
Application: Indoor advertising;
Movable design;
Thin cabinet depth only 45mm;
Resolution 256x416pixel;
IP65/43;
Communication:3G or Wifi;
Android APP to control the advertising;
| Parameter | Value |
| Pitch | 3mm |
| Brightness | 1200nits |
| Color temperature | 6500 K |
| Viewing angle - Horizontal (50% brightness) | 140(-70 ~ +70) deg. |
| Viewing angle - Vertical (50% brightness) | 140(-70 ~ +70) deg. |
| Panel weight | 48kg |
| LED display area | 768x1248mm |
| Frame size | (W) 810 x (H) 1322 x (D) 45mm |
| Out frame Cover | Acryl panel |
| LED area | 0.958 sq. m. |
| Panel material | Epoxy paint coated aluminum |
| Panel protection | IP65/43 |
| Service access | Back service |
| Operating temperature range | -30 to +60 deg. C |
| Humidity operating | RH 10% ~ 90% |
| Pixel type and configuration | Indoor 3in1 SMD |
| Resolution per panel | 256x416 |
| Dot per panel | 106496 |
| Dot per sq. meter | 111111 |
| LED per sq. meter | 111111 |
| Recommended minimum viewing distance | 2.2m |
| Recommended best viewing distance | 3~30m |
| Colors | 281 trillion |
| Grey scale (linear) | 65,536 levels per color |
| Brightness control | 100 |
| Contrast ratio | 1,000:1 |
| Processing depth | 16 |
| Video frame rate | 60 |
| Display refresh rate | 600 |
| Input voltage (nominal) | 110 to 240 |
| Input power frequency | 50 to 60 |
| Input power (max) | 1200 |
| Input power (typical) | 480 |
| Lifetime (50% brightness) | ≥100,000 |
| Red wavelength (dominant) | 620~625 |
| Green wavelength (dominant) | 520~525 |
| Blue wavelength (dominant) | 470~475 |
| Control system | Full color asynchronous |
| Data interconnection | 3G/Wifi |
| Software | PC software or Android Phone |
| Mounting system | Stand on ground |
