| Prod Model: |
Rio-42kiosk |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
42 Inch |
| LCD Brand: |
LG |
| External Size: |
1806*644*80mm |
| Screen Size: |
40-50 Inches |
| Aspect Ratio: |
16:9 |
| Screen Type: |
Infrared |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
| Application: |
for Hotel and Shooping Mall Exhibition |
Product Description

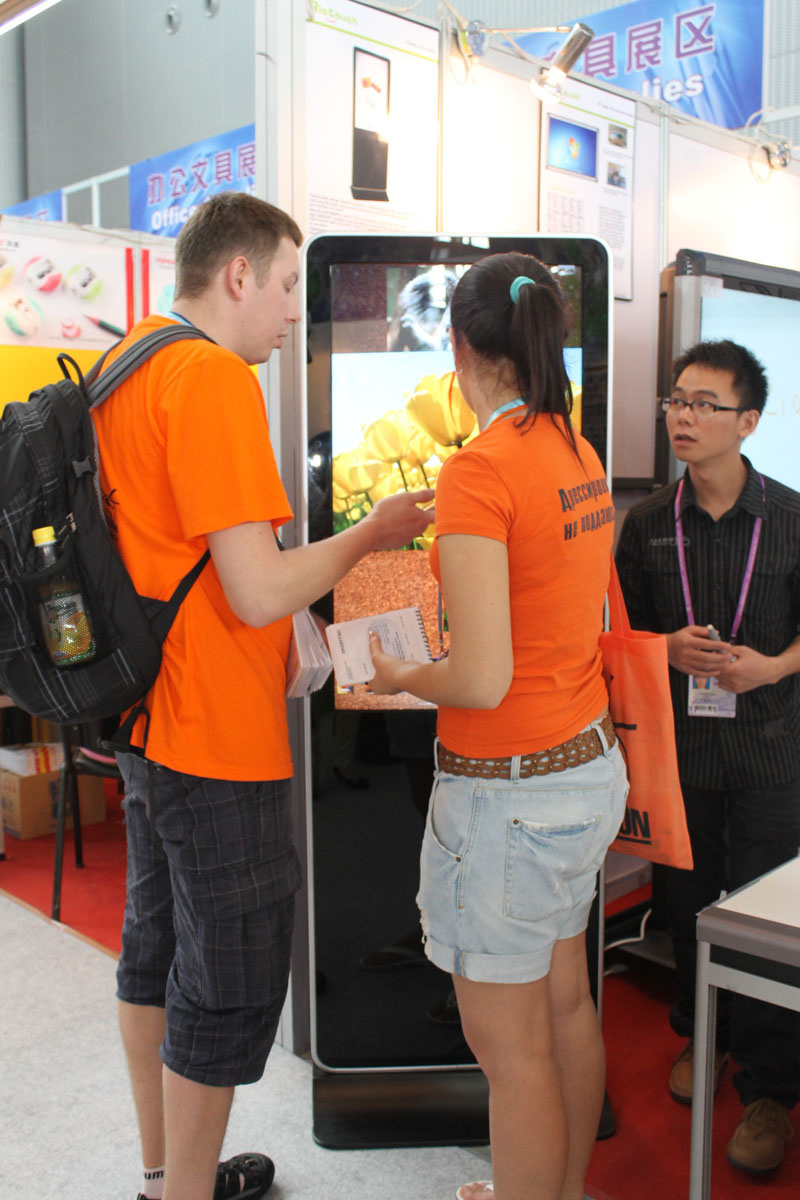

LED touch screen with 10 touch point kiosk for school to show news
With the time goes by,we can saw the touch kiosk everywhere.When you go to a hotel you will find it used for a map.When you go to a shopping mall,you can find many beautiful cloth are show on it.
Yeah,Its widely used for advertisement use.
Application
best sell for 42 inch touch kiosk for shopping mall to publish advertise
Marketplace ( for mall shops to publish advertise )
Building (for building and companies publish advertise.)
Station (for people to find their right direction.)
School (for school clubs to publish advertisement, forecast latest activities and live shows )
Hall, Show room, Lift.
And more.
| Model | Rio-KI42 |
| LCD Parameters | Size | 42" |
| LCD Brand | LG |
| Packing Parameters | External Size | 1804*644*80mm(without base) |
| Touch Size | 929*522mm |
| Plywood Carton Size | 1990*930*330mm |
| Net Weight | 68kg |
| Gross Weight | 99kg |
| Power Parameters | Power | < 200W |
| Standby Power | <1W |
| Display Parameters | Active Display Area | 1209.6(h)x680.4(v)mm |
| Pixel Pitch | 0.630(h)x0.630(v)mm |
| Display Colors | 16.7M/1.06B (8-bit/8-bit +FRC) |
| Number of Pixels | 1920x1080 pixels |
| Brightness | 400cd/m2 |
| Viewing Angle | 178 Degree |
| TV Parameters | TV Standard | NTSC M/N,PAL BG/DK/I/H,SECAM L/L |
| Multimedia Formats | MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG |
| USB2.0 Multimedia Playback | Vido/Audio/Picture |
| USB System Upgrading Online | Support USB online upgrading function |
| Resolution | Max. 1080P format |
| HDMI | V1.4, 720P/1080P |
| Scanning Format | Support 1080i Video crisscross DAS (Dynamic Adaptive Scan ) |
| Sound Control | Automatic sound standard detection, support for balance adjustment and surround Sound |
| Sound Output | 2X10W |
Input and
output ports | USB Multimedia Input ports | 1-line |
| Touchscreen port | 1-line USB2.0 |
| HDMI Input port | 2-line (HDMI1 keep for Inside OPS) |
| VGA Input port | 1-line |
| PC Audio port | 1-line |
| Earphone Out | 1-line |
| Component Audio In | 1-line |
| RF Input port | 3-line |
| AV Input Output port | 1-line |
| Standard Intel OPS Input and Output | USB Multimedia Input ports | 2-line USB3.0 |
| Touchscreen port | 1-line (Inside) |
| HDMI Input port | 1-line |
| VGA Input port | 1-line |
| Audio port | 1-line |
| MIC Input | 1-line |
| IR Infrared Port | 1-line |
| RJ45 LAN | 1-line |
Touch
parameters | Touch Technology | Infrared touch technology |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger,pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 4096*4096 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:first dot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux |
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Antilight interference function | can work properly in direct sunlight condition |
Standard configuration | Interactive all-in-one touch monitor | 1set |
| Remote Control | TV Remote control |
| USB cable | 1.5m USB cable for touch monitor, USB2.0 |
| VGA cable | 1.5m VGA cable |
| Audio cable | 1.5m audio cable |
| CD | 1 pcs |
| Pens without ink | 2 pcs |
| User manul | 1 pcs |
| Optional Configuration | PC (Optional) |
| | Version 1(Standard PC) |
| Motherboard | Intel NM70 |
| CPU | Intel 1037U 1.80GHz |
| RAM | DDR II 2G |
| Hard Disk | 500G |
| | Version 2 (Medium configuration PC) |
| Motherboard | Intel Hm76 |
| CPU | Intel I3 |
| RAM | DDR II 4G |
| Hard Disk | 500G |
| | Version 3 (High configuration PC) |
| Motherboard | Intel H81 |
| CPU | Intel i5 |
| RAM | DDR II 4G |
| Hard Disk | 500G |
| Wireless Mouse | Optional |
| Install Accessories |
| Wall brackets | Optional |
