| Prod Model: |
Hv 65k |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Touch Points: |
2 10 Points Touch |
| LED Panel Brand: |
Sharp, Cmo, Llg, Auo |
| LED Resolution: |
1080P |
| Whiteboard Touch Technology: |
Infrared |
| PC Connection: |
International OPS Mini P |
| Touch Frame Warranty: |
3 Years |
| Software: |
Education Software for Free |
| Support System: |
Win7, Win8, Linux, Mac |
| Usage: |
School, Office, Computer, Digital Whiteboad |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Screen Size: |
>60 Inches |
| Aspect Ratio: |
4:3 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
OEM Is Available |
Product Description

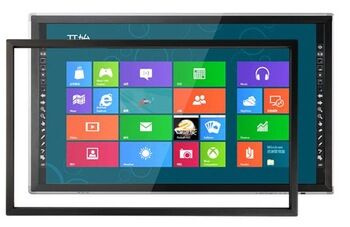

65 inch led touch screen with pc monitor floor stand
Brief description:
1. IR technology is more stable.
2. finger or pen or any opaque object can touch, no need special pen
3. Widely size : 47'',55'',65'',70'',84''
4. Multi-touch :2/10/30 Touch Point.
5. OEM service and free teaching software
6. 3 years warranty of touching frame give you zero risk and more profit.
7. Open frame and build-in line, easy repair and more safety.
9. Certification: CE, FCC, ROHS,ISO
Specification:
| LCD Parameters | Size | 64.5" |
| LCD Brand | AUO |
| Packing Parameters | External Size | 1558*928*95.9mm |
| Touch Size | 1428.5*803.5mm |
| Plywood Carton Size | 1690*270*1180mm |
| Net Weight | 63KG (without wall-mounted) |
| Gross Weight | 80KG |
| Carton Size with wooden box | 1750*330*1300 +/- 50mm |
| Gross Weight with wooden box | 115kg |
| Power Parameters | Power | < 250W |
| Standby Power | <1W |
| Display Parameters | Active Display Area | 1428.48 (H) x 803.52 (V)mm |
| Pixel Pitch | 0.744mm |
| Display Colors | 1.07 billion colors |
| Number of Pixels | 1920x1080 pixels |
| Brightness | 360cd/m2 |
| Viewing Angle | 178 Degree |
| TV Parameters | TV Standard | NTSC M/N,PAL BG/DK/I/H,SECAM L/L |
| Multimedia Formats | MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG |
| USB2.0 Multimedia Playback | Vido/Audio/Picture |
| USB System Upgrading Online | Support USB online upgrading function |
| Resolution | Max. 1080P format |
| HDMI | V1.3, 720P/1080P |
| HDCP | V1.1 |
| Scanning Format | Support 1080i Video crisscross DAS (Dynamic Adaptive Scan ) |
| Sound Control | Automatic sound standard detection, support for balance adjustment and surround Sound |
| Sound Output | 2X10W |
Input and
output ports | USB Multimedia Input ports | 2-line |
| Touchscreen port | 1-line USB2.0 |
| HDMI Input port | 2-line (HDMI1 keep for Inside OPS) |
| VGA Input port | 1-line |
| PC Audio port | 1-line |
| UPBRP audio and video input port | 2-line |
| AV Input port | 2-line |
Touch
parameters | Touch Technology | Infrared touch technology |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger,pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 32767*32767 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:first dot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux |
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Antilight interference function | can work properly in direct sunlight condition |
