| Prod Model: |
LN-ZJFJ-3CH-LV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Amplifier: |
Power |
| Task: |
Program |
| Structure: |
Combination |
| Signal: |
Discrete |
| Mathematical Model: |
Non-Linear |
Product Description
Summarization

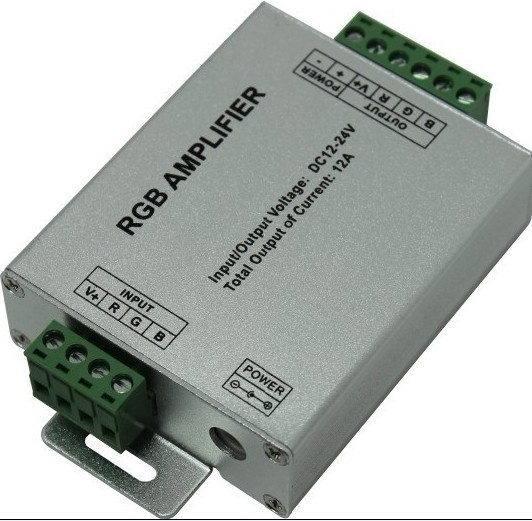

RGB amplifier applies to all the voltage-controlled LED controller in our company, it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number of LED will be more than twice, in theory, numerous RGB amplifiers can be connected.
Technical parameters
Working temperature: -20-60
Supply voltage: DC5V, 12V, 24V optional(Specify the required voltage on order form)
Output: 3 channels
Connection mode: Common anode
External dimension: L114*W65*H25mm
Packing size: L122*W85*H42mm
Net weight: 110g
Gross weight: 135g
Static power consumption: <1W
Output current: <4A(each channel)
Output power: 5V: <60W, 12V: <144W, 24V: <288W
