| Prod Model: |
AP200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
DC12-24V |
| Max. Output Current: |
3*8A |
| Input Signal: |
PWM Dimming Signal |
| Protection Grade: |
IP33 |
| Task: |
Adjust |
| Structure: |
Combination |
| Signal: |
Discrete |
| Mathematical Model: |
Non-Linear |
Product Description

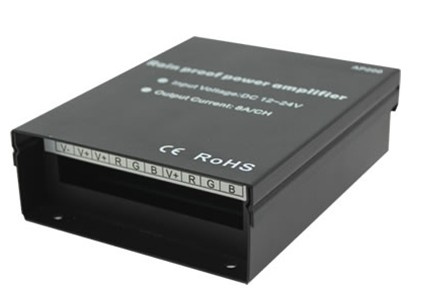

Rainproof power amplifier
Summarization
Rainproof power amplifier is one type of waterproof outdoor product in our company, suit for PWM control LED controller, it can amplify the power of LED controller, each time add one amplifier, the connecting number of LED will be more than twice to three times, and can cascade, in theory, numerous amplifiers can be connected. It is convenience for different voltage, high power and small power LED lamps and lanterns unified control. Whether our company's products or any other company's products, as long as it is PWM control, voltage appropriate, all can use this series power amplifier. Using high speed light lotus root design, can achieve very low delay time, to ensure that when many sets of cascade, it can keep pace with host.
Technical parameters
Working temperature: -20-60
Working voltage: DC12V-24V
Signal voltage: DC12V-24V
Input signal: PWM dimming signal
Dimming range: 0.1%-100%
Net weight: 456g
Gross weight: 501g
External dimension: L136mm * W105mm * H45mm
Packing size: L142 * W118 * H50 mm
Connect terminal: Barrier type terminal, screw connect mode, terminal caliber 7mm
Connect mode: Common anode
Max. Output current: 3*8A
Output power: 12V: <288W, 24V: <576W
Protection grade: IP33
