| Prod Model: |
SY-OF12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Configuration: |
2R,1G,1B |
| Pixel Pitch: |
12mm |
| Pixel Density: |
6944 dot / m² |
| IP Rating: |
IP65 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Average Power Consumption: |
600W / m² |
| Certification: |
CE |
Product Description

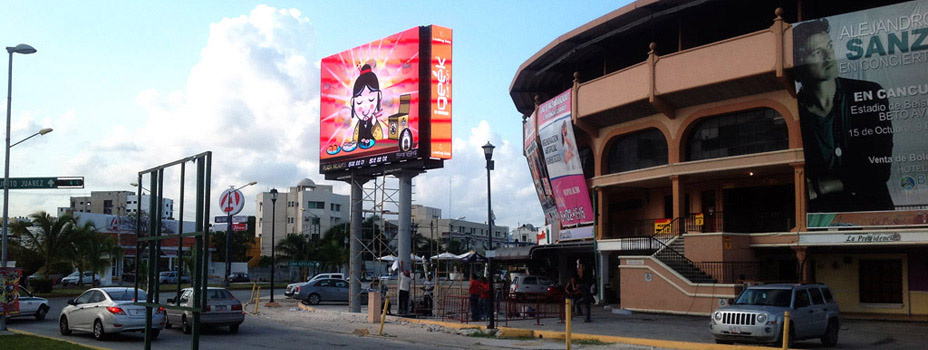

LED outdoor display/ full color display/LED display/LED full color sign/LED full color display/LED signs/LED TV (SY-OF12)
No. Type Tri-Color
1 Pixel Configuration: 2R+1G+1B
2 Cabinet Resolution: 48pixels(H)× 64pixels(W)
3 Cabinet Dimension: 576mm (H)× 768mm (W)× 160mm (L)
4 Power Consumption(average): 770W/ m2
5 Power Consumption(max): 1100 w/ m2
6 Cabinet Weight: 30 kg
7 Density: 6944pixels/m2
8 Brightness: >6000 nits
9 Color: 68 Billions
10 Brightness Control: Hand/auto regulation
11 Viewing Distance: 10-100m
12 Gray Scale Rectification: R rectification
13 Picture Regulation: Contrast/Chroma regulation/Module brightness regulation
14 Drive Mode: 1/2 duty
15 Refresh Rate: 600 Hz
16 Control Mode: Synchronization control
17 Video Interface: S-Video, RGB, VGA, DVI etc.
18 Display Mode: 1024× 768
19 Life Time: 100, 000 hours
20 Mean Time To Failure: >10, 000 hours
21 Blind LED: None
22 Temperature: -40 degree~+85 degree
23 Relative Humidity: 10%-95%RH
24 Display Flatness: The display: ± 1mm Gap between modules: 1mm
25 Display Information: Text, Video and Picture etc.
26 Voltage: 220V± 10%, 380V± 10%
27 Communication Distance: <20km
